Automatic Transaxle System
>>
Automatic Transaxle System
>>
Inspection Chart For Trouble Symptoms
>>
Inspection Procedure 15
Inspection Procedure 15

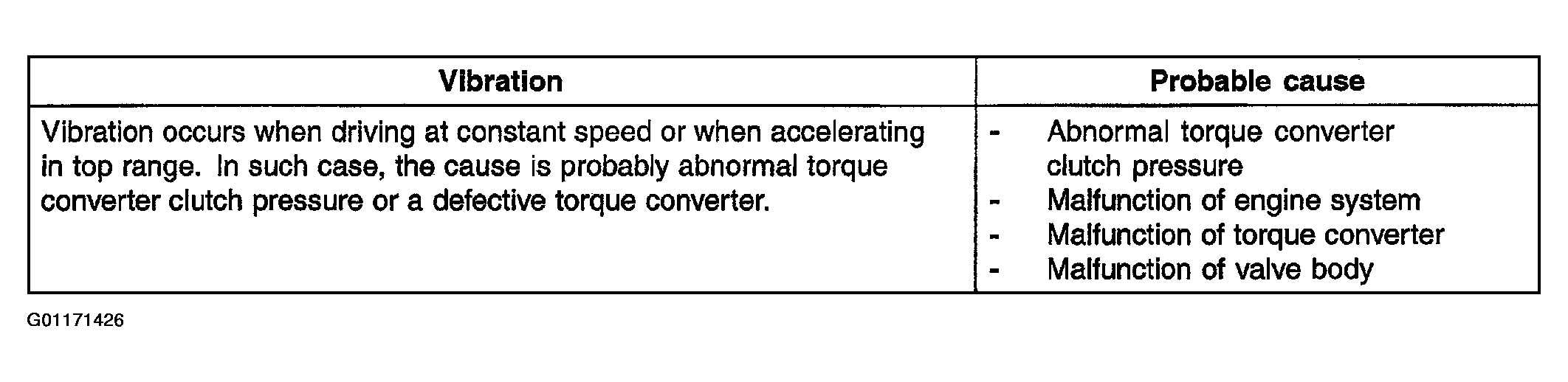

Fig 1: Probable Cause - Vibration
Courtesy of HYUNDAI MOTOR CO.

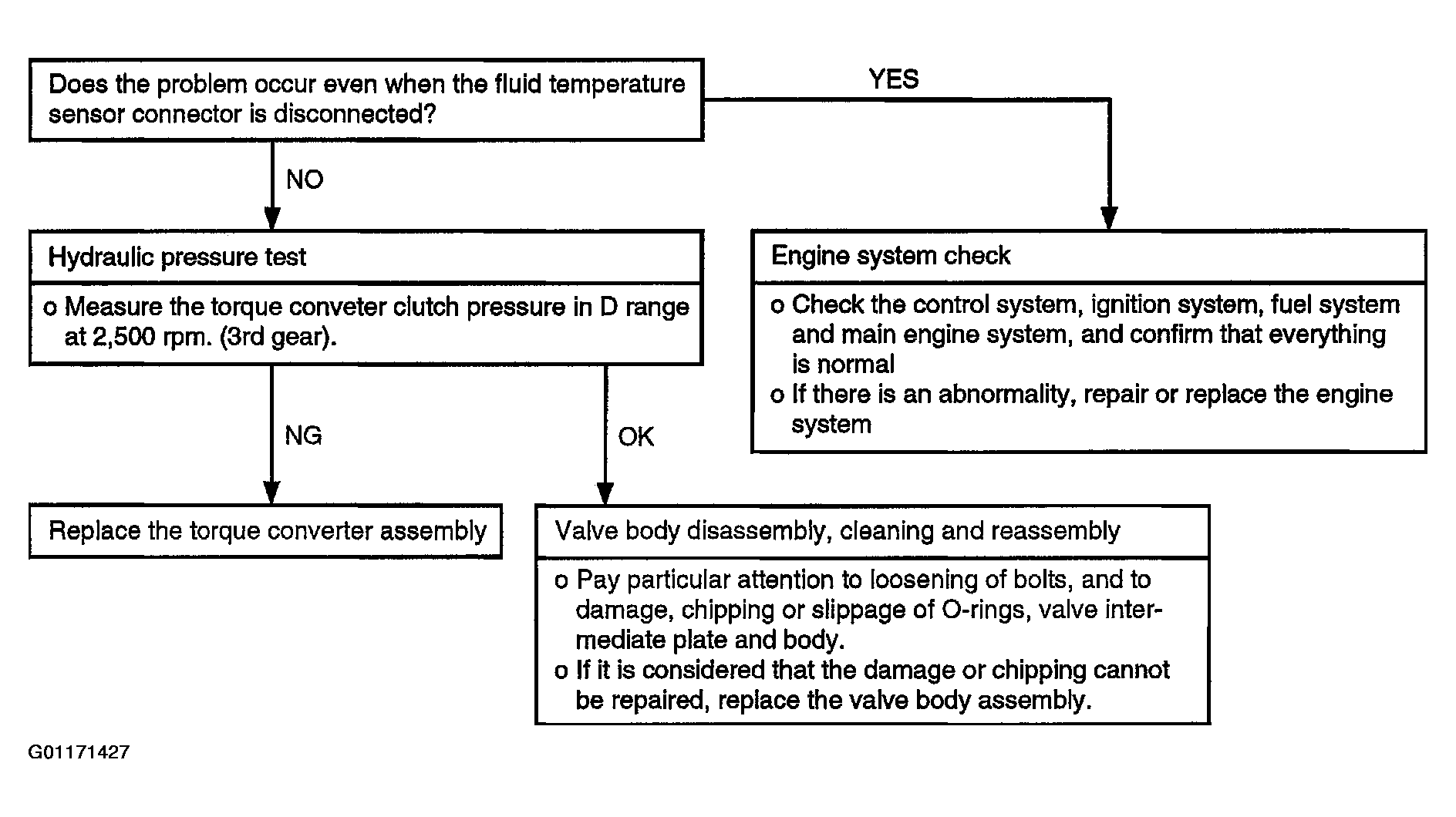

Fig 2: Troubleshooting Flow - Vibration
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
