Transmission
>>
Automatic Trans
>>
Automatic Transaxle System
>>
Automatic Transaxle System
>>
Inspection Chart For Trouble Symptoms
>>
Inspection Procedure 14
Inspection Procedure 14

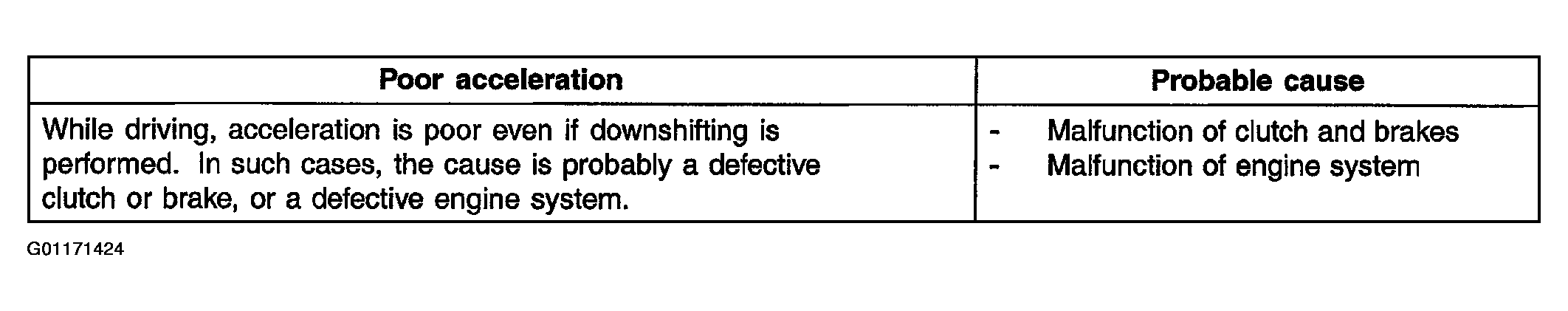

Fig 1: Probable Cause - Poor Acceleration
Courtesy of HYUNDAI MOTOR CO.

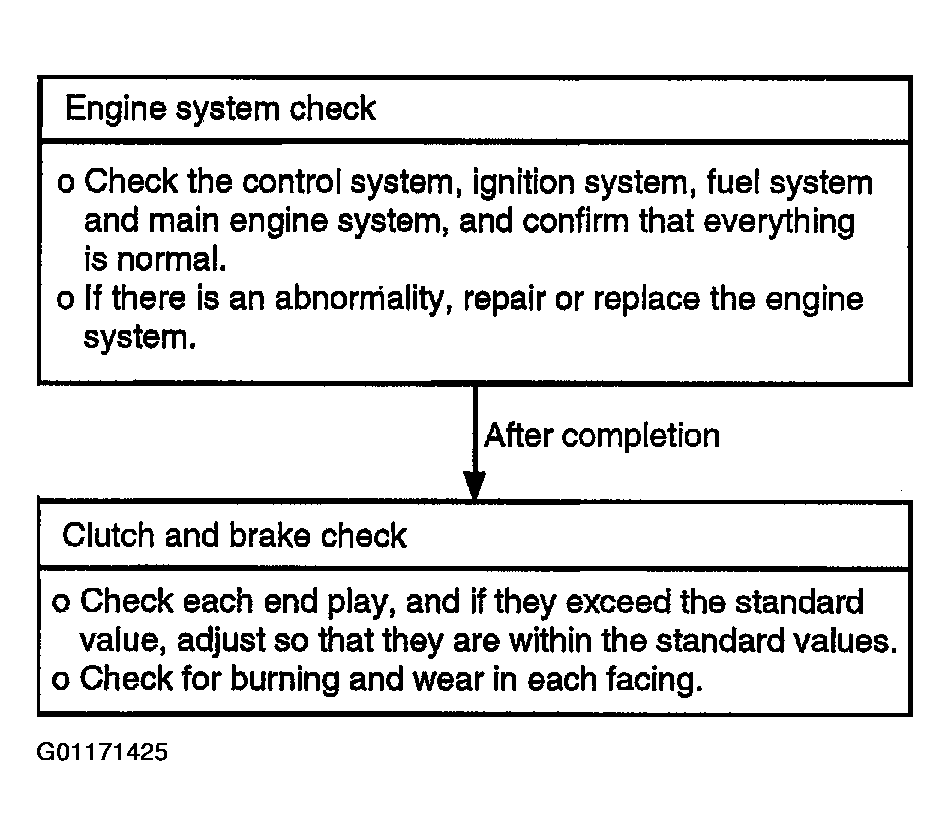

Fig 2: Troubleshooting Flow - Poor Acceleration
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
