Jacking & Hoisting: Hoist

CAUTION: Follow hoist manufacturer's instructions. DO NOT allow hoist or adapters to contact suspension, exhaust or steering components.

Place adapters at 4 contact points. See Fig 1 or Fig 2 . Position adapters so they are centered on contact area. Ensure all 4 contact points contact adapters.

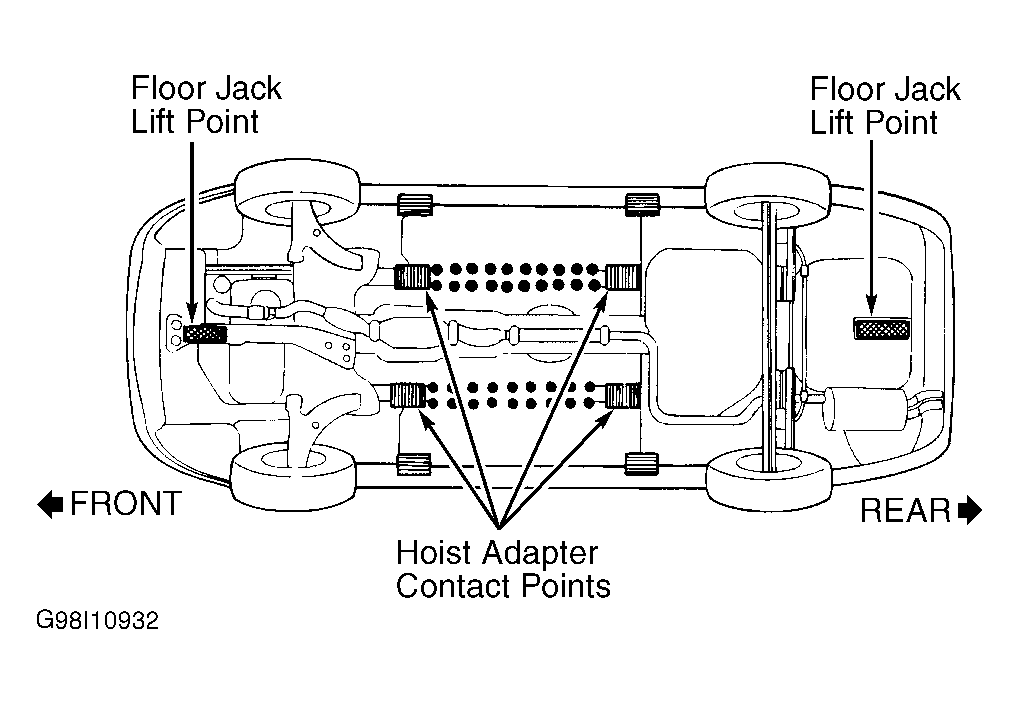

Fig 1: Lifting Points (Accent)

Courtesy of HYUNDAI MOTOR CO.

Fig 2: Lifting Points (Except Accent)

Courtesy of HYUNDAI MOTOR CO.
