Strut Assembly: Disassembly

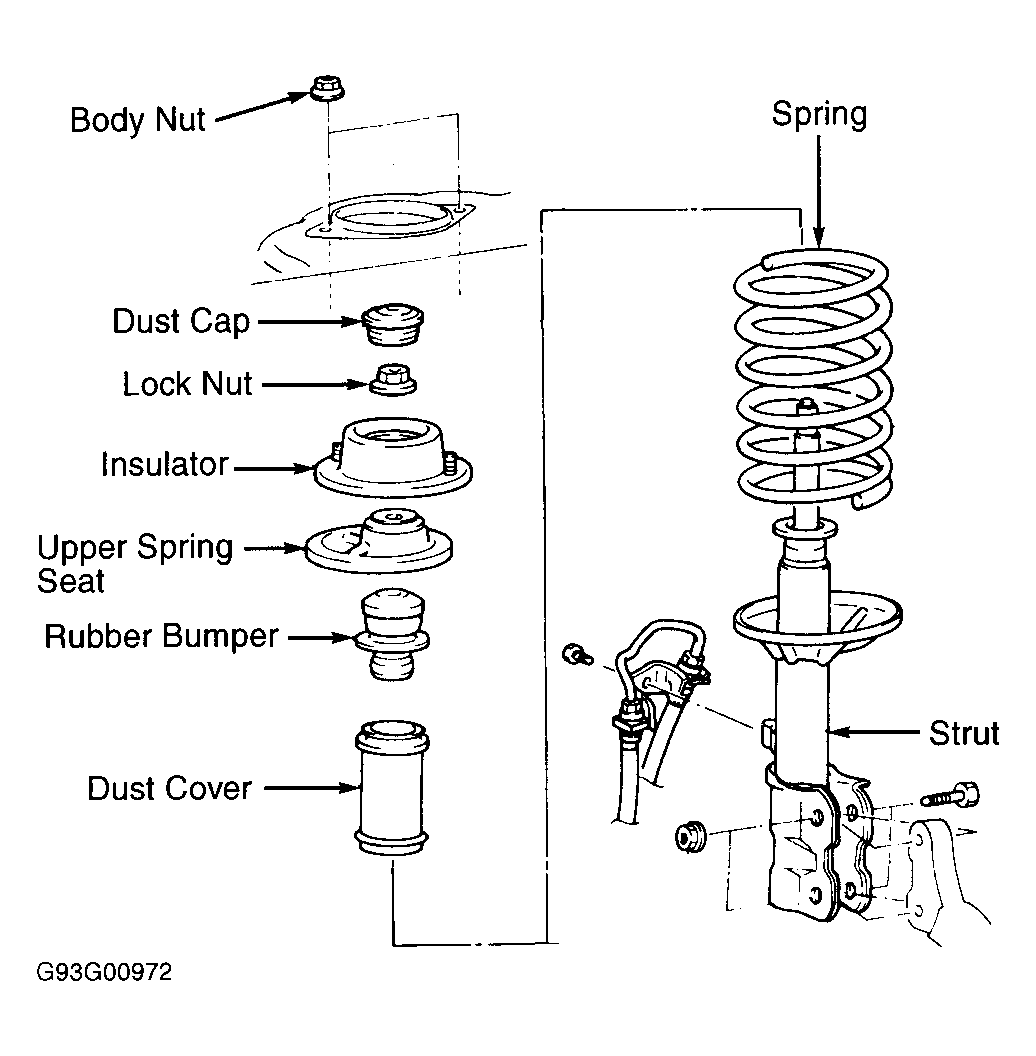

Mount strut assembly in vise. Compress coil spring using coil spring compressor. Remove self-locking bearing nut with Spanner Wrench while holding upper spring seat. See SPECIAL TOOLS  table. Remove insulator and spring seat. Remove rubber bumper and dust cover. See Figure. Slowly release coil spring compressor tension. Remove coil spring.
