| Center Member End Mounting Bolt |
44-59 (60-80) |
| Center Member-To-Front Engine Mount Bolt |
22-30 (30-40) |
| Center Member-To-Rear Engine Mount Bolt |
33-44 (45-60) |
| Drain Plug |
| Except Sonata |
25-32 (34-43) |
| Sonata |
21-25 (29-34) |
| Drive Axle Nut |
148-192 (200-260) |
| Lower Ball Joint Nut |
| Except Sonata |
44-53 (60-72) |
| Sonata |
74-89 (100-120) |
| Starter Bolt |
20-25 (27-34) |
| Tie Rod End Nut |
| Accent |
12-25 (16-34) |
| Elantra, Sonata & Tiburon |
18-25 (24-34) |
| Torque Converter-To-Drive Plate Bolt |
33-38 (46-53) |
| Transaxle Roll Stopper (Sonata) |
| Front Bracket-To-Subframe & Transaxle Bolt |
44-59 (60-80) |
| Front & Rear Insulator Bolt |
37-48 (50-65) |
| Rear Bracket-To-Subframe Bolt |
37-48 (50-65) |
| Rear Bracket-To-Transaxle Bolt |
44-59 (60-80) |

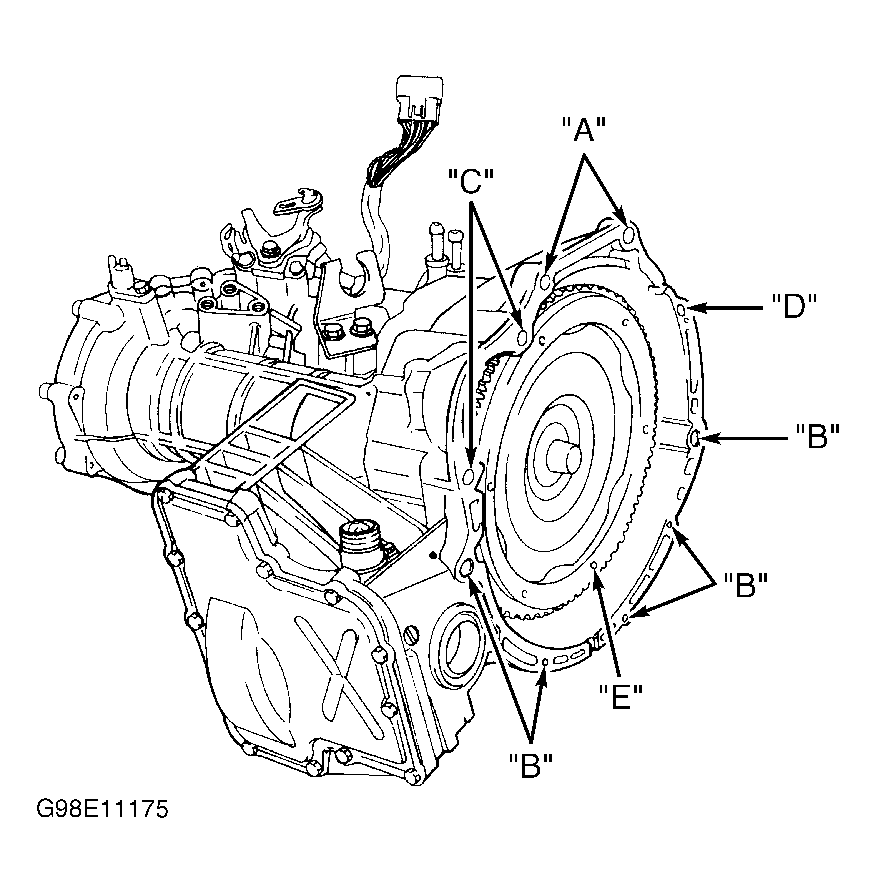

| Transaxle-To-Engine Mounting Bolt |
| Accent, Elantra & Tiburon |
| "A" (12 x 40-mm) |
43-58 (59-80) |
| "B" (10 x 70-mm) |
31-40 (43-55) |
| "C" (10 x 55-mm) |
20-25 (27-34) |
| "D" (6 x 10-mm) |
|
| "E" (8 x 12-mm) |
33-38 (46-53) |
| Transaxle-To-Engine Mounting Bolt (Sonata) |
31-40 (42-54) |
| INCH Lbs. (N.m) |
| Air Cleaner Mounting Bolt |
71-89 (8-10) |
| Lower Bellhousing Cover-To-Transaxle Bolt |
72-94 (8-10) |
| Manual Control Lever Nut |
106-132 (12-15) |
| Oil Pan Bolts |
| Except Sonata |
89-106 (10-12) |
| Sonata |
71-89 (8-10) |
| Speedometer Sleeve Locking Bolt |
27-44 (3-5) |
| Transaxle Range Switch Bolt |
89-106 (10-12) |
