Passenger Compartment Relay Box

NOTE: Passenger compartment relay box is located under driver's side of instrument panel. See Fig 1 .

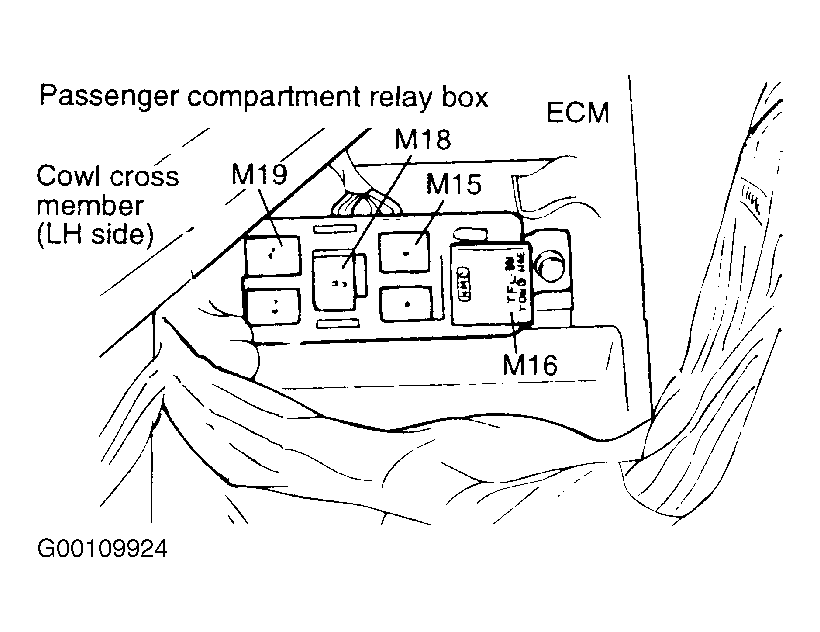

Fig 1: Locating Passenger Compartment Relay Box

Courtesy of HYUNDAI MOTOR CO.

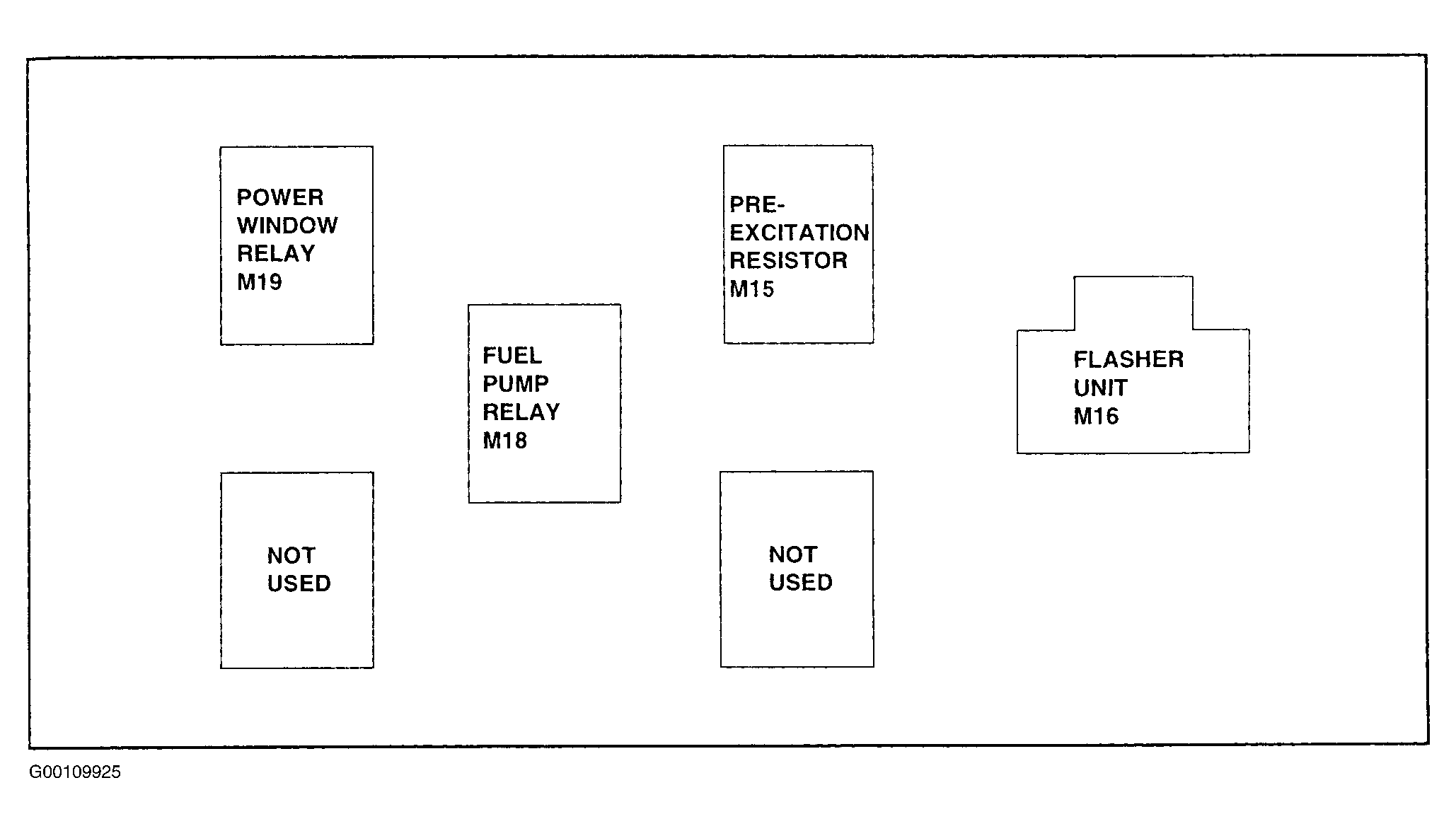

Fig 2: Identifying Passenger Compartment Relay Box Components

Courtesy of HYUNDAI MOTOR CO.
