Engine Compartment Relay & Fuse Box

NOTE: Engine compartment relay and fuse box is located on driver's side of engine compartment, near battery. See Fig 1 .

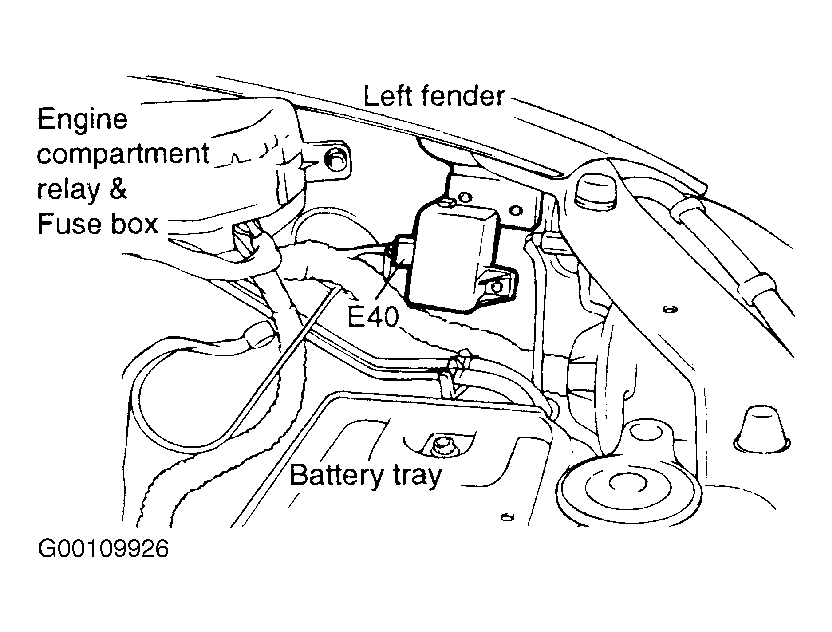

Fig 1: Locating Engine Compartment Relay & Fuse Box

Courtesy of GENERAL MOTORS CORP.

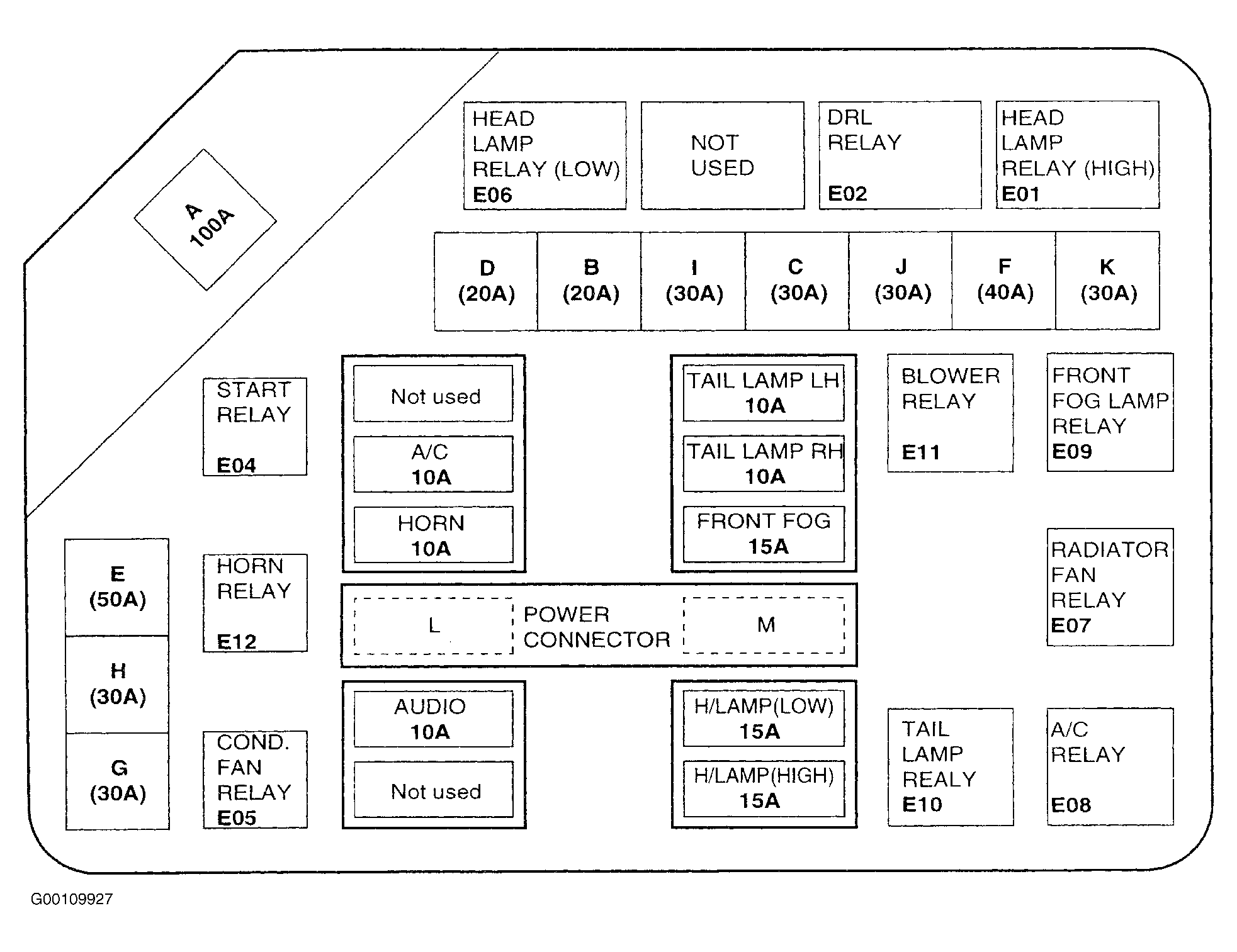

Fig 2: Identifying Engine Compartment Relay & Fuse Box Components

Courtesy of HYUNDAI MOTOR CO.

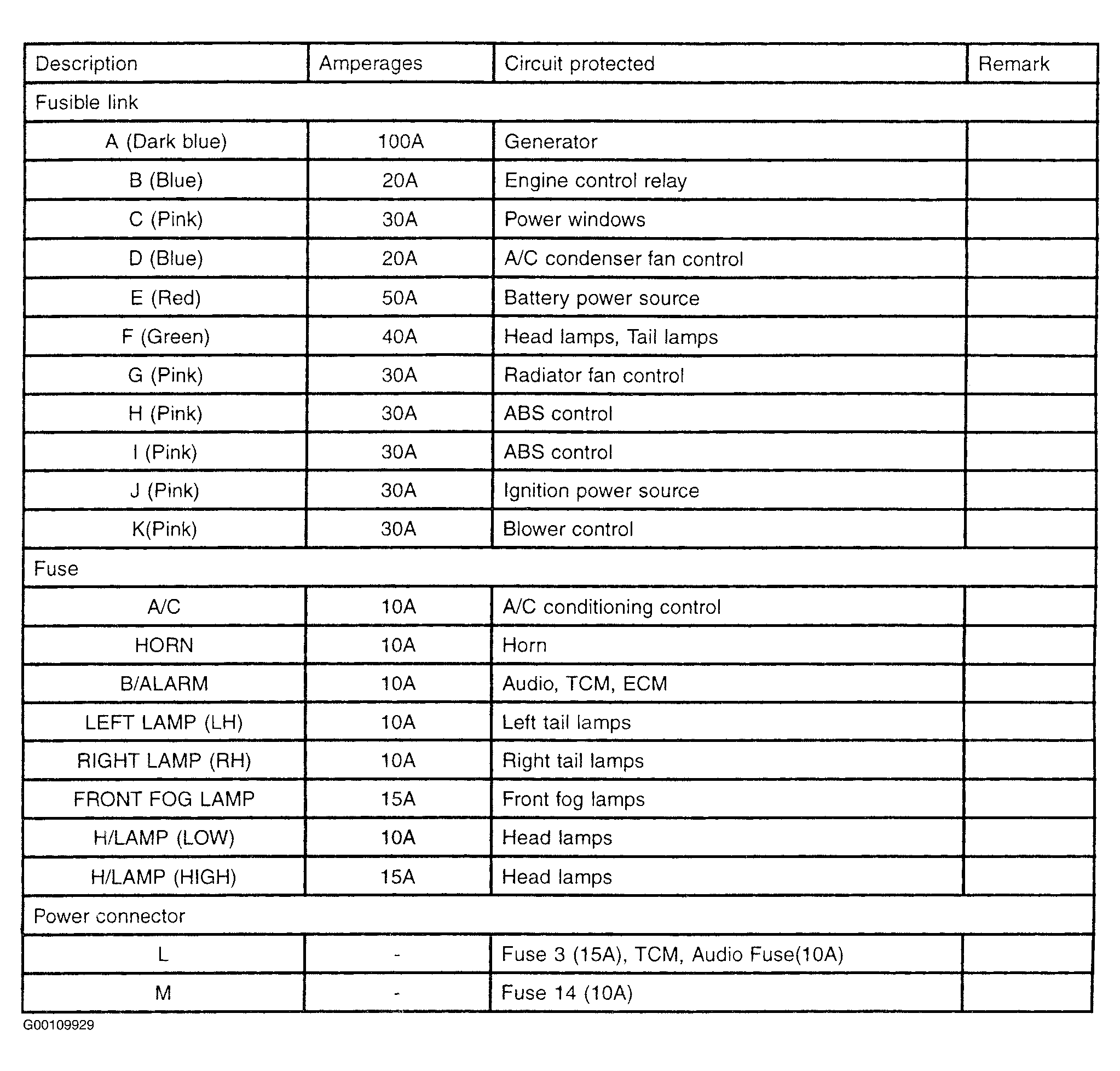

Fig 3: Engine Compartment Relay & Fuse Box Legend

Courtesy of HYUNDAI MOTOR CO.
