Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Active Module | Under front of floor console. |
| ABS Control Module | In right front corner of engine compartment. |
| A/T Shift & Key Lock Control Module | Under left side of dash, near kick panel. |
| Cruise Control Module | In center of dash, under radio. |
| DRL Control Module | On left front inner fender panel. |
| Electronic Time & Alarm Control Module (ETACM) | Under center of dash, below radio. |

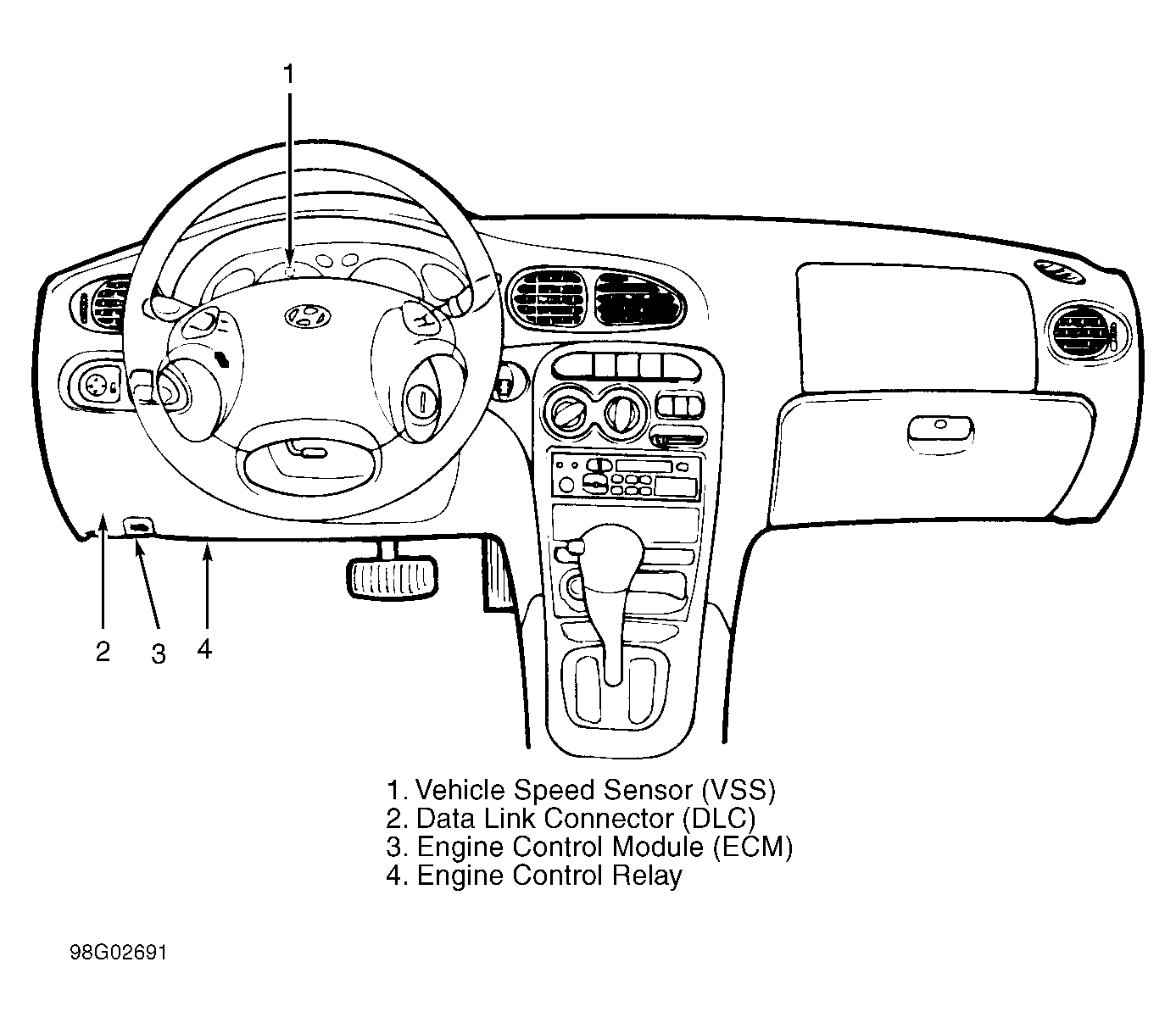

| Engine Control Module (ECM) | Behind dash, left of steering column. See Figure . |
| SRS Control Module (Air Bag) | Under rear console. |
| Transaxle Control Module (TCM) | On left rear corner of engine compartment. |
