CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| Dash Fuse Box | Under left side of dash, at kick panel. |
| Diodes (Z01, Z03, Z09) | Under dash, right of steering column. |
| Diodes (Z02, Z04, Z05) | Taped inside main wire harness, lower left side of dash. |
| Diode (Z06) | Taped inside control harness, lower left side of dash. |
| Diode (Z13) | In engine compartment relay & fuse box. |

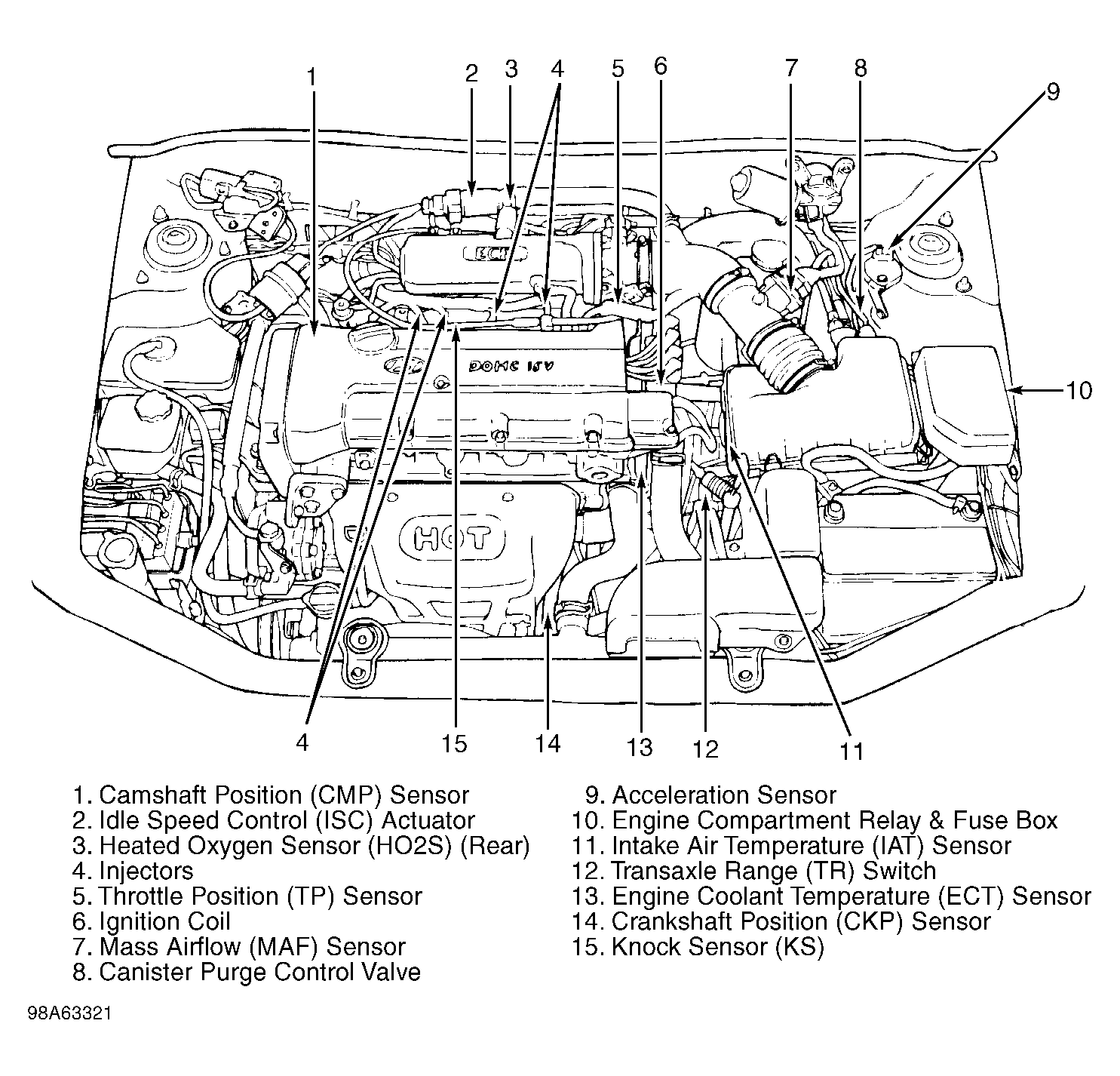

| Engine Compartment Relay & Fuse Box | In right front corner of engine compartment, behind battery. See Figure . |
| Fusible Links (A Through K) | In engine compartment relay & fuse box. |
| Passenger Compartment Relay Box | Under left side of dash, left of steering column. |
