Home >> Hyundai >> 2000 >> Accent GL, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul - Automatic Transmission >> Front Clutch Assembly >> Front Clutch Assembly >> Components

Front Clutch Assembly: Components

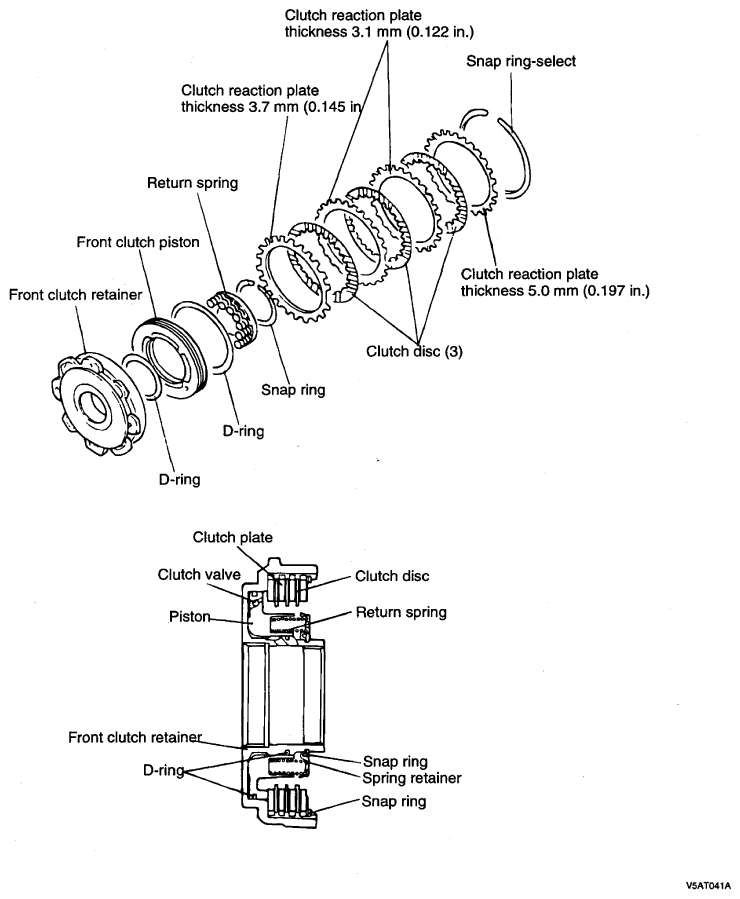

Fig 1: Identifying Front Clutch Assembly Components

G06476472

Courtesy of HYUNDAI MOTOR CO.
