Home >> Hyundai >> 2000 >> Accent GL, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul - Automatic Transmission >> Differential >> Differential >> Components

Overhaul - Automatic Transmission: Differential: Differential: Components

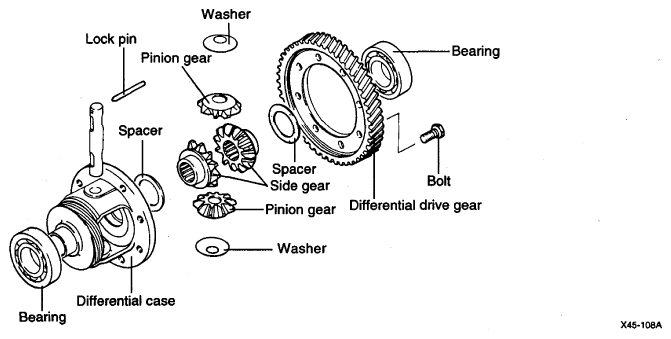

Fig 1: Identifying Differential Components

G06476515

Courtesy of HYUNDAI MOTOR CO.
