Power Mirror Switch: Tiburon

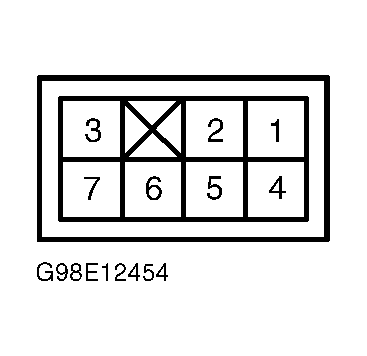

Remove master control switch assembly, located on driver's door. Disconnect harness connectors and ensure continuity exists between specified power mirror switch terminals with switch in specified position. See POWER MIRROR SWITCH CONTINUITY TEST table. See Fig 1. If continuity does not exist, replace power mirror switch.
POWER MIRROR SWITCH CONTINUITY TEST
| Switch Position | Continuity Between Terminals No. | ||
|---|---|---|---|
| Accent | |||
| Left Mirror | |||
| Up | 1 & 6; 4 & 7 | ||
| Down | 1 & 7; 4 & 6 | ||
| Left | 1 & 5; 4 & 7 | ||
| Right | 1 & 7; 4 & 5 | ||
| Right Mirror | |||
| Up | 1 & 3; 4 & 7 | ||
| Down | 1 & 7; 3 & 4 | ||
| Left | 1 & 3; 4 & 7 | ||
| Right | 2 & 4; 1 & 7 | ||
| Elantra | |||
| Left Mirror | |||
| Up | 1 & 7; 2 & 4 | ||
| Down | 1 & 2; 4 & 7 | ||
| Left | 1 & 6; 2 & 4 | ||
| Right | 1 & 2; 4 & 6 | ||
| Right Mirror | |||
| Up | 1 & 5; 2 & 4 | ||
| Down | 1 & 2; 4 & 5 | ||
| Left | 1 & 3; 2 & 4 | ||
| Right | 1 & 2; 3 & 4 | ||
| Sonata | |||
| Left Mirror | |||
| Up | 2 & 3; 4 & 7 | ||
| Down | 2 & 7; 3 & 4 | ||
| Left | 2 & 3; 5 & 7 | ||
| Right | 2 & 7; 3 & 5 | ||
| Right Mirror | |||
| Up | 1 & 7; 2 & 3 | ||
| Down | 1 & 3; 2 & 7 | ||
| Left | 2 & 3; 6 & 7 | ||
| Right | 2 & 7; 3 & 6 | ||
| Tiburon | |||
| Left Mirror | |||
| Up | 6, 8 & 11; 7 & 12 | ||
| Down | 6, 7 & 12; 8 & 12 | ||
| Left | 7 & 9; 8 & 11 | ||
| Right | 6 & 7; 9 & 11 | ||
| Right Mirror | |||
| Up | 8, 9 & 10; 7 & 12 | ||
| Down | 7, 9 & 10; 8 & 12 | ||
| Left | 8, 10 & 12; 7 & 9 | ||
| Right | 7, 10 & 12; 8 & 9 | ||
