Security System Installation Tips (98-90-003)

SECURITY SYSTEM INSTALLATION TIPS

TECHNICAL SERVICE BULLETIN

SECURITY SYSTEM INSTALLATION TIPS

Model(s): Hyundai Tiburon, Elantra

Group: Body Electrical

Bulletin No.: 98-90-003

Date: February, 1998

DESCRIPTION

Listed below are preparation tips to facilitate the installation of the Hyundai Security System.

TIP # 1

Before installing the Security System, unroll the main wiring harness and lay it out on a table (see Fig 1 ). Prearrange the harness and connections by doing the following:

1. Carefully cut the black tape at the main alarm computer connector.
2. Arrange to the LEFT:
   1. Valet Switch Wires (black & white)
   2. Ground Wire (black with ring connector)
   3. Door Solenoid Wires (red & blue)
   4. Door Ajar Connector (MI01 in Tiburon & MM02 in Elantra).
3. Using electrical tape, tape these wires together near the main alarm connector.
4. Connect the Valet Switch to the harness (make sure the bullet connectors are completely connected).
5. Arrange to the RIGHT:
   1. Shock Sensor Wires (orange, red & black)
   2. LED Wires (black & purple)
   3. Siren Wires (red & yellow)
   4. All remaining alarm connectors
6. Using electrical tape, tape these wires together near the main alarm connector.
7. Connect the shock sensor to the harness.

The above preparation will ease the installation process in the vehicle.

TIP # 2

With the relays, do the following:

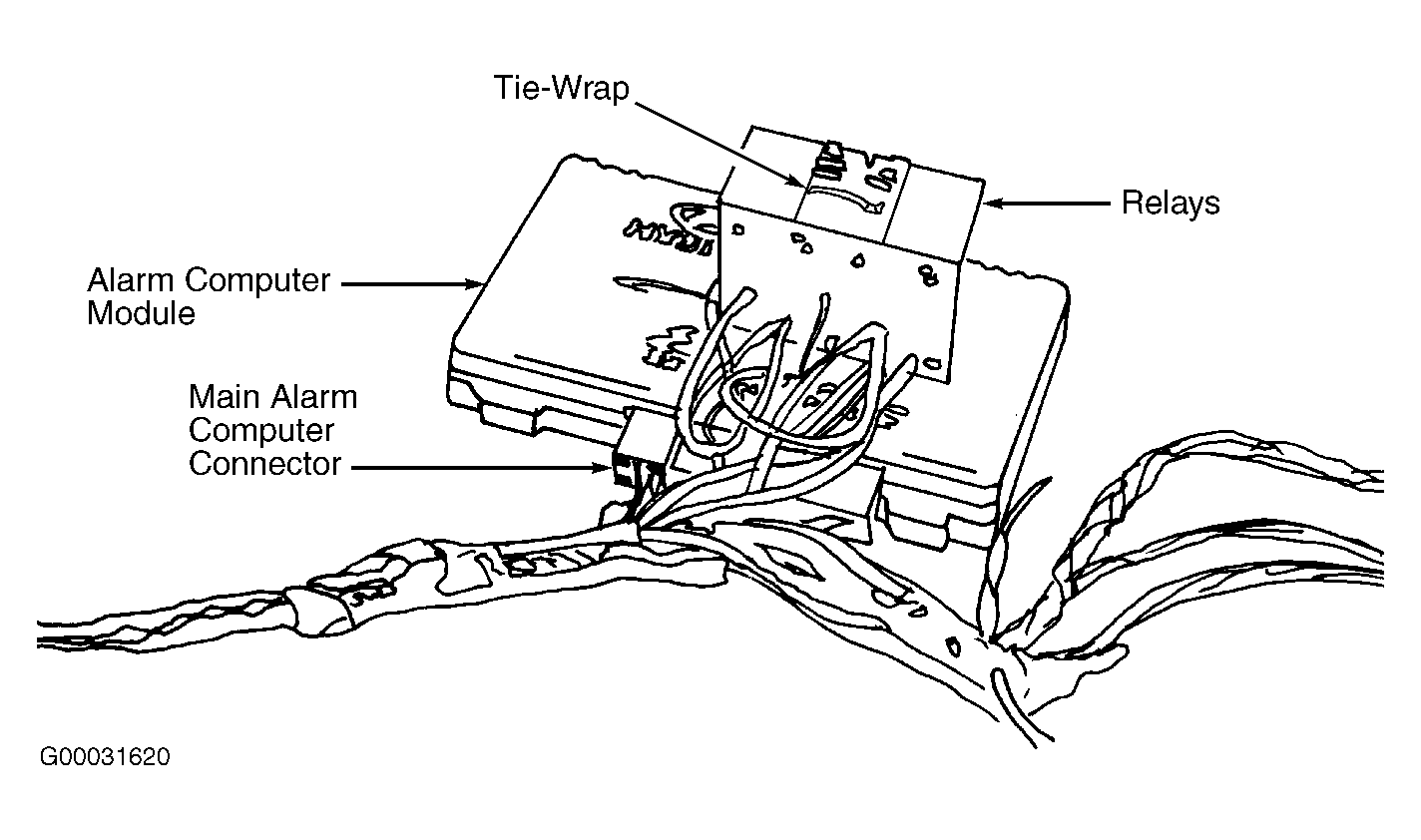

1. Using electrical tape, tape the relays together into a single block (see Fig 1 ).
2. Using long tie-wraps, tie-wrap the relays to the alarm computer module. These tie-wraps can be routed around the main alarm computer connector to also secure the connector to the alarm computer module.
