Electronic Power Steering System
>>
Troubleshooting
>>
Electronic Power Steering System
Electronic Power Steering System
For trouble shooting procedures, see
Fig 1
.

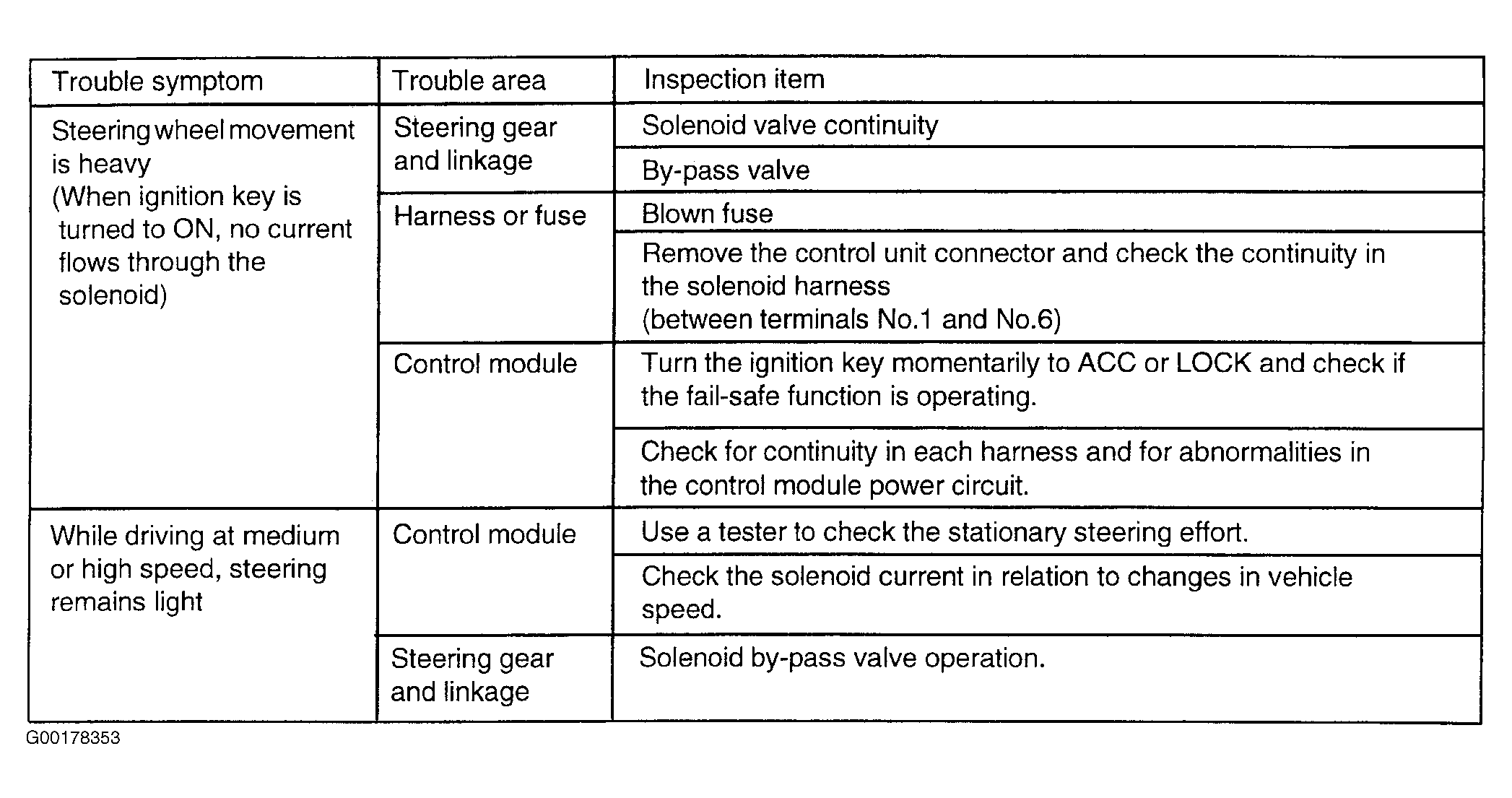

Fig 1: Trouble Shooting Electronic Power Steering
Courtesy of HYUNDAI MOTOR CO.
