BRAKELIGHT Switch

Remove brakelight switch. Depress switch plunger and ensure continuity exists between terminals "C" and "D". Release switch plunger, and ensure continuity exists between terminals "A" and "B". SeeFig 1 . If continuity is not as specified, replace brakelight switch.

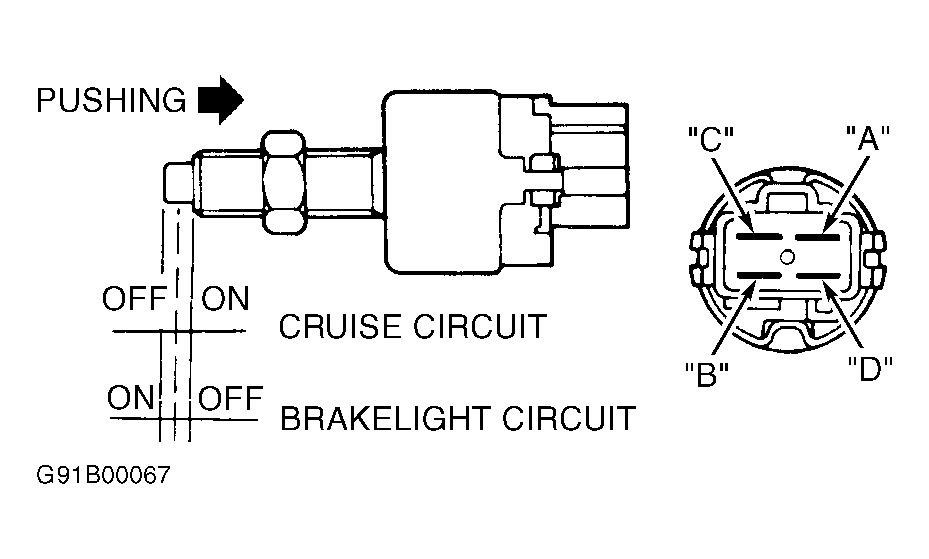

Fig 1: Testing Brakelight Switch
G91B00067Courtesy of HYUNDAI MOTOR CO.
