Electrical Component Locator: Miscellaneous
MISCELLANEOUS
| Component | Component Location |
|---|---|
| Blower Resistor | Under right side of dash. |
| Condenser Fan Motor Resistor | On lower left front of radiator. |

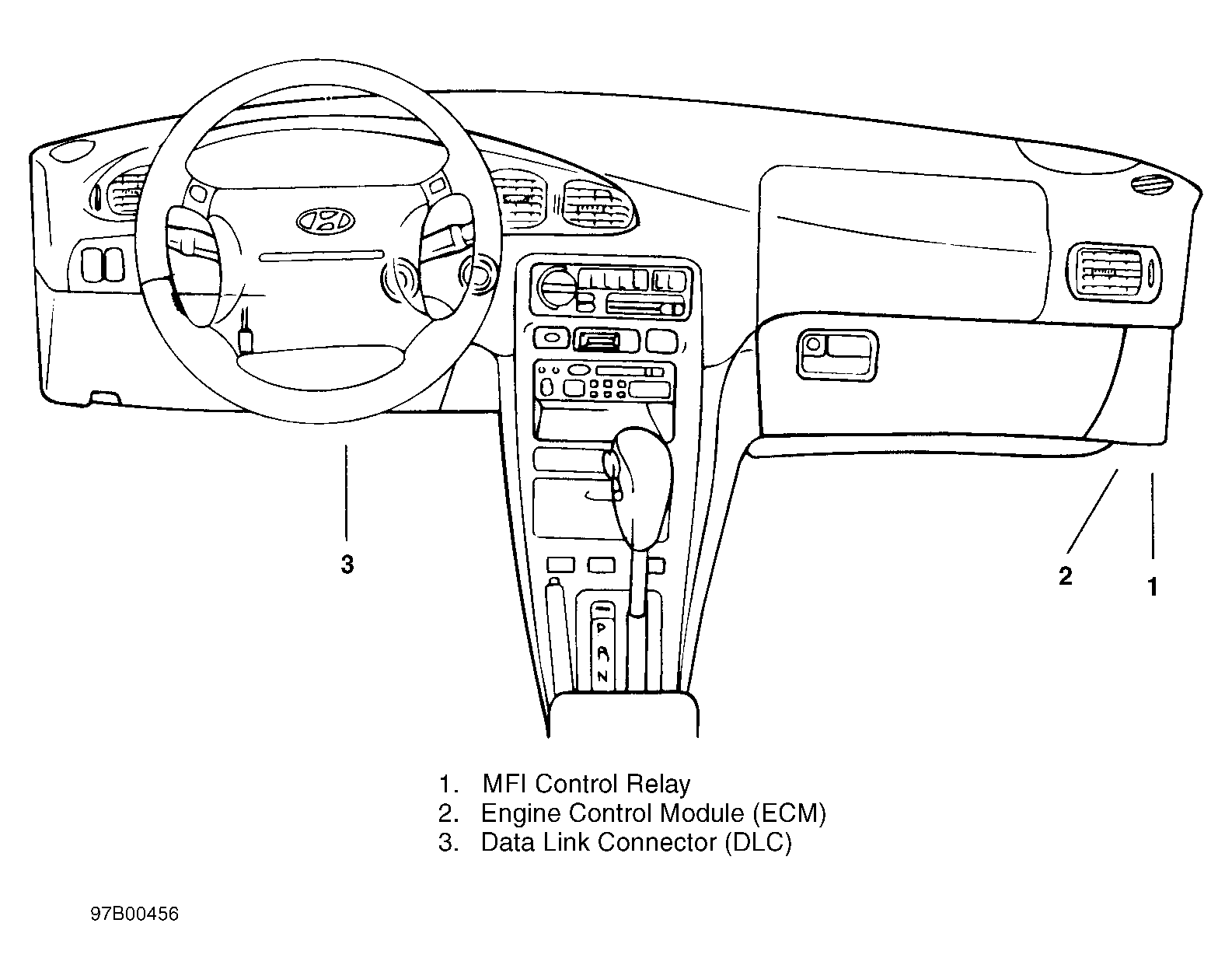

| Data Link Connector (DLC) | On left side lower center of dash, above accelerator pedal. See Figure . |
| Daytime Running Lamps (DRL) Resistor | On left front of radiator support. |
| Engine Cooling Fan Motor Resistor | On lower right front of radiator. |

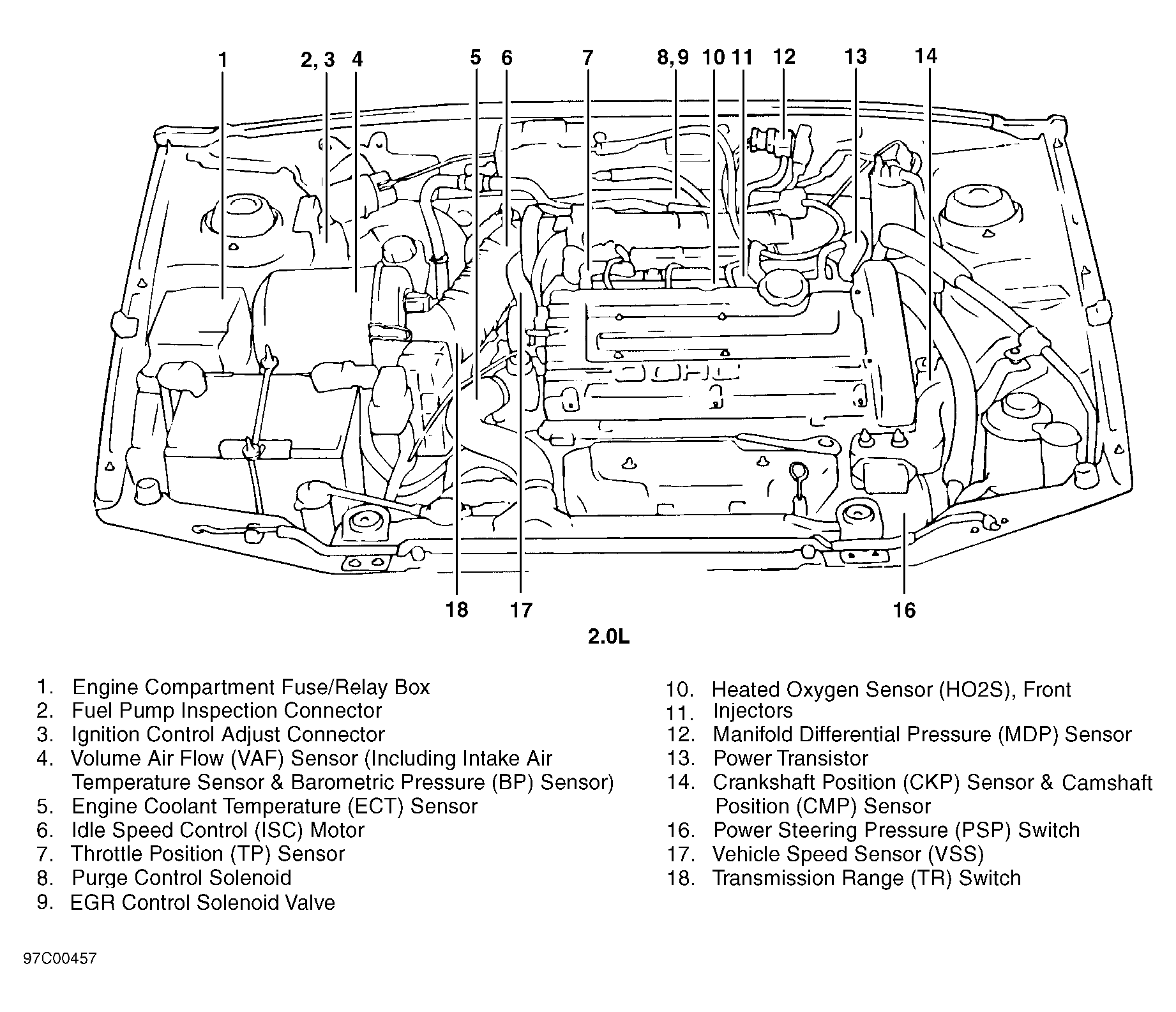

| Fuel Pump Inspection Connector (2.0L) | On right side of engine compartment, taped to harness. See Figure . |

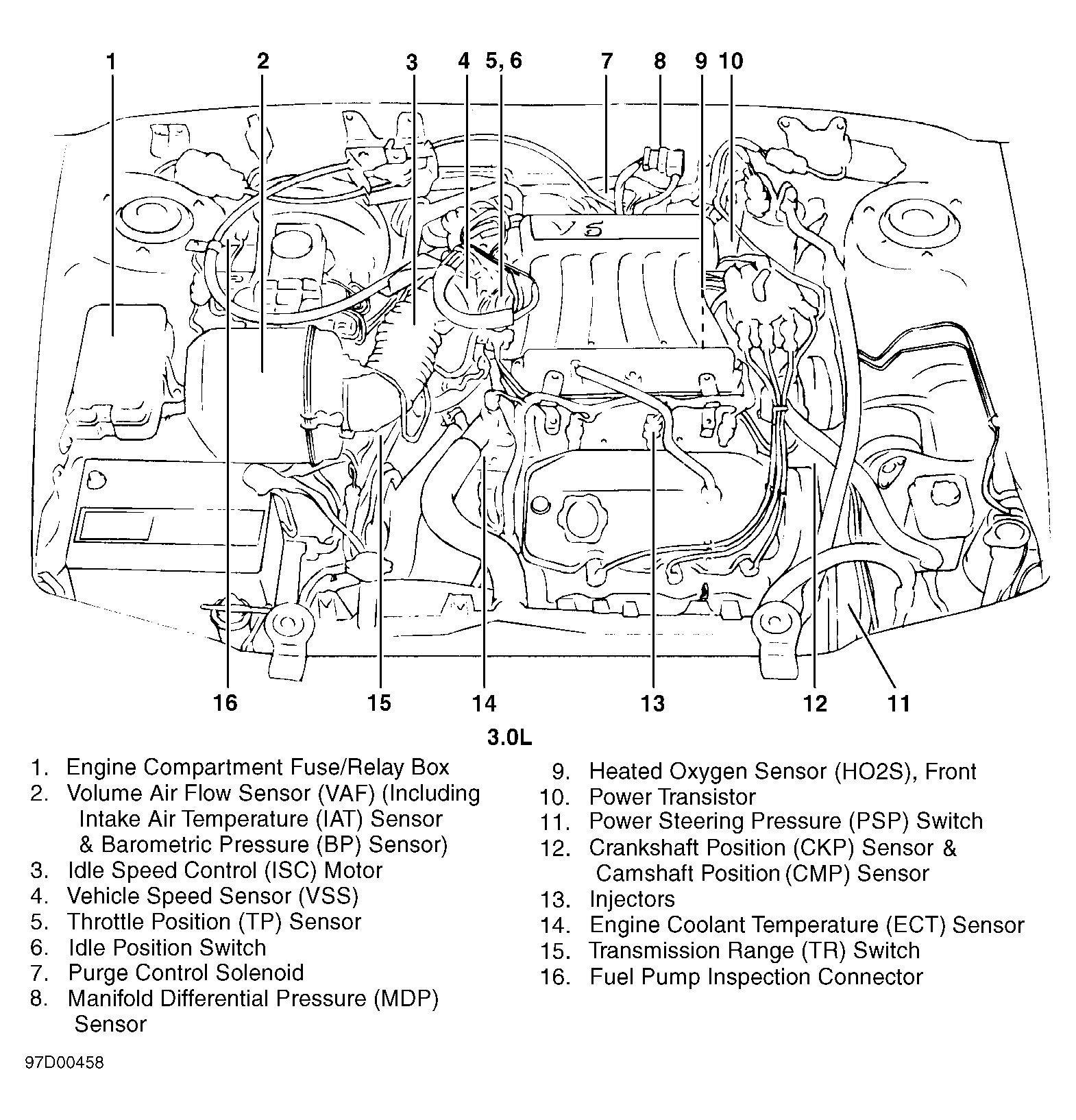

| Fuel Pump Inspection Connector (3.0L) | On right side of engine compartment, taped to harness. See Figure . |
| Ignition Coil | On left front corner of engine. |
| Ignition Control Adjust Connector (2.0L) | On right side of engine compartment, taped to harness. See Figure . |
| Injectors (2.0L) | On top of engine. See Figure . |
| Injectors (3.0L) | On top of engine. See Figure . |
| In-Line Diode (A) | Behind left side of dash pad, taped to main harness. |
| In-Line Diode (B) | Behind right side of instrument cluster, taped to harness. |
| Noise Filter (2.0L) | On left rear of engine, on valve cover. |
| Noise Filter (3.0L) | In left rear of engine compartment. |
| Power Transistor (2.0L) | On left front corner of engine, below ignition coil assembly. See Figure . |
| Power Transistor (3.0L) | On left rear of engine compartment. See Figure . |
| Pre-Excitation Resistor | On right rear of engine compartment, on firewall. |
| Pulse Generators "A" & "B" | On top of transaxle. |
| Radio Noise Condenser | On left rear of engine compartment. |
