Change Of SRS (Airbag) Control Module (96-90-006)
Publication date: 1996-03-01Reference number: 96-90-006
CHANGE OF SRS (AIRBAG) CONTROL MODULE
TECHNICAL SERVICE BULLETIN
Reference Number(s): 96-90-006, Date of Issue:
March, 1996
| HYUNDAI: | Accent 1995-1996, Elantra 1996 and Sonata 1995-1996 |
| GROUP: | 90 - Electrical |
DESCRIPTION
The SRS (Air Bag) Control Module (SRSCM) has been changed from a 26 Pin type to a 30 Pin type (see below for Effective Production Dates).
Refer to TSB # 96-09-001 for SRS Harness Checker Applications when performing diagnostic procedures.
PARTS INFORMATION
The two types of SRSCM are not interchangeable. The diagram and table below contains information for identification purposes.

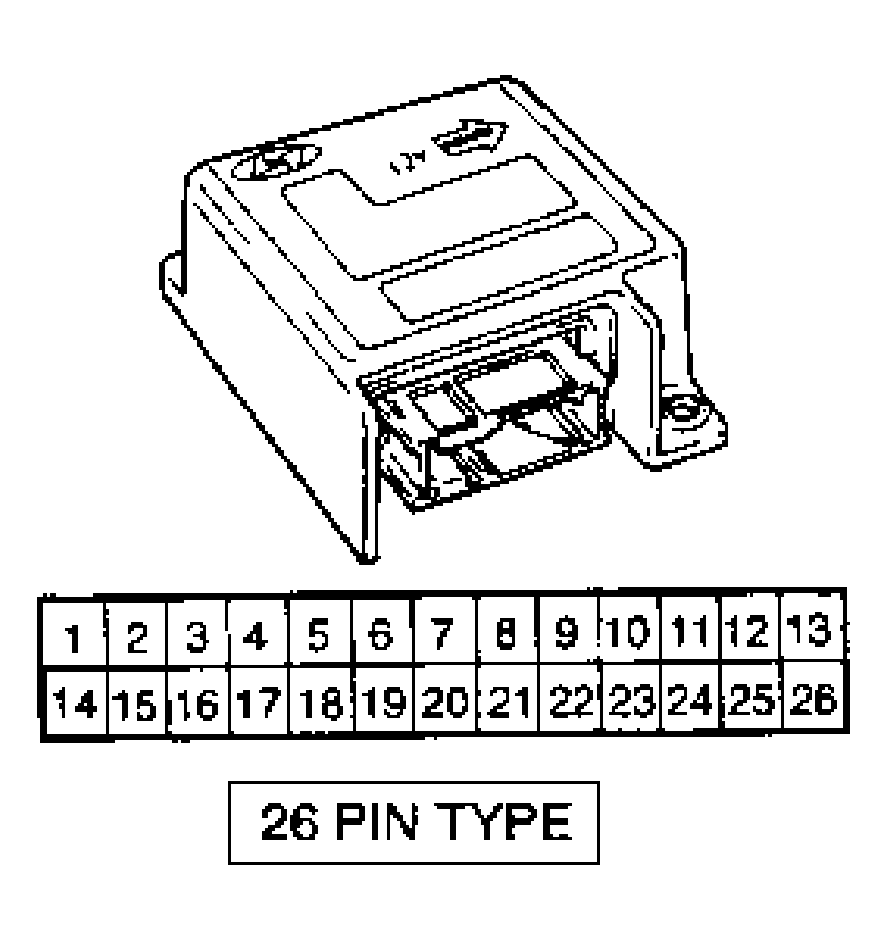

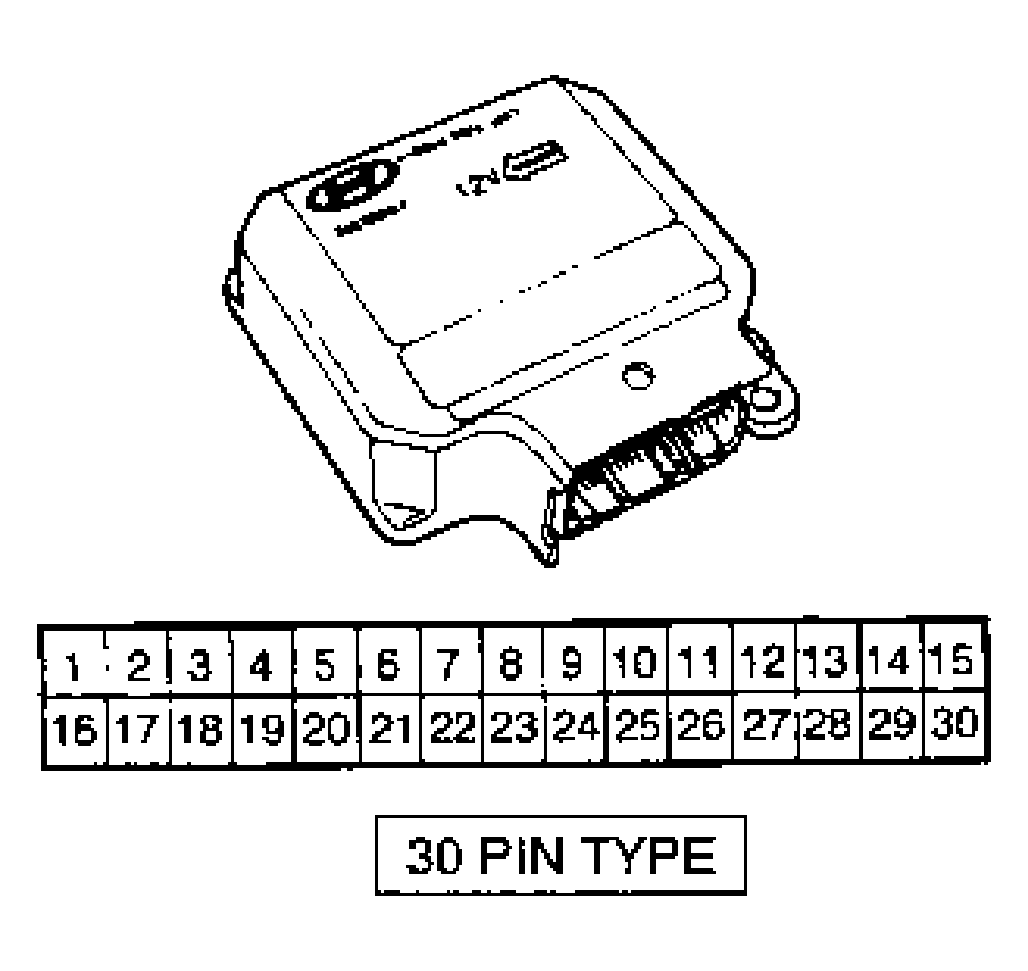

DIFFERENT SHAPES
SRS (AIR BAG) CONTROL MODULE DESCRIPTION
| MODEL | CONNECTOR COLOR | PART NUMBER(S) PREVIOUS | PART NUMBER(S) NEW | EFFECTIVE PRODUCTION DATE |
|---|---|---|---|---|
| '95-'96 ACCENT | GRAY | 95910-22610 | 95910-22300 | MAY 31, 1995 |
| '95-'96 SONATA | GREEN | 95910-34610 | 95910-34300 | SEPTEMBER 15, 1995 |
| '96 ELANTRA | YELLOW | N/A | 95910-29100 | NOVEMBER 17, 1995 |
INTERCHANGEABILITY
Old-->New=NO, New-->Old=NO
