Component Location

Emission-related components are shown in illustration. See Fig 1 or Fig 2 .

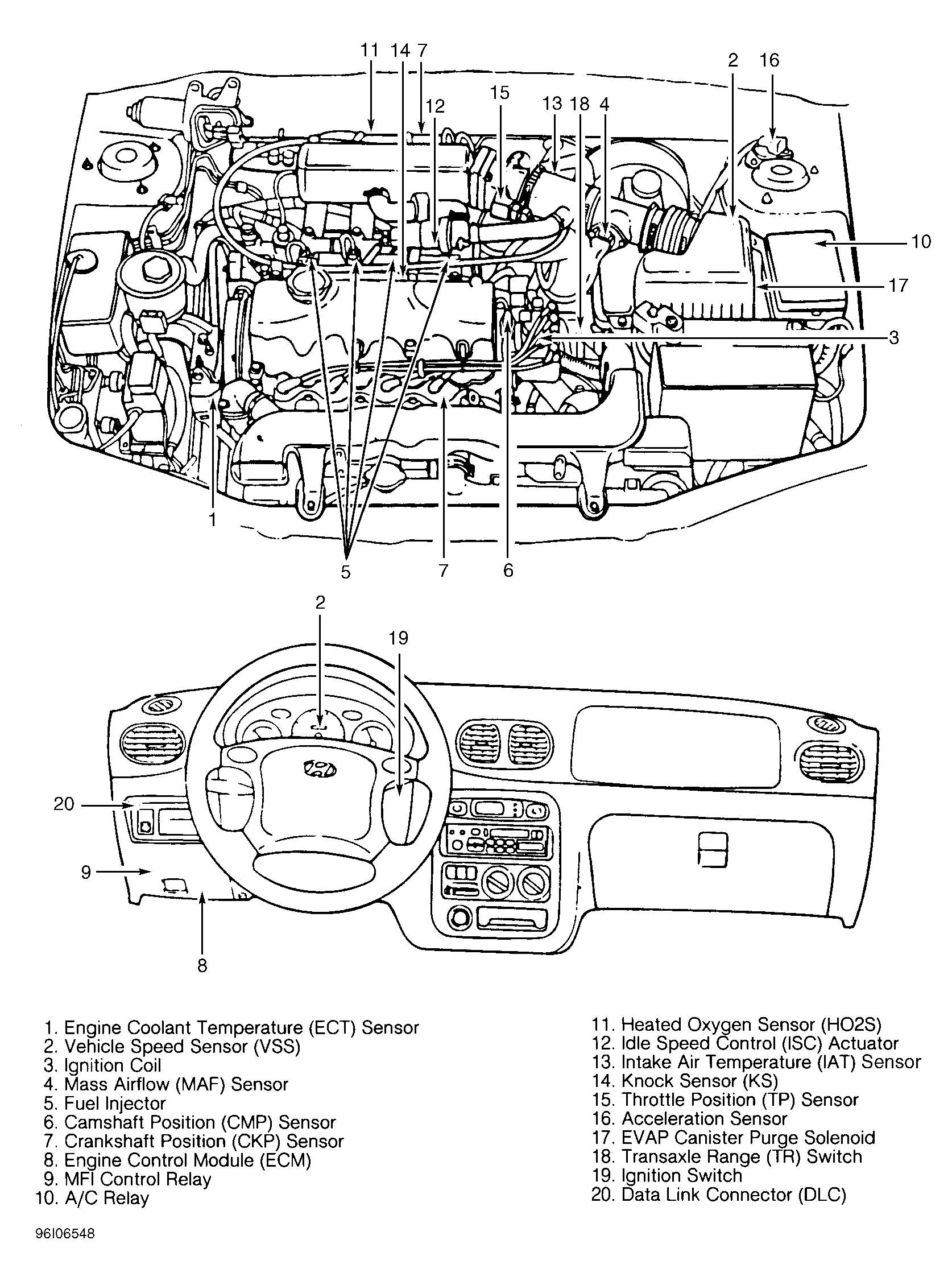

Fig 1: Identifying Emission-Related Components (Accent W/DOHC)
G96I06548Courtesy of HYUNDAI MOTOR CO.

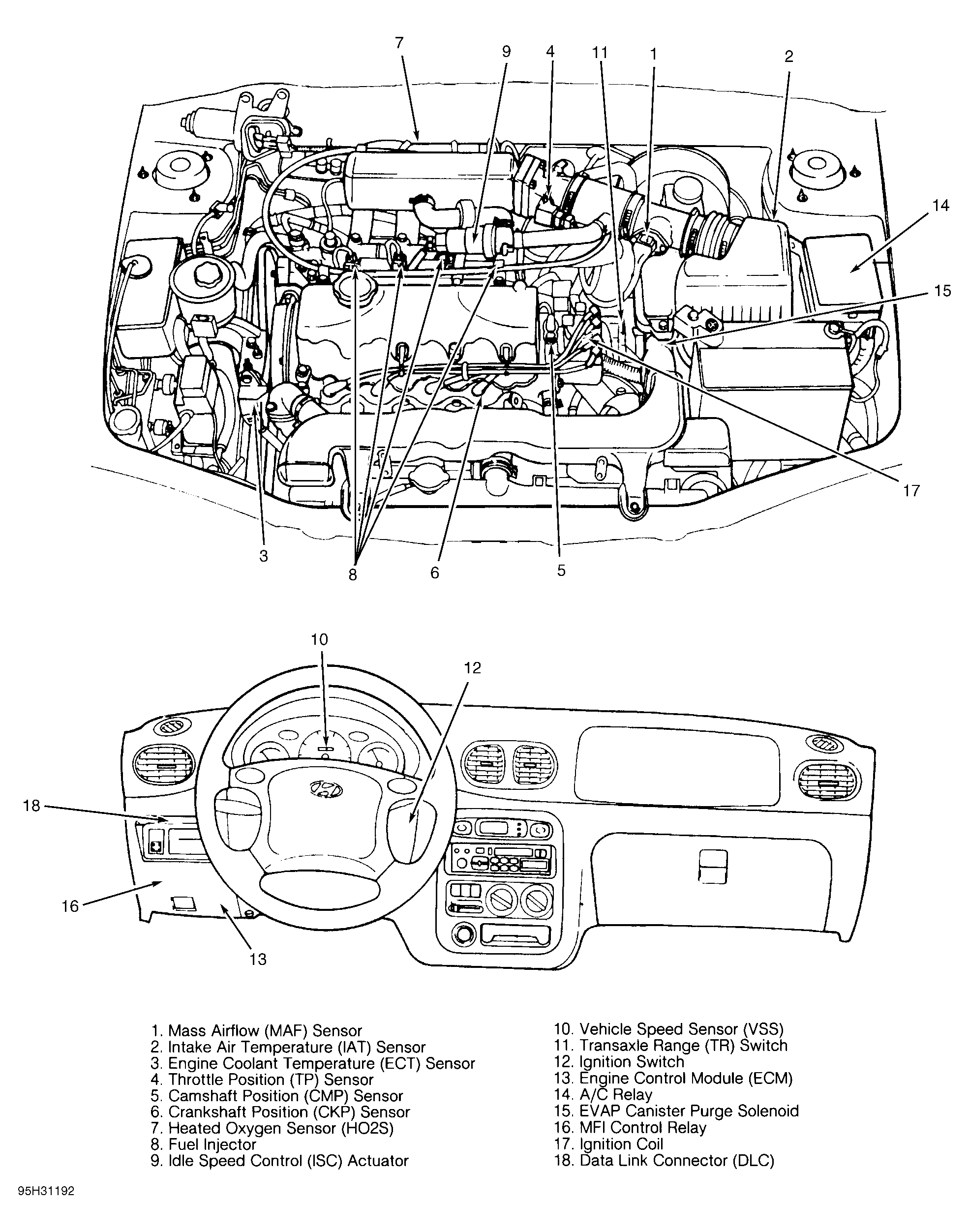

Fig 2: Identifying Emission-Related Components (Accent W/SOHC)
G95H31192Courtesy of HYUNDAI MOTOR CO.
