Ignition Lock Switch Test

Remove ignition lock switch. Using ohmmeter, check continuity between switch terminals with switch pressed in and then with it released. Ensure continuity exists with switch pressed in. Continuity should not exist with switch released. Replace ignition lock switch if continuity is not as specified.

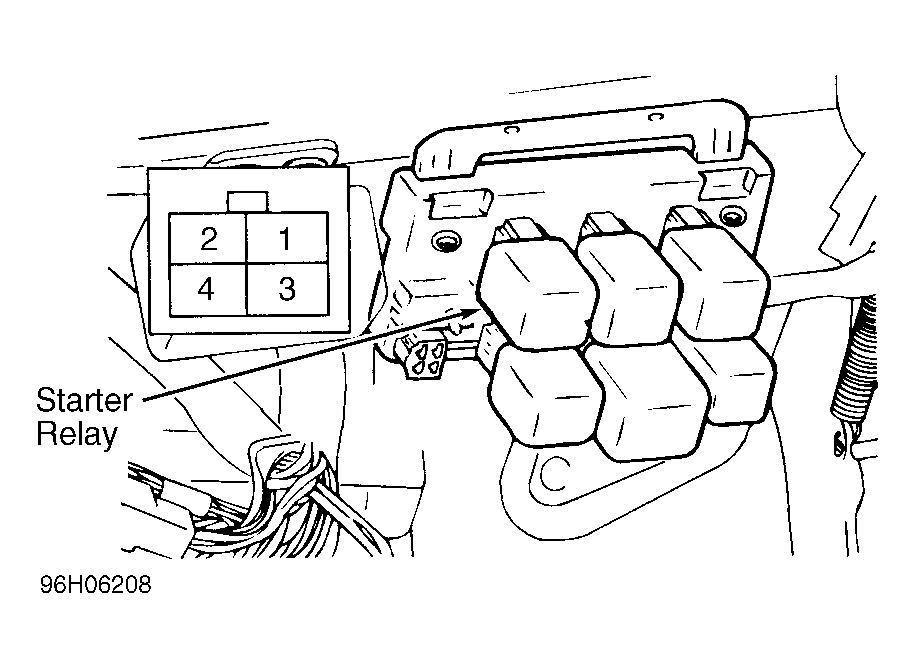

Fig 1: Identifying Starter Relay Terminals (4-Pin)
G96H06208Courtesy of HYUNDAI MOTOR CO.
