Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

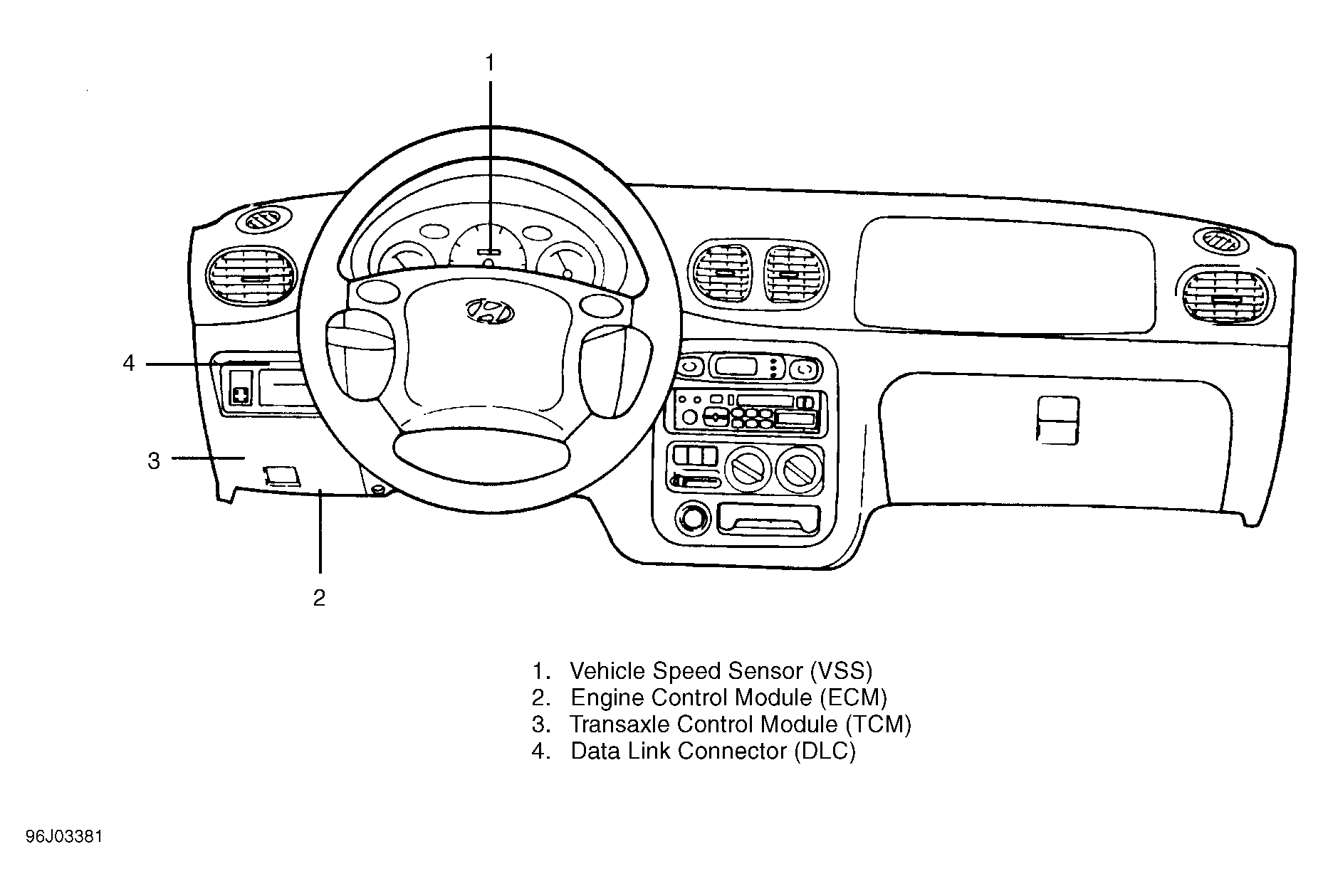

Fig 1: Dash (1995)

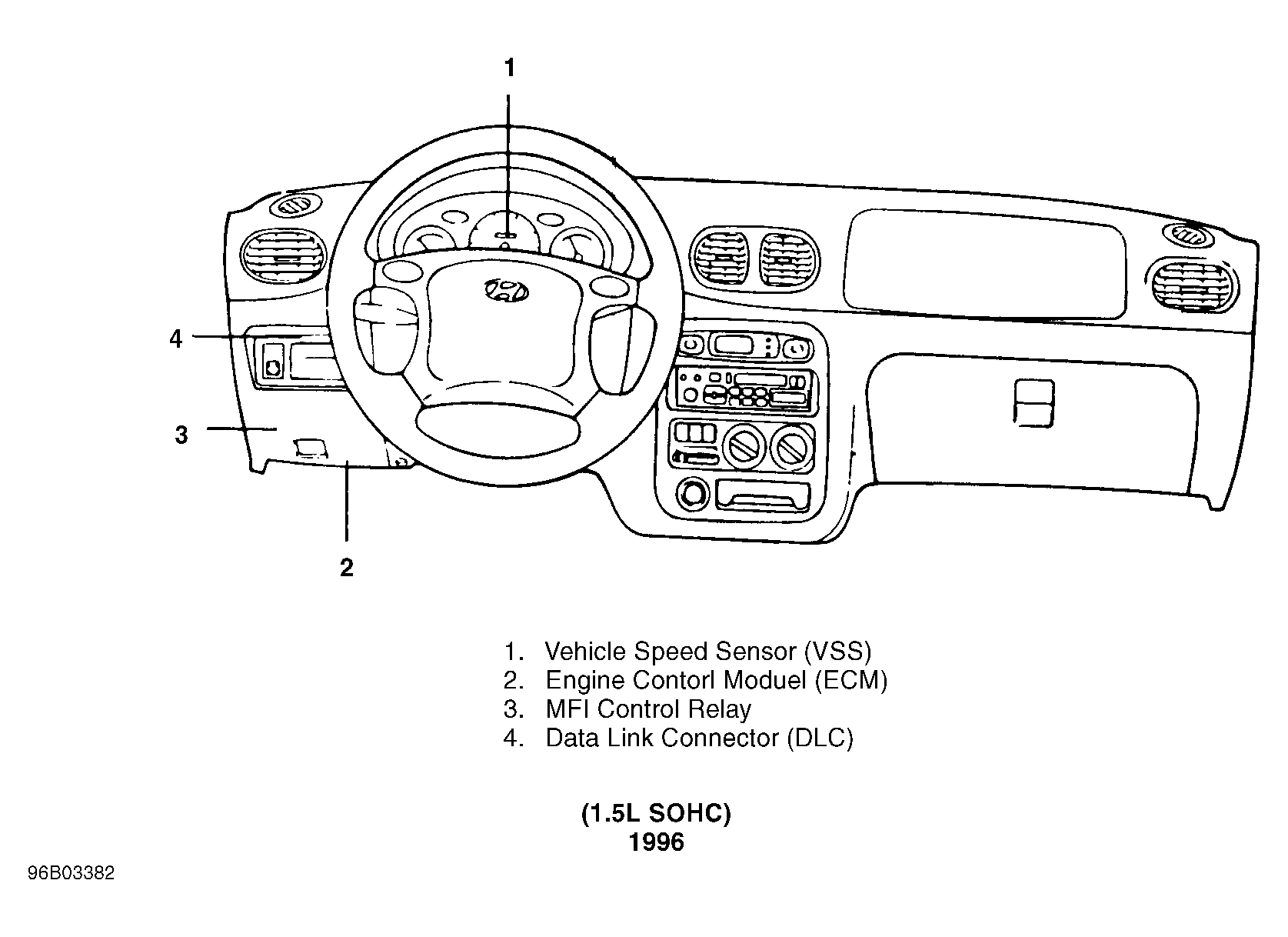

Fig 2: Dash (1.5L SOHC) (1996)

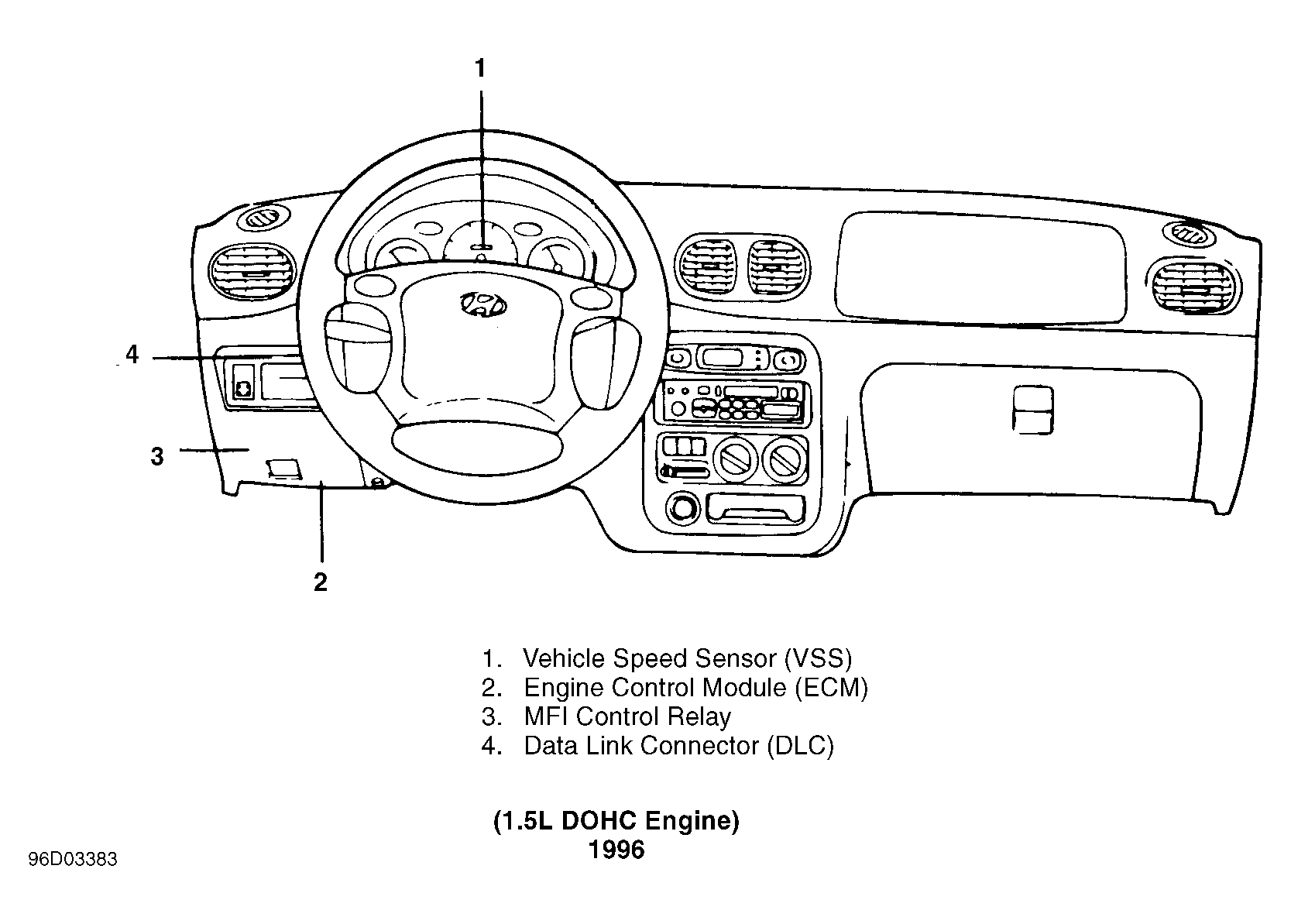

Fig 3: Dash (1.5L DOHC) (1996)

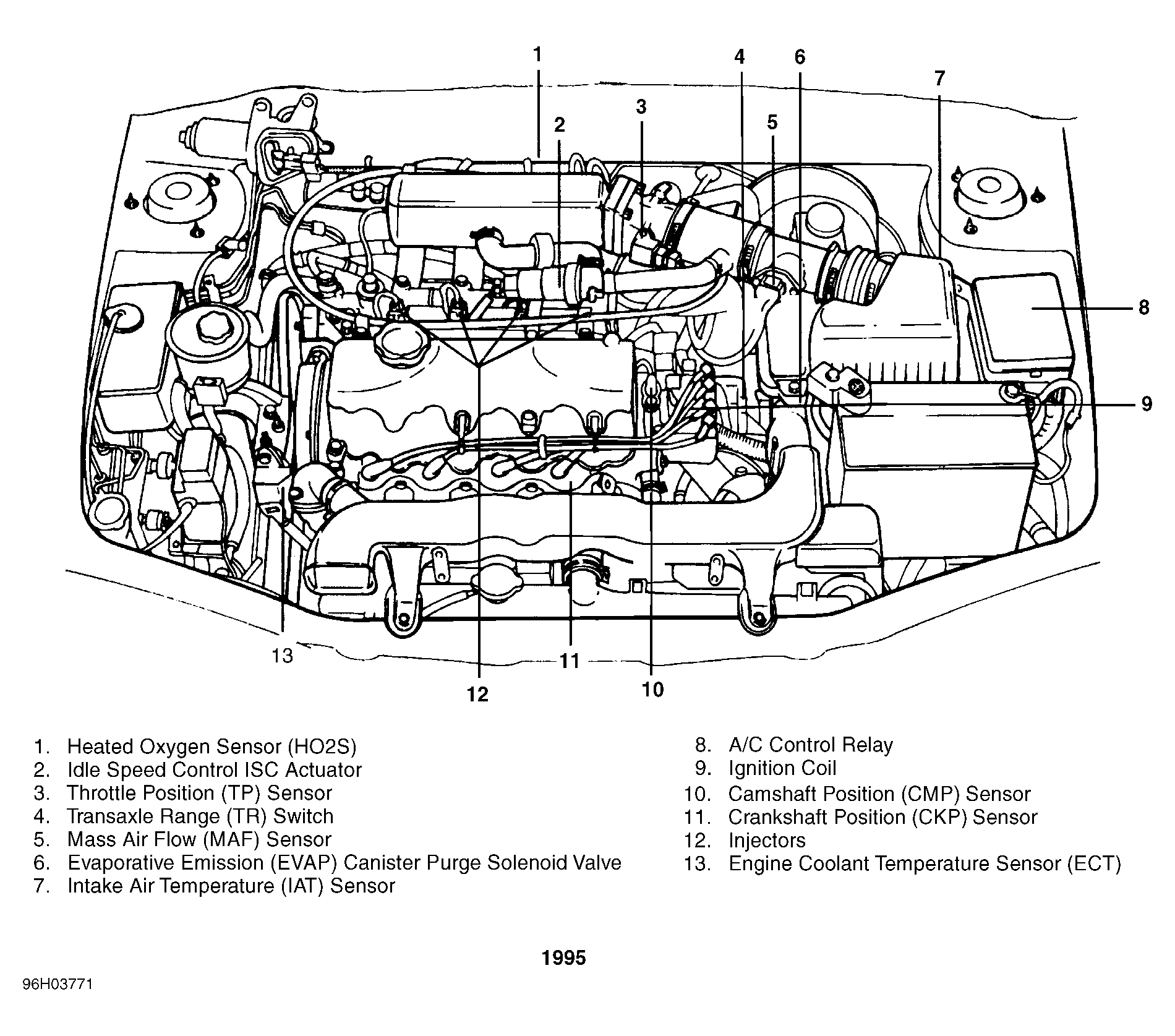

Fig 4: Engine Compartment (1995)

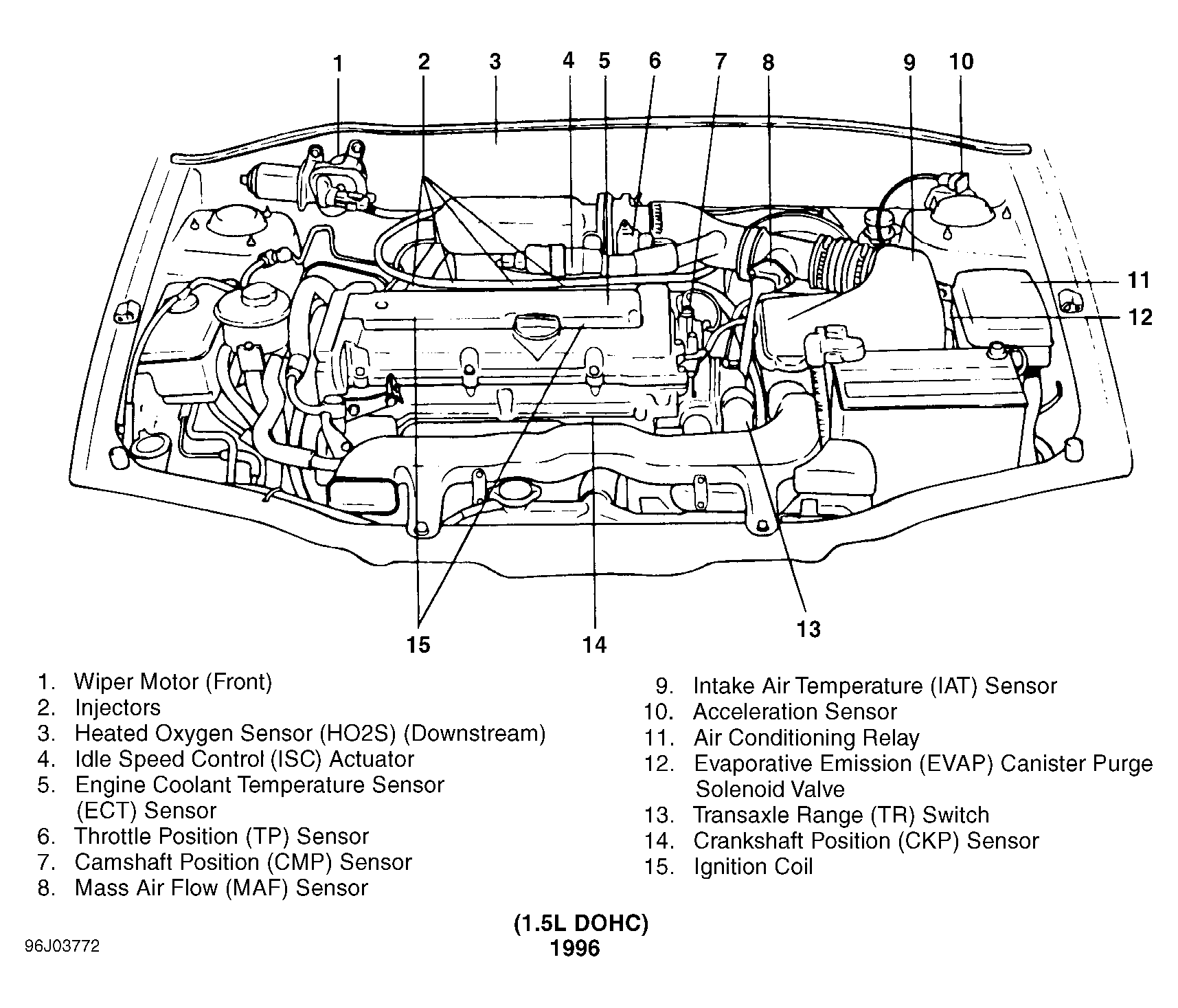

Fig 5: Engine Compartment (1.5L DOHC) (1996)

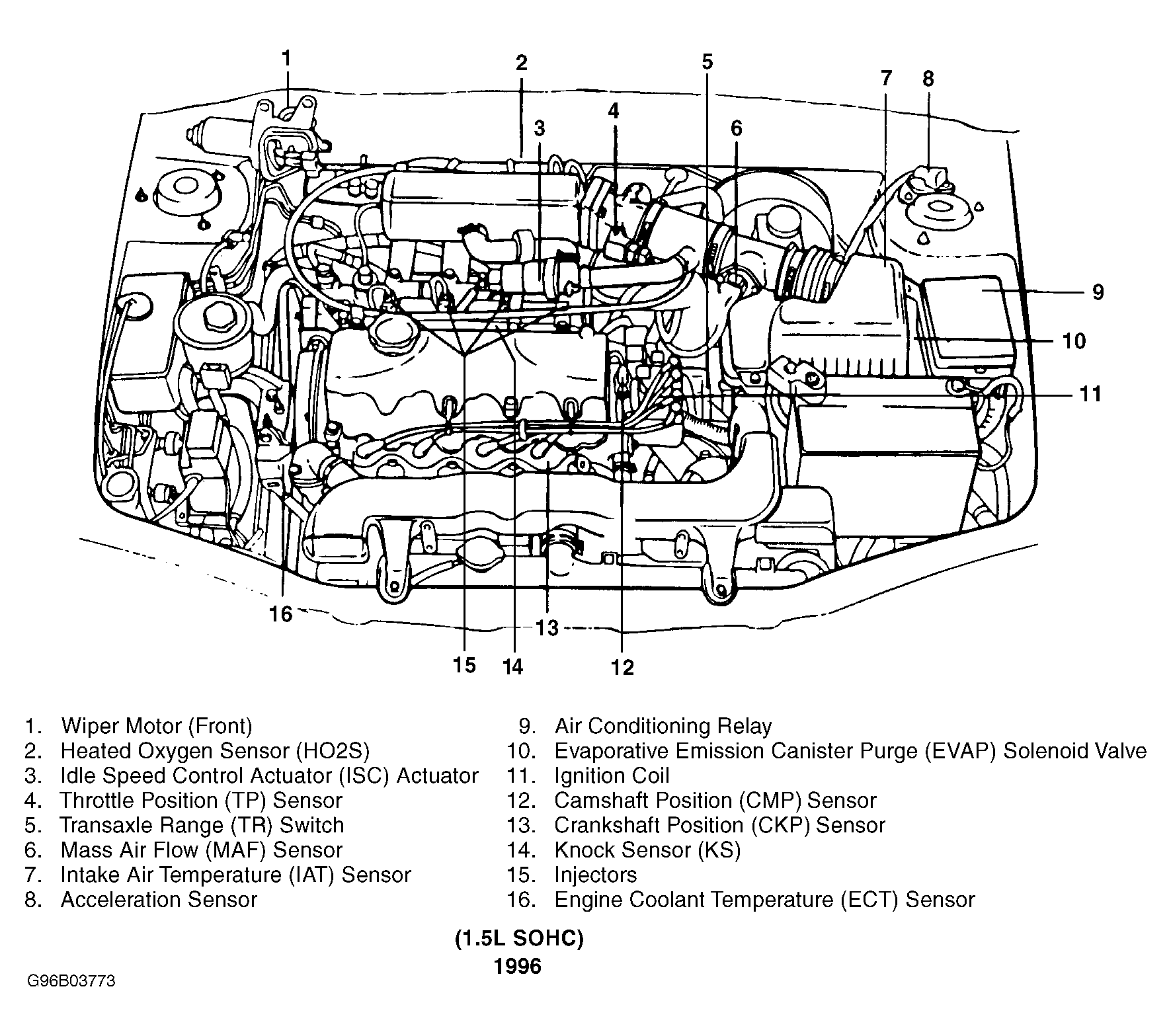

Fig 6: Engine Compartment (1.5L SOHC) (1996)
