Overhaul - A4AF2: Identification

Transaxle identification number is stamped on transaxle housing. See Fig 1. First digit, letter "G", indicates transaxle model. Second digit indicates model year, as letter "S" indicates 1995 models and letter "T" indicates 1996 models. Third digit, letter "T" indicates final gear ratio of 4.029. Fourth digit letter indicates transaxle vehicle application. Fifth digit is not used. Remaining digits are the transaxle serial number. Transaxle model and serial number may be required when ordering replacement components.

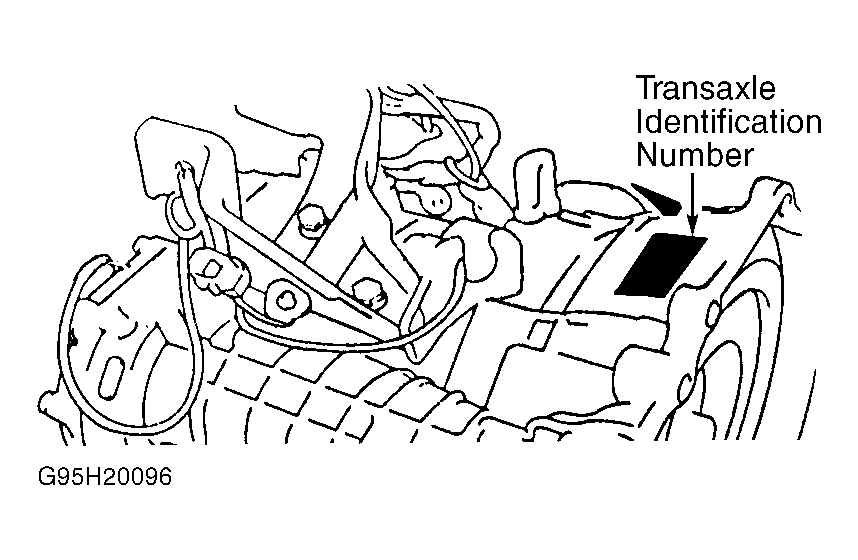

Fig 1: Locating Transaxle Identification Number
G95H20096Courtesy of HYUNDAI MOTOR CO.
