Component Location
Emission-related components are shown in illustration. See
Fig 1
.

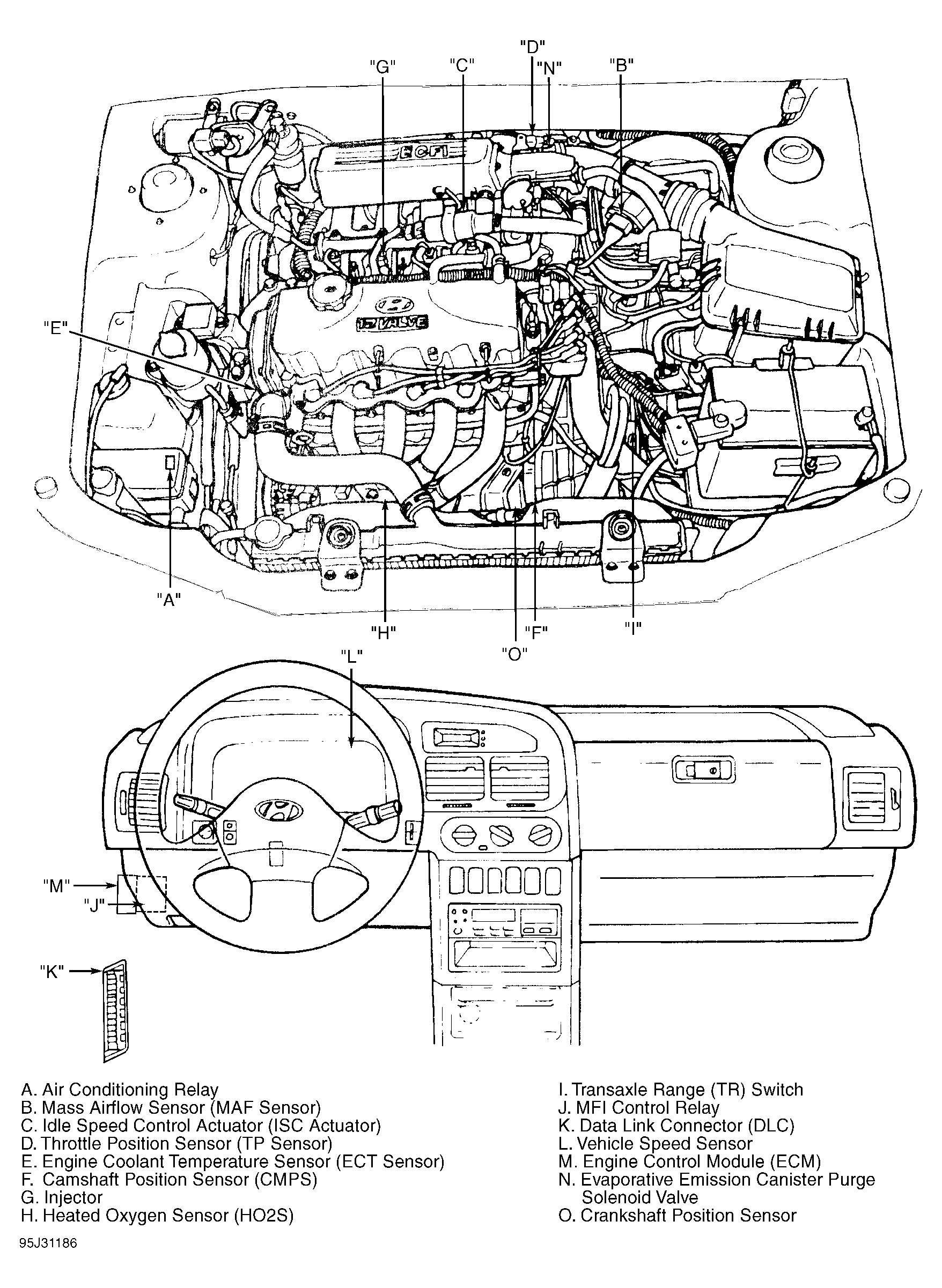

Fig 1: Identifying Emission-Related Components (Scoupe)
Courtesy of HYUNDAI MOTOR CO.
