Engine Controls - Tests W/Codes - 1.8L
>>
Self-Diagnostic System
>>
Component Location
Component Location
Emission-related components are identified in illustration. See
Fig 1
.

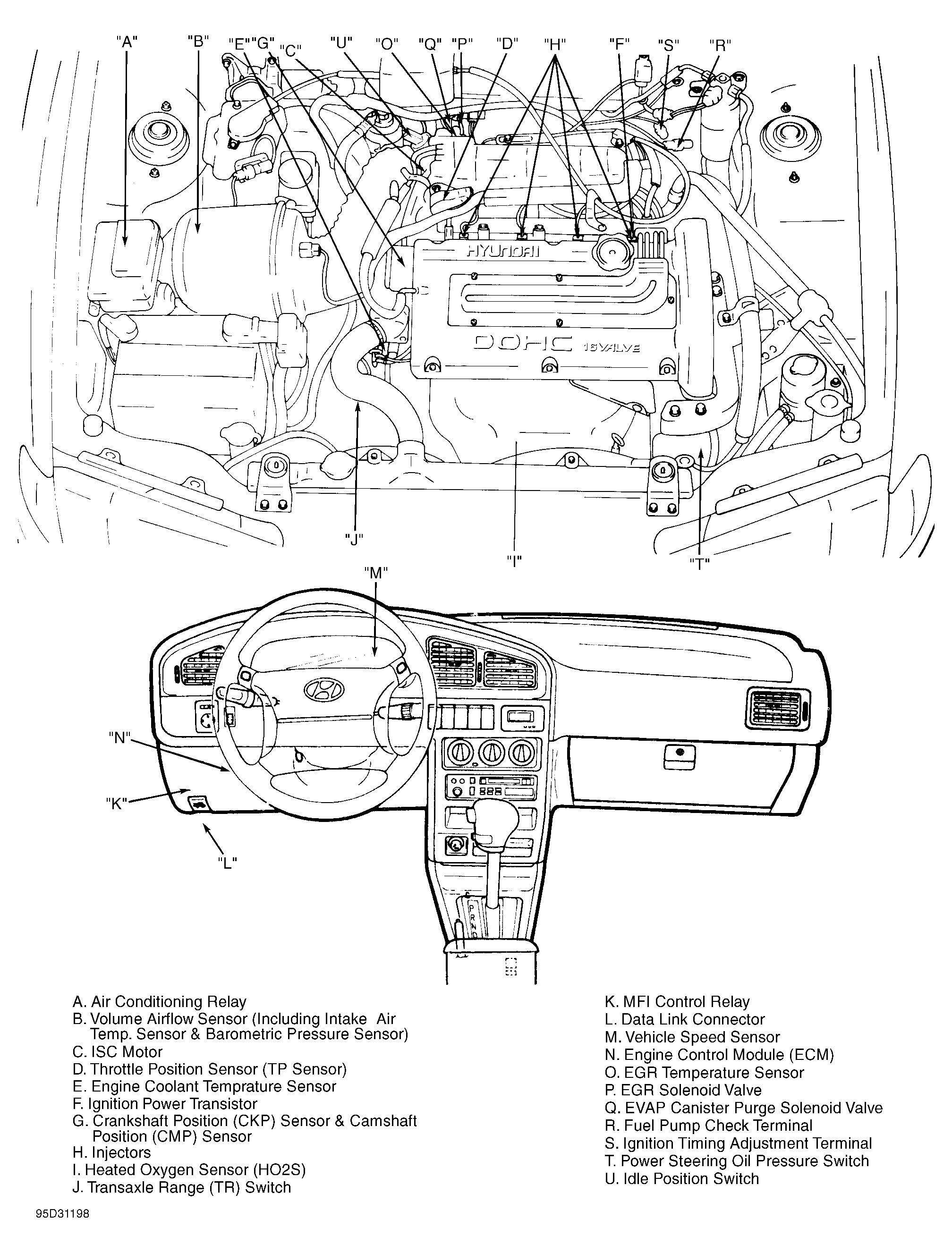

Fig 1: Identifying Emission-Related Components (Elantra)
Courtesy of HYUNDAI MOTOR CO.
