Alternator & Regulator: Overhaul

NOTE: Use illustration for exploded view of Mitsubishi alternator. See Fig 1.

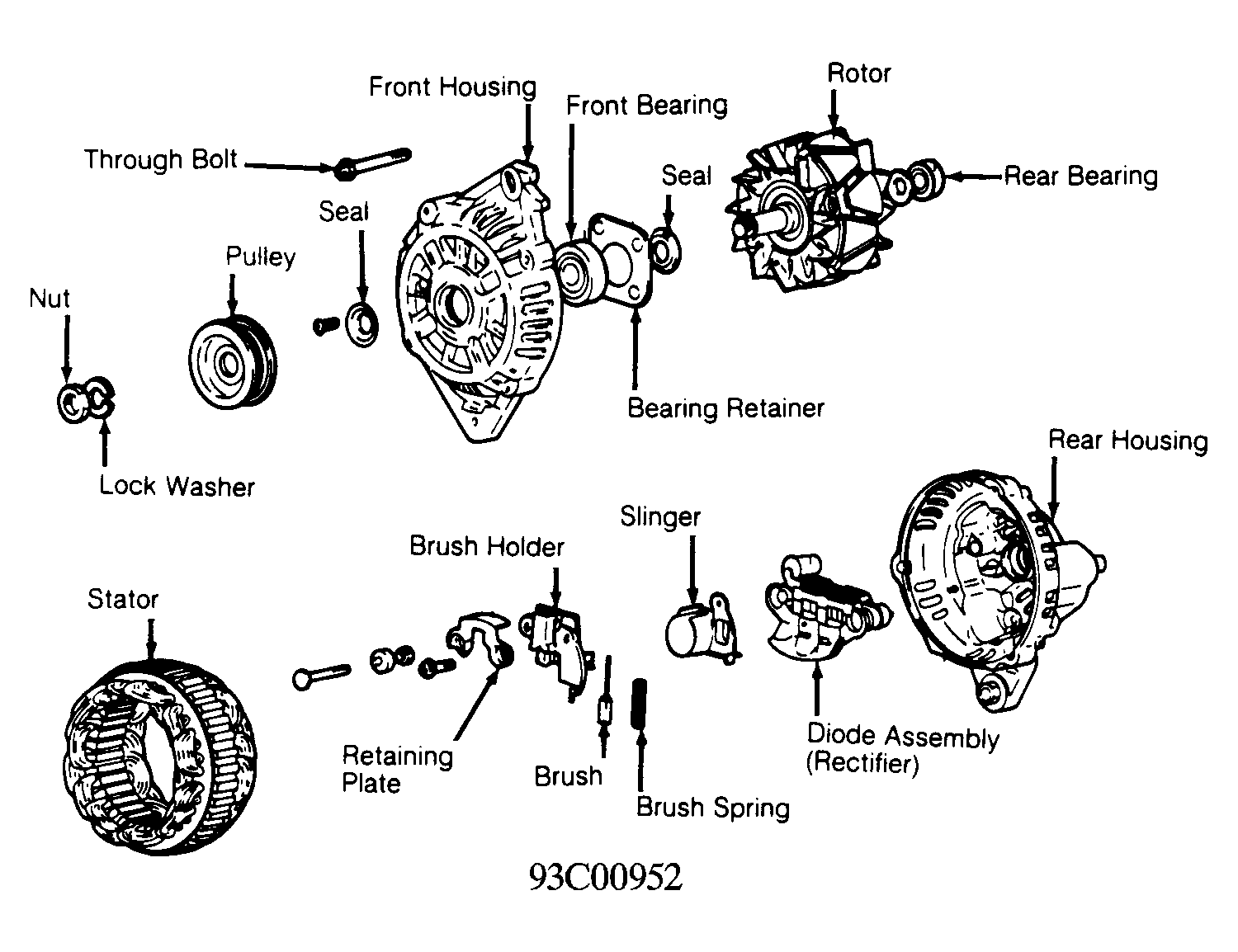

Fig 1: Exploded View Of Mitsubishi Alternator (Excel)
G93C00952Courtesy of HYUNDAI MOTOR SALES OF AMERICA
