Draining & Refilling Procedures: Transaxle

WARNING: This page is about a different car, the 1989 Mitsubishi Galant, 1988 Mitsubishi Galant Sigma, and 1987 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove drain plug(s) and drain fluid. See Fig 1. Some applications may contain a drain plug located in housing below drive axle shaft and in the oil pan. Remove oil pan. Remove oil filter/screen if necessary.
  2. If oil filter/screen is replaced, tighten bolts to specification. See TORQUE SPECIFICATIONS  table at end of article.
  3. Clean oil pan, replace gasket and install oil pan. Tighten oil pan bolts and drain plug to specification. Ensure dipstick hole area is clean and pour in approximately 2.4 qts. (4.0L) of Dexron II fluid into dipstick hole.
  4. Run engine for 2 minutes at idle. Shift transmission to each position, ending in Neutral. Add sufficient fluid to reach lower mark. After reaching normal operating temperature, fluid should be between upper and lower marks of "HOT" range on dipstick.

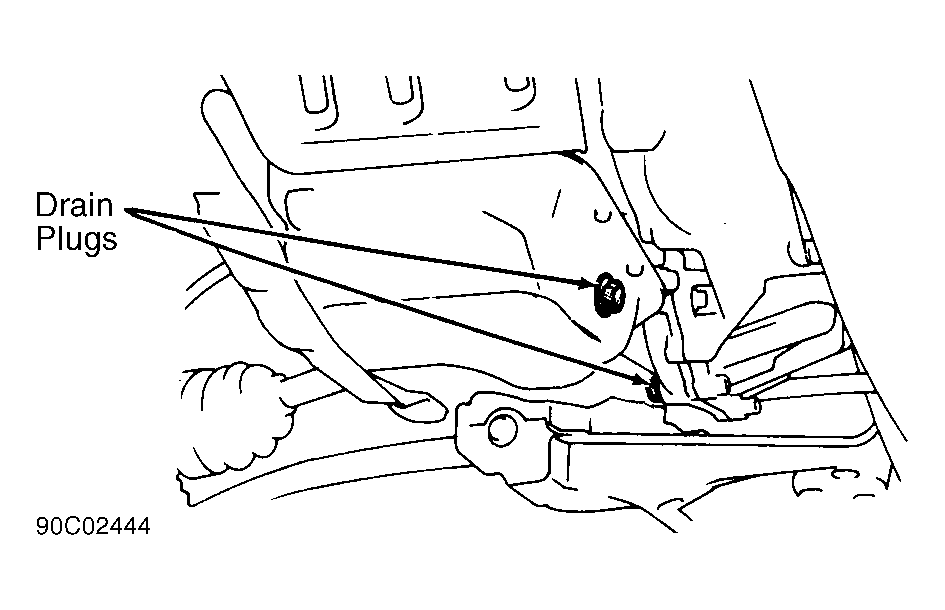

Fig 1: Drain Plug Location
G90C02444Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
