Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Fuse Block Under left side of dash.
Fusible Links
Main On battery cable positive terminal.
Sub In engine compartment relay block.

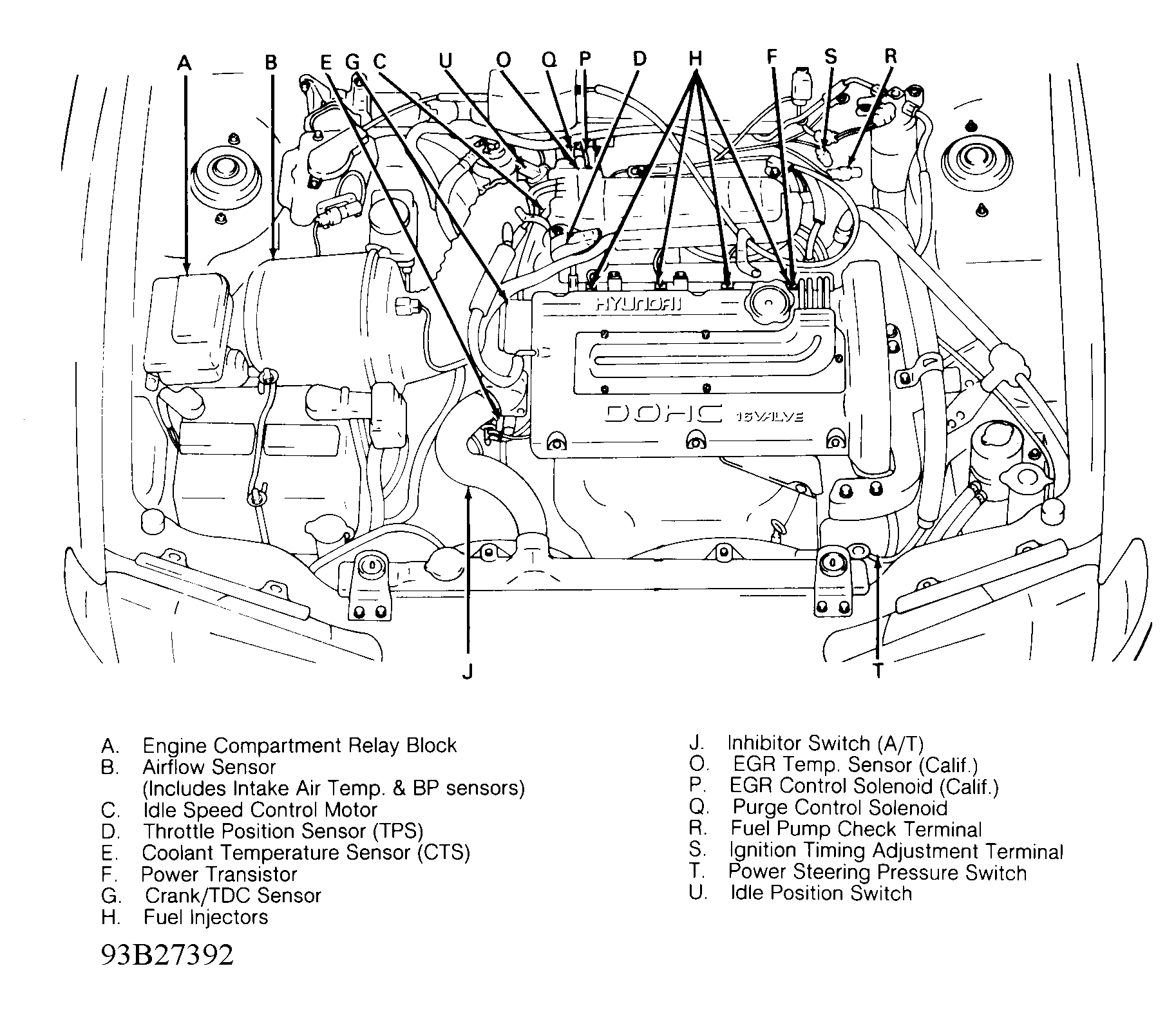

Engine Compartment Relay Block In right front corner of engine compartment, behind battery. See Figure .
Passenger Compartment Relay Block Under left side of dash, near fuse block.
