Differential Assembly: Disassembly

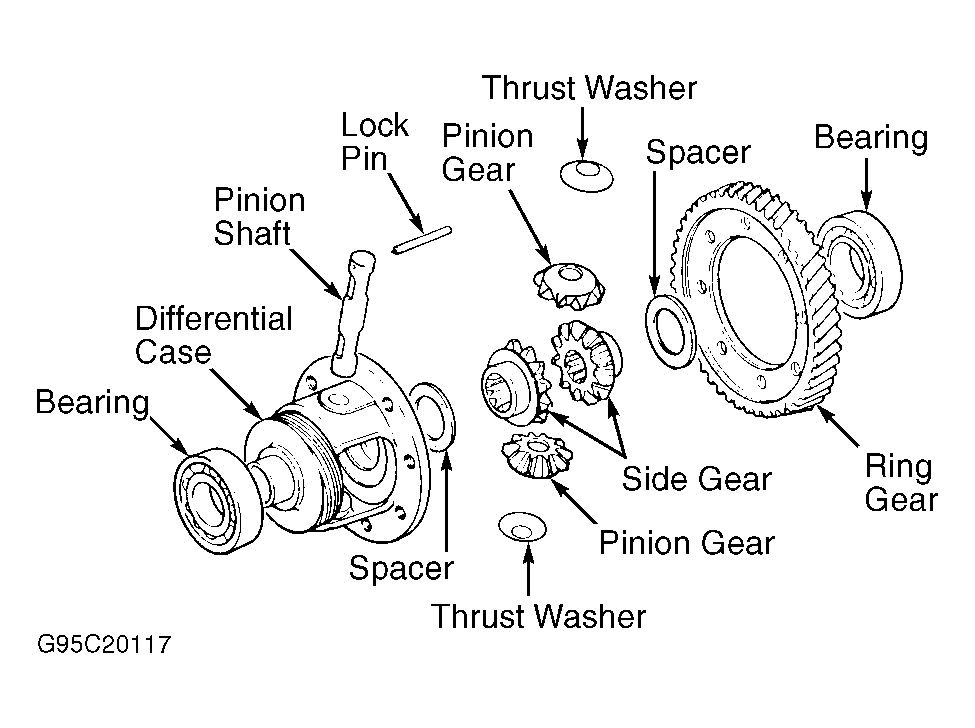

  1. Remove ring gear bolts and ring gear. Remove and discard lock pin. Remove pinion shaft, pinion gears and thrust washers. See Figure .
  2. Remove side gears and spacers. Mark spacer location for reassembly reference. If replacing bearings, using press and bearing splitter, press bearings from differential case.
