TIME & ALARM CONTROL MODULE COVER REVISION
TECHNICAL SERVICE BULLETIN
Reference Number(s): 93-90-012, Date of Issue:
September, 1993
TACM COVER REVISIONS
Model: 1991-93 Hyundai Scoupe
Group: Body Electrical
Bulletin No.: 93-90-012
Date: September, 1993
DESCRIPTION
This Technical Service Bulletin provides information concerning the Scoupe TACM (Time and Alarm Control Module) cover.

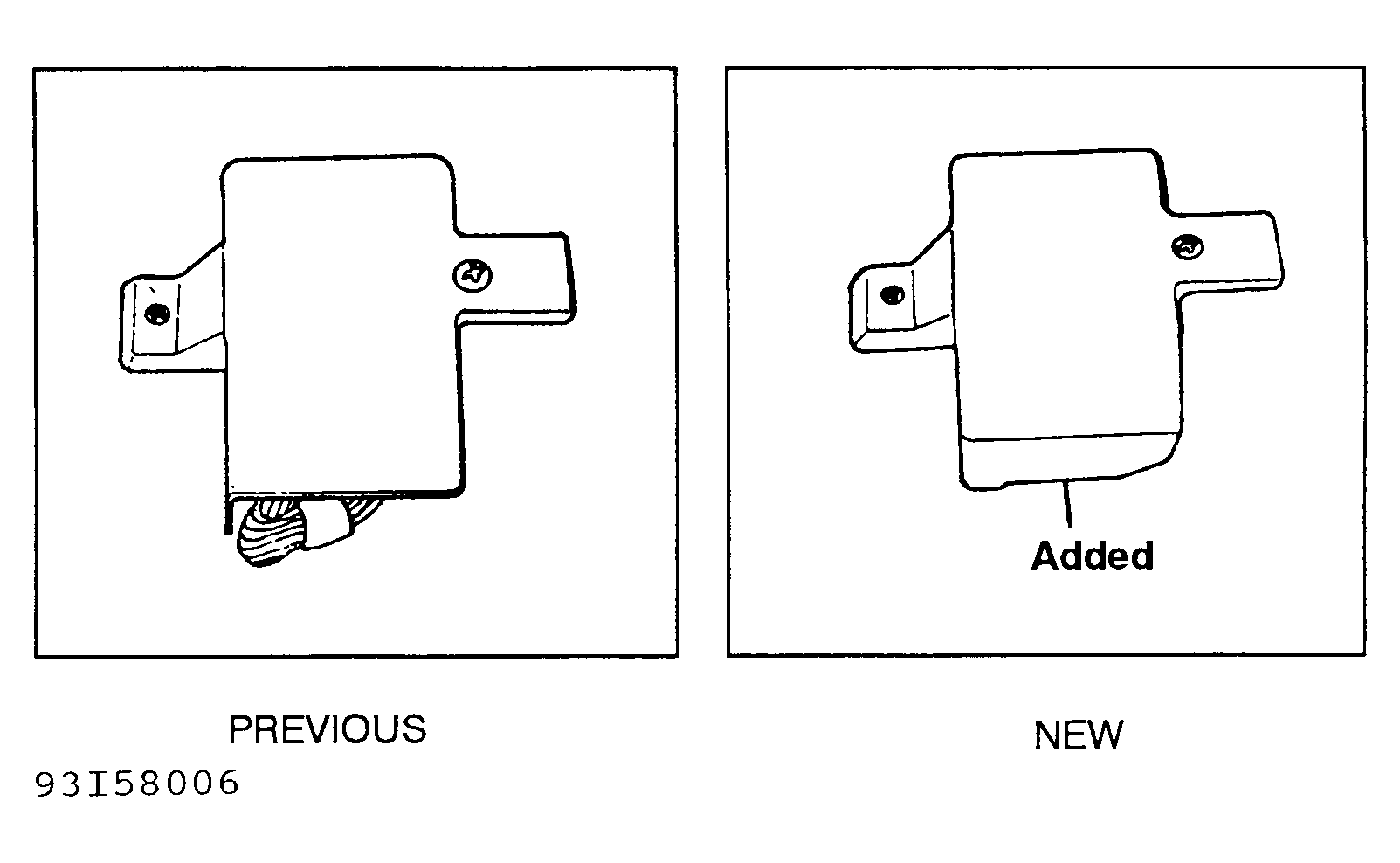

The TACM cover has been changed as shown in Fig 1 .
PARTS INFORMATION
| Part Description | Previous | New |
|---|---|---|
| Time and Alarm Control Module Cover | 95411-24000 | 95411-23000 |
SERVICE PROCEDURE

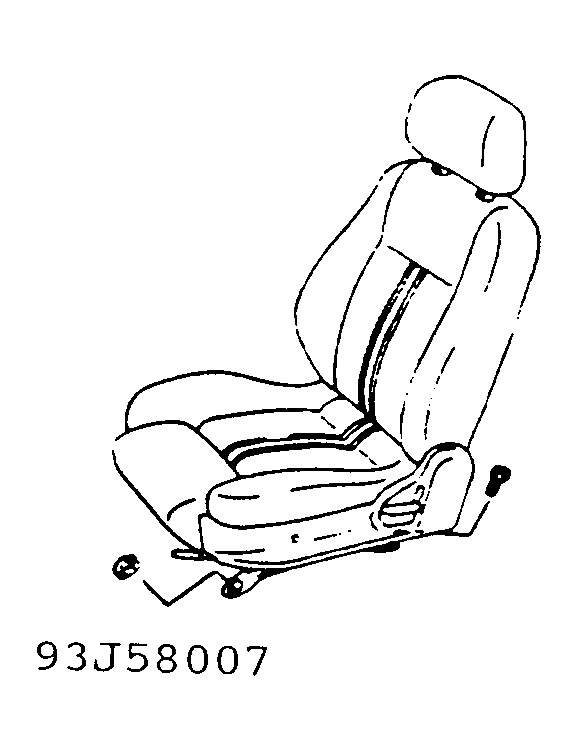

- Remove the right front seat. See Fig 2 .
- Remove the TACM cover.

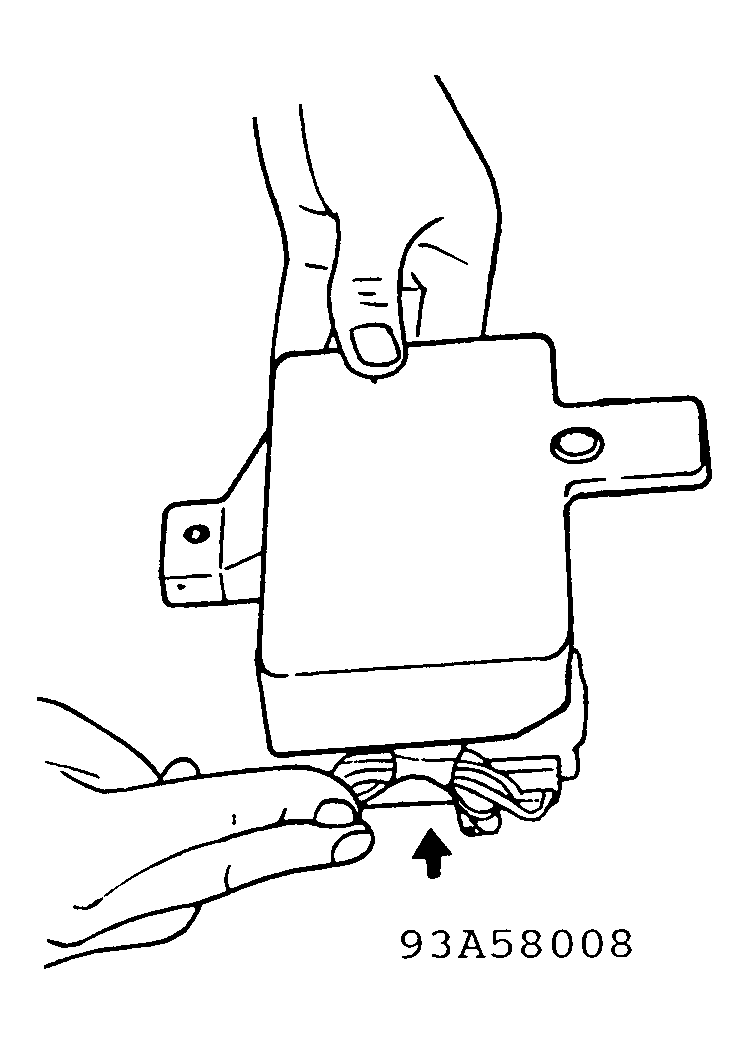

- Install the new TACM cover and completely insert the wires under the cover. See Fig 3 .
- Tighten the cover screws.
EFFECTIVE PRODUCTION DATE
Date: January 14, 1993
Serial No.: KMHVE22N3PU140716
INTERCHANGEABILITY
Code A, Current ---x----> New
Current <-------- New
