Trunk Lid Opener Switch

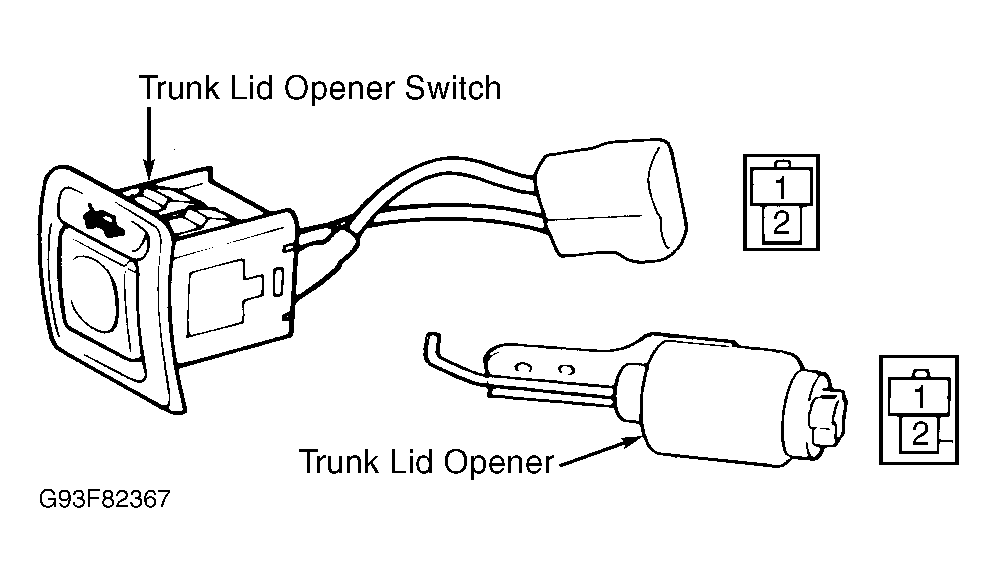

Remove trunk lid opener switch and check continuity between terminals. There should be continuity when the switch is ON and no continuity when the switch is OFF. SeeFigure .
