Description & Operation

Power window system consists of power window motors, window regulators, power window switches, fuses, and related wiring. See Fig 1 and Fig 2 . All power windows can be operated from driver's seat with ignition switch in ON position.

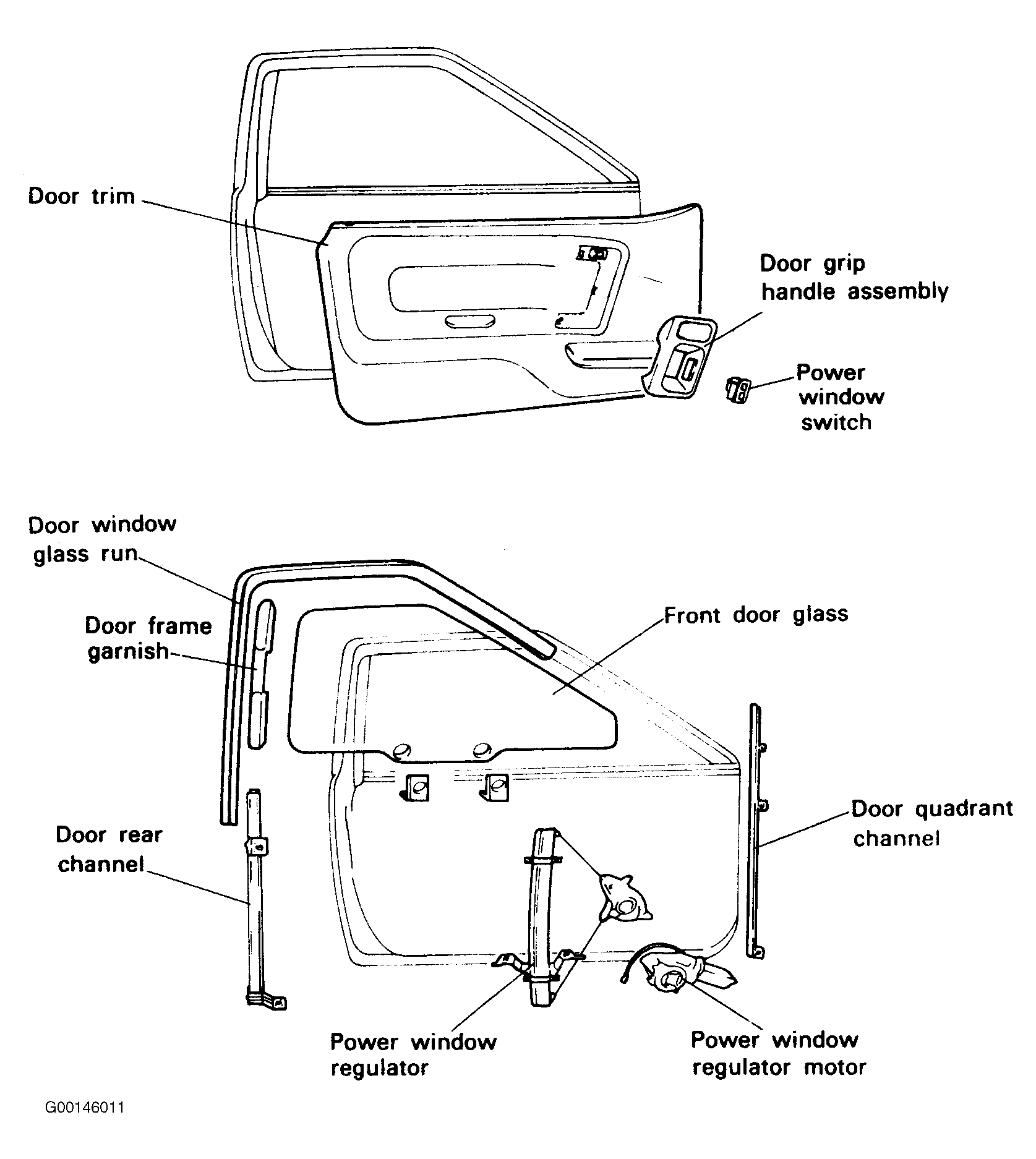

Fig 1: Identifying Power Window System Door Components

Courtesy of HYUNDAI MOTOR CO.

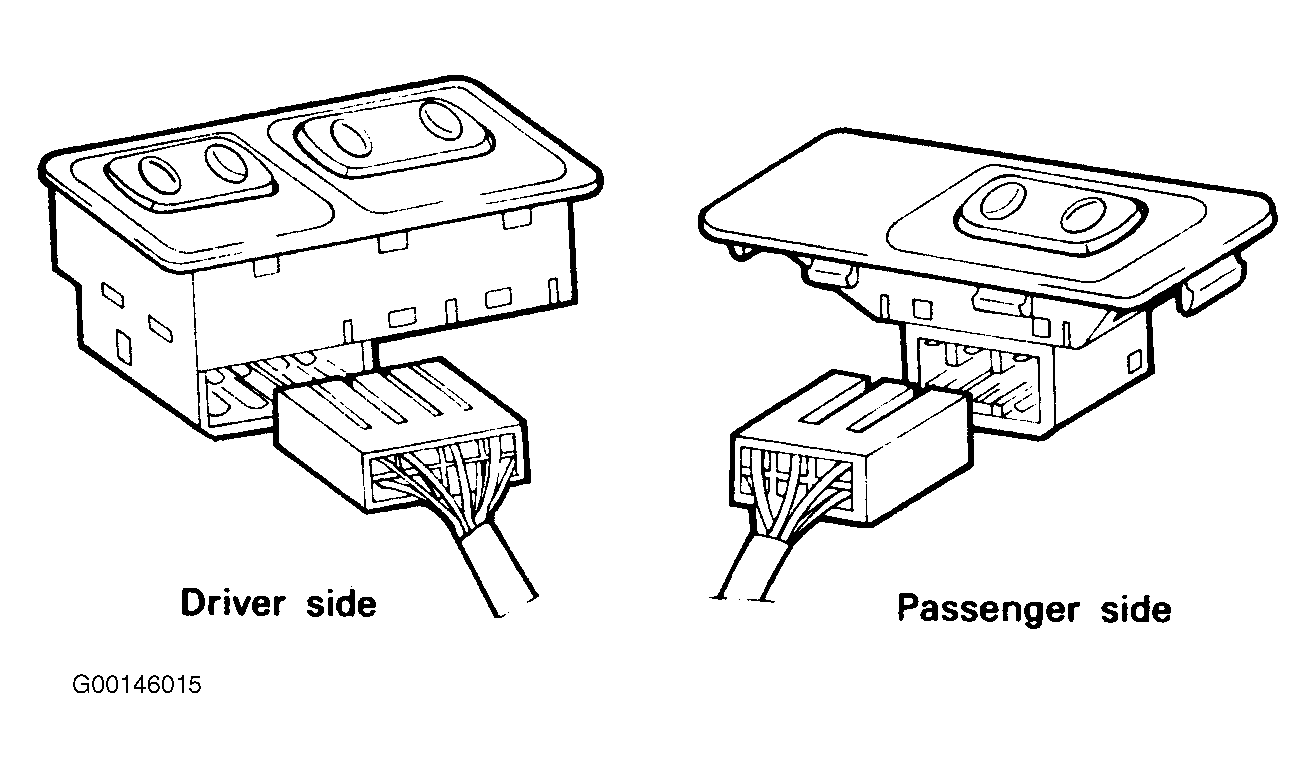

Fig 2: Identifying Power Window Switch Connections

Courtesy of HYUNDAI MOTOR CO.
