Color Code Plaque Locations (92-99-001)

Publication date: 1992-03-01
Reference number: 92-99-001

COLOR CODE PLAQUE LOCATIONS

TECHNICAL SERVICE BULLETIN

Reference Number(s): 92-99-001, Date of Issue: March, 1992

Model: All Hyundai Models

Group: Paint

Bulletin No.: 92-99-001

Date: March, 1992

The following provides the plaque locations on which the color codes are located. Refer to Fig 1 for actual location.

COLOR CODE PLAQUE LOCATION

Model	Production Date	Location
EXCEL/ SCOUPE	From beginning of production to 12/91 production	The color code is located on a plaque on the cowl in the engine compartment.
EXCEL/ SCOUPE	After 12/91 production	The color code is on a decal on the driver's pillar.
ELANTRA	Beginning of production through 8/20/91	There is no color code on the vehicle.
ELANTRA	8/21/91 through 12/91 production	The color code is located on a plaque on the cowl in the engine compartment.
ELANTRA	After 12/23/91 production	The color code is decal on the driver's jamb under atch.
SONATA	Beginning of production through 2/13/91	The color code is located on a plaque on the radiator core support.
SONATA	2/13/91 production through the end of the 1991 M.Y.	There is no color code on the vehicle.
SONATA	From 1992 M.Y. production	The color code is located on a decal on the driver's B-pillar.

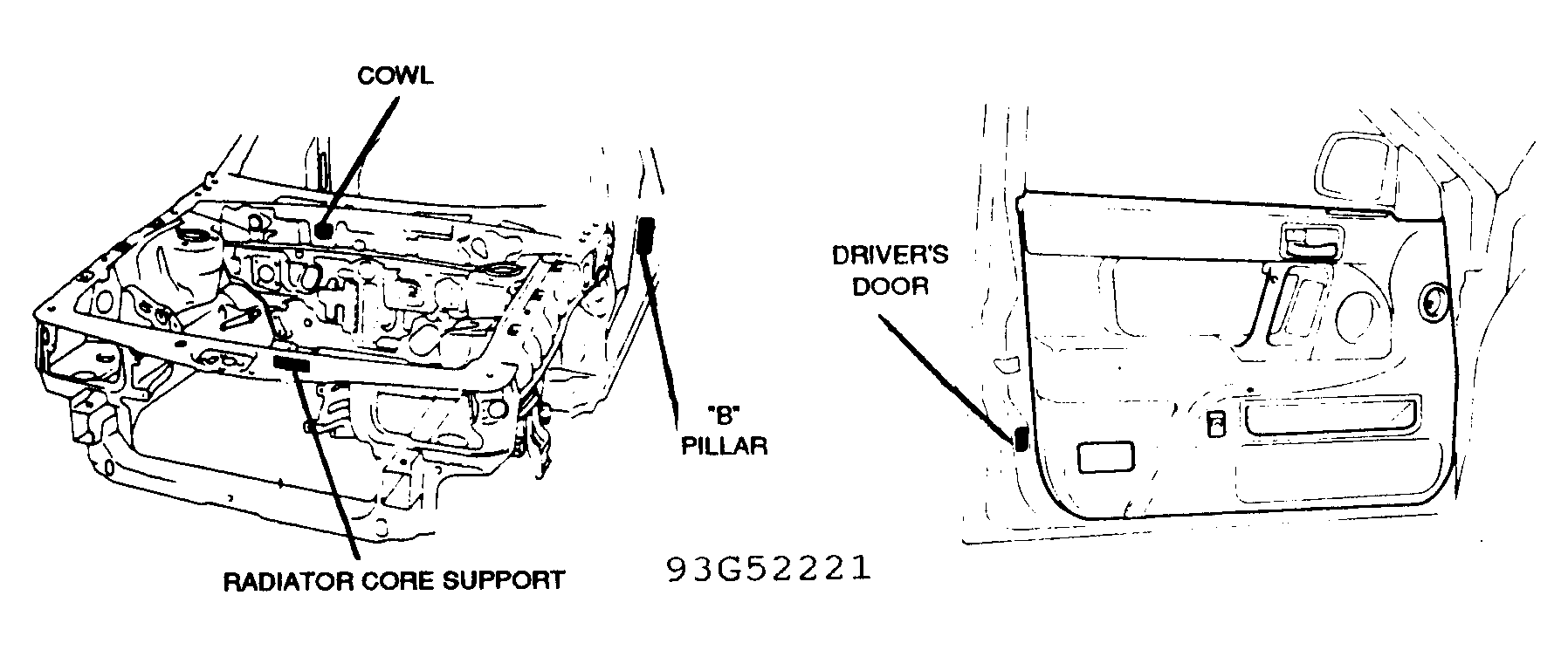

Fig 1: Color Code Plaque Locations
