Neutral Safety Switch & Control Cable

  1. Place gearshift lever in Neutral. Loosen control cable adjusting nuts at transaxle control lever, to allow slack in control cable. Loosen neutral safety switch bolts, and turn switch until .47" (12 mm) wide end of control lever aligns with .47" (12 mm) flange on switch body or until .20" (5 mm) diameter hole in lever and switch line up. See Fig 1 .
  2. Tighten neutral safety switch bolts to specification. See TORQUE SPECIFICATIONS  table. Ensure transaxle control lever and gearshift lever handle are in both in Neutral positions. Adjust cable adjusting nuts to remove slack in control cable. Ensure gearshift lever operates smoothly. Drive vehicle to ensure transaxle shifts into each position selected.

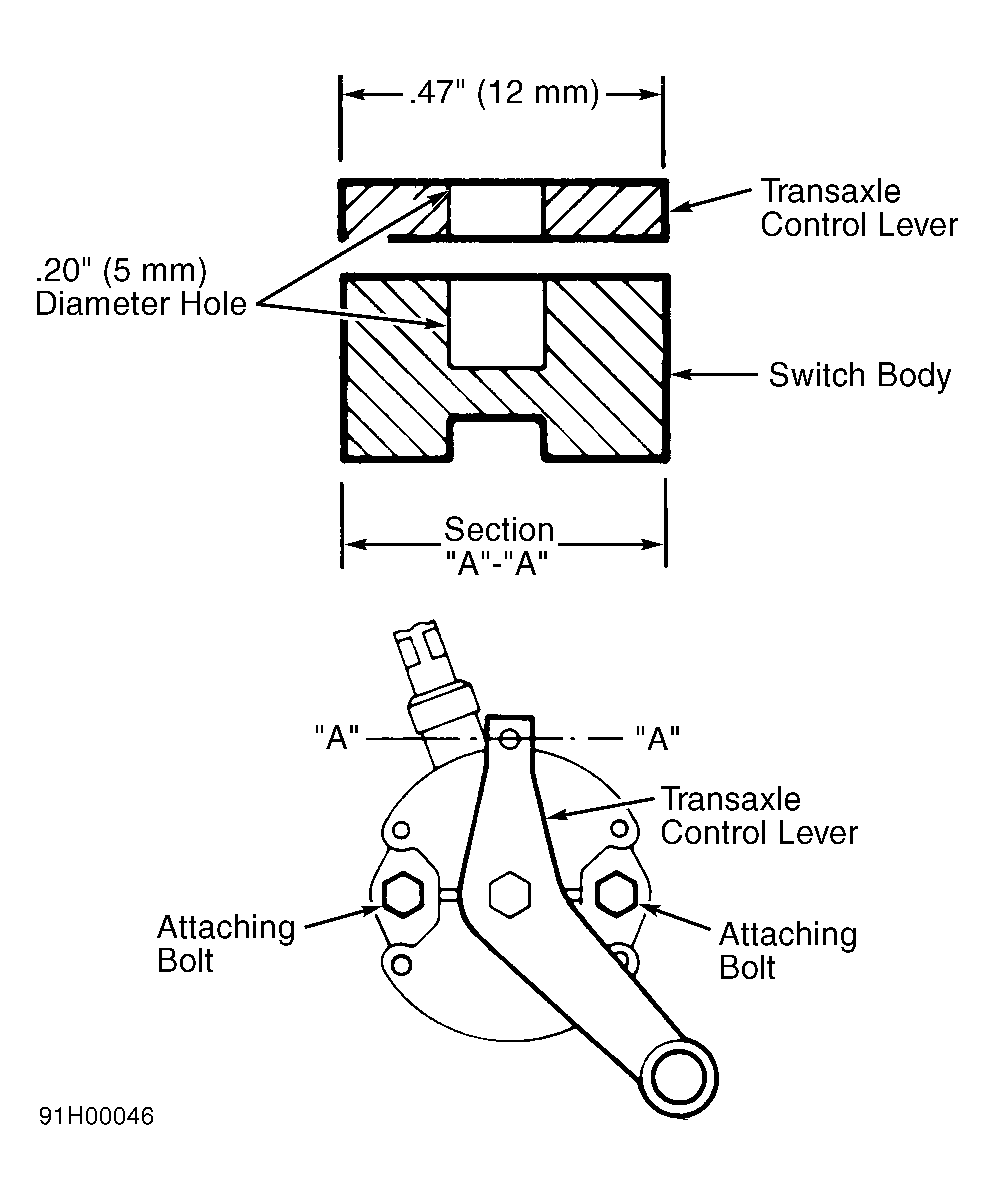

Fig 1: Adjusting Neutral Safety Switch
G91H00046Courtesy of HYUNDAI MOTOR CO.
