Rear Wiper Motor Test

Remove connector from wiper motor. Attach jumper lead from battery positive to terminal No. 1 of wiper motor connector. SeeFig 1 . Attach jumper from battery negative to terminal No. 4 of wiper motor connector. Wiper motor should operate. Replace as required.

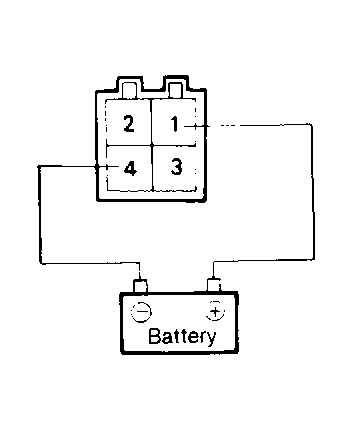

Fig 1: Testing Rear Wiper Motor

Courtesy of HYUNDAI MOTOR CO.
