Component Locations

COMPONENT LOCATIONS

Component	Location
Fuse No. 14 (10-Amps)	Dash Fuse Box
Power Mirror Motor	In Door Rear View Mirror
Power Mirror Switch	In Center Console, Next To Emergency Brake
System Ground (G11)	Under Center Console

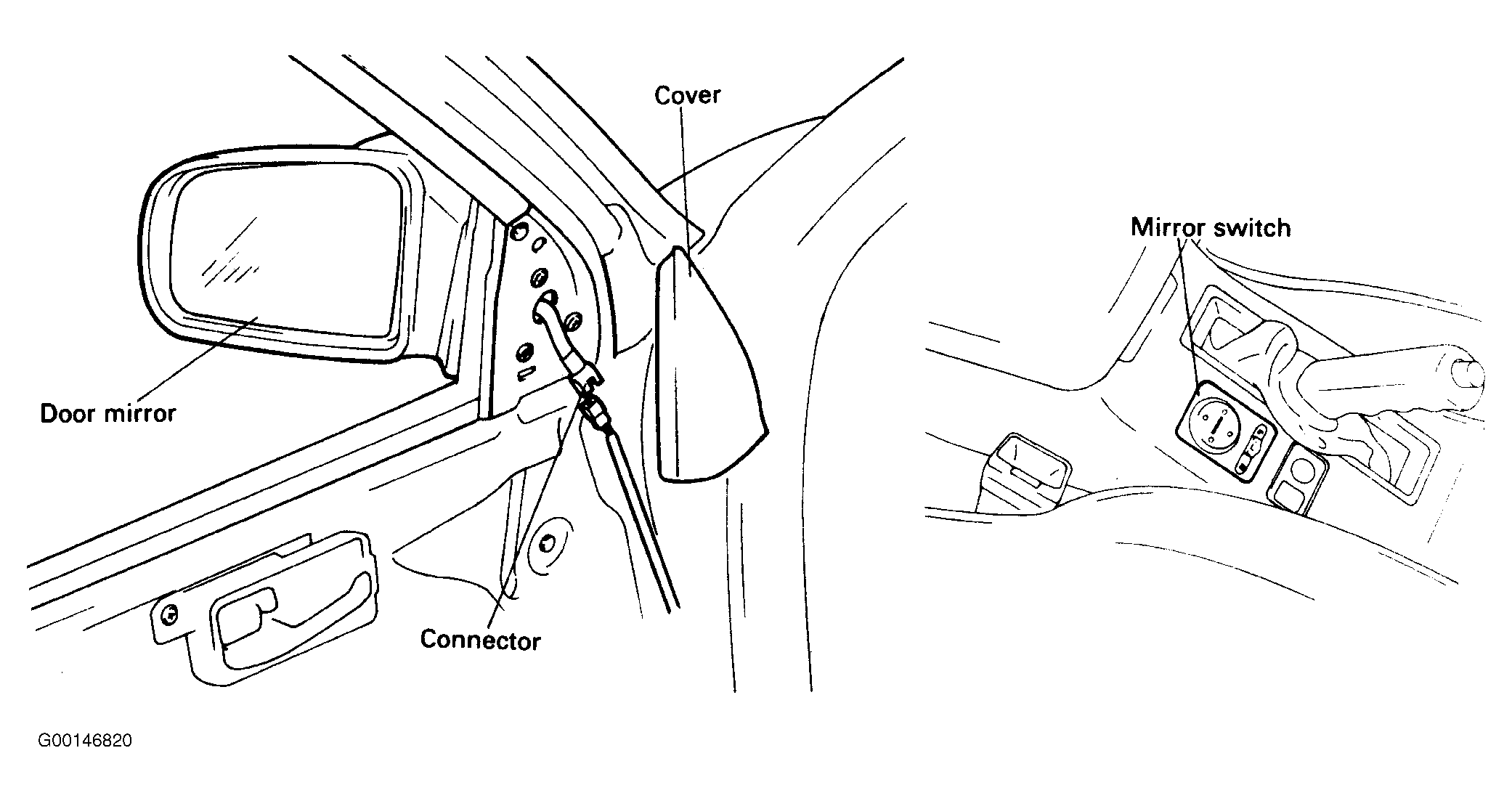

Fig 1: Locating Power Mirror Components

G00146820

Courtesy of HYUNDAI MOTOR CO.

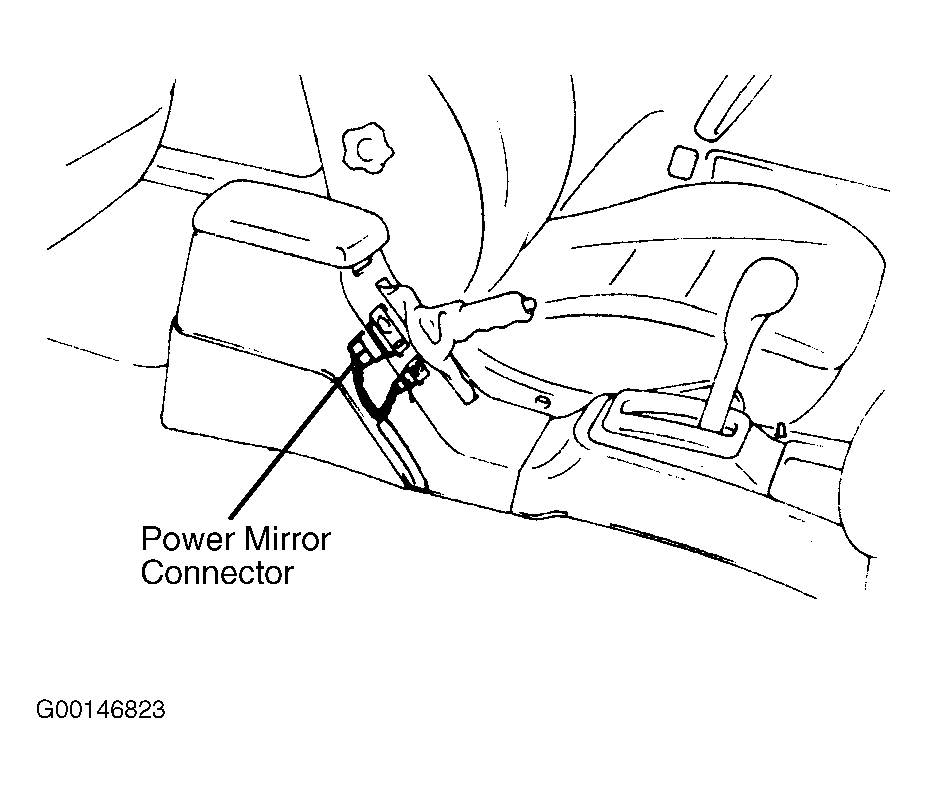

Fig 2: Locating Power Mirror Switch Connector

G00146823

Courtesy of HYUNDAI MOTOR CO.

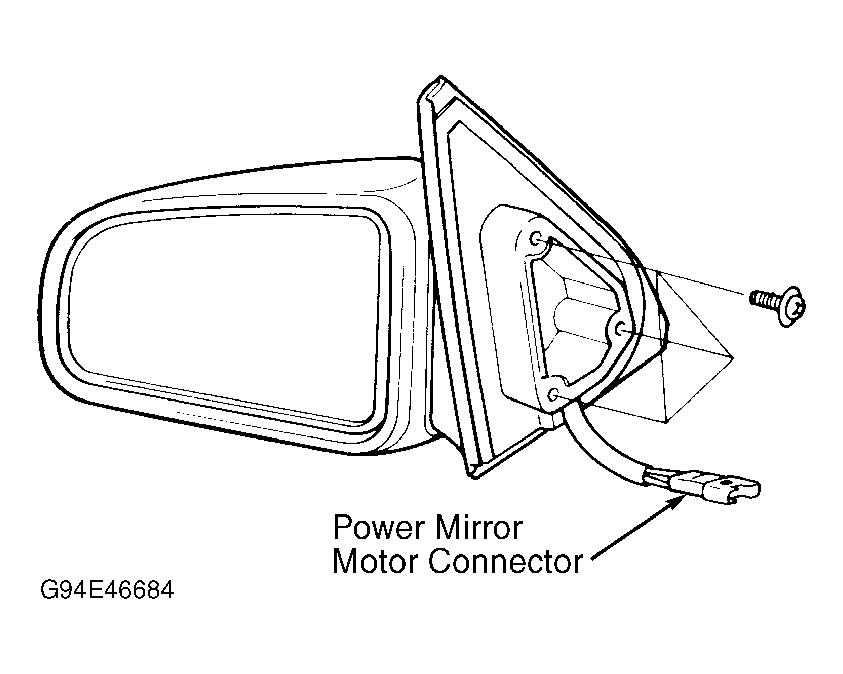

Fig 3: Locating Power Mirror Motor Connector

G94E46684

Courtesy of HYUNDAI MOTOR CO.

Fig 4: Locating Power Mirror System ground (G11)

G00146824

Courtesy of HYUNDAI MOTOR CO.
