Alternator & Regulator: Overhaul

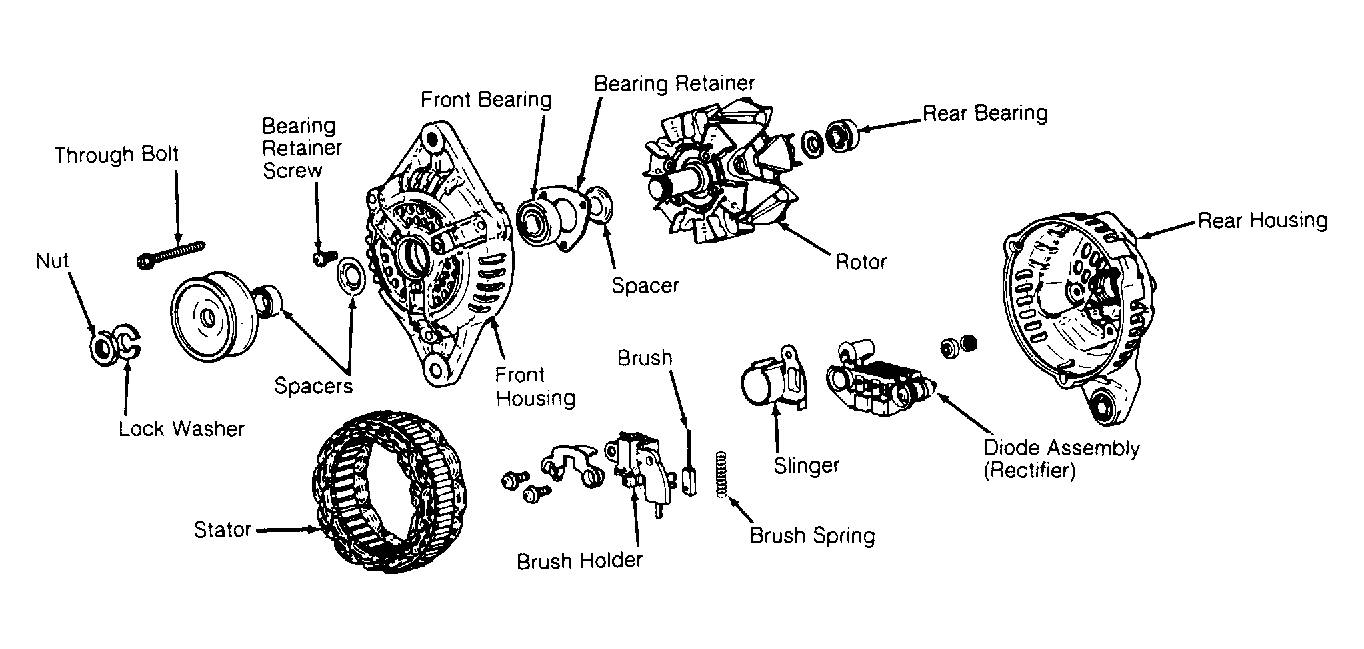

Fig 1: Exploded View of Mitsubishi Alternator
Courtesy of HYUNDAI MOTOR SALES OF AMERICA.
Courtesy of HYUNDAI MOTOR SALES OF AMERICA.
