Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Fuse Block | Under left side of dash. | |
| Fusible Links | At positive terminal of battery. | |
| Relay Blocks | ||

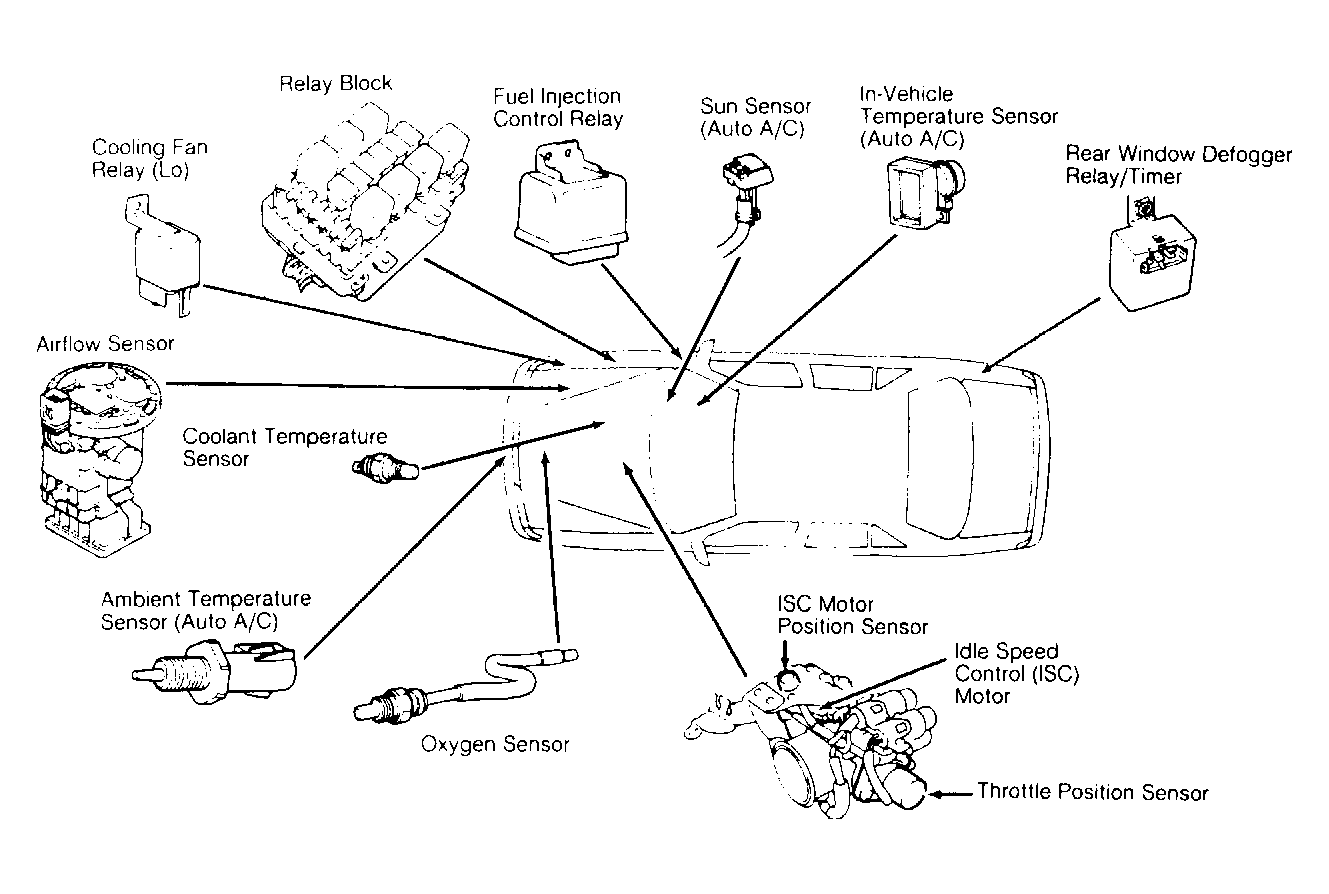

| Engine Compartment | Above right inner fender. See Figure & Figure . | |
| Passenger Compartment | Under left side of dash. | |

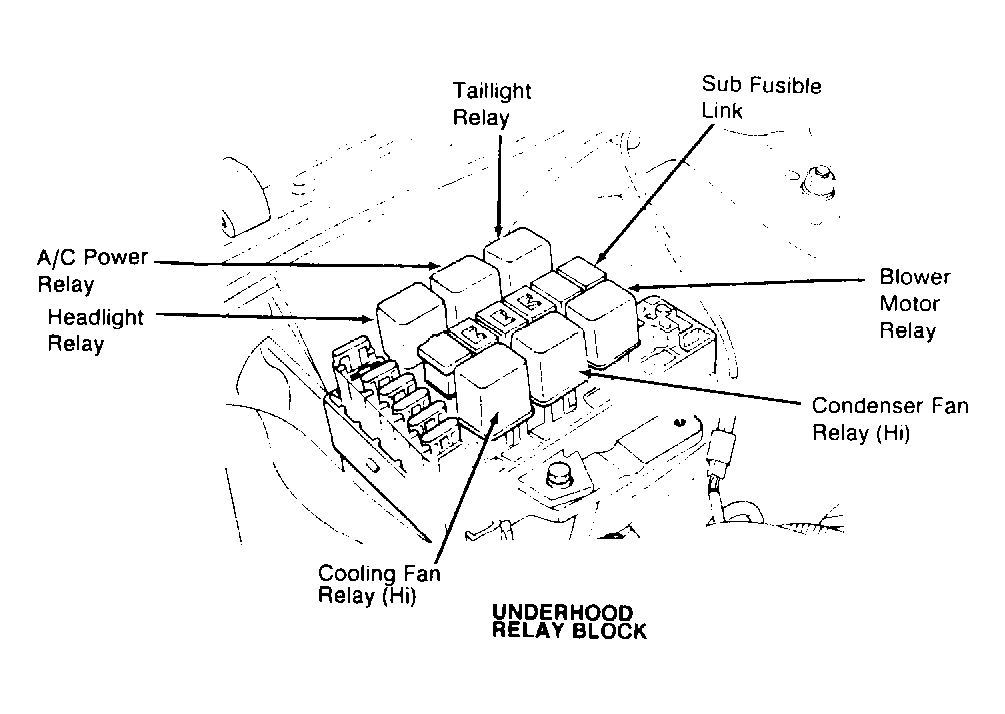

| Sub-Fusible Link | In engine compartment relay box, between relay banks. See Figure . | |
