Component Locations

COMPONENT LOCATIONS

Component Location
Engine Compartment Fuse/Relay Block Right side of engine compartment, in front of shock tower.
Ground G200 Behind left kick panel.
Passenger Compartment Fuse Block Under left side of instrument panel, behind kick panel. See Fig 3 .
Passenger Compartment Relay Block Under left side of instrument panel. See Fig 2 .
Power Window Relay In passenger compartment relay block.

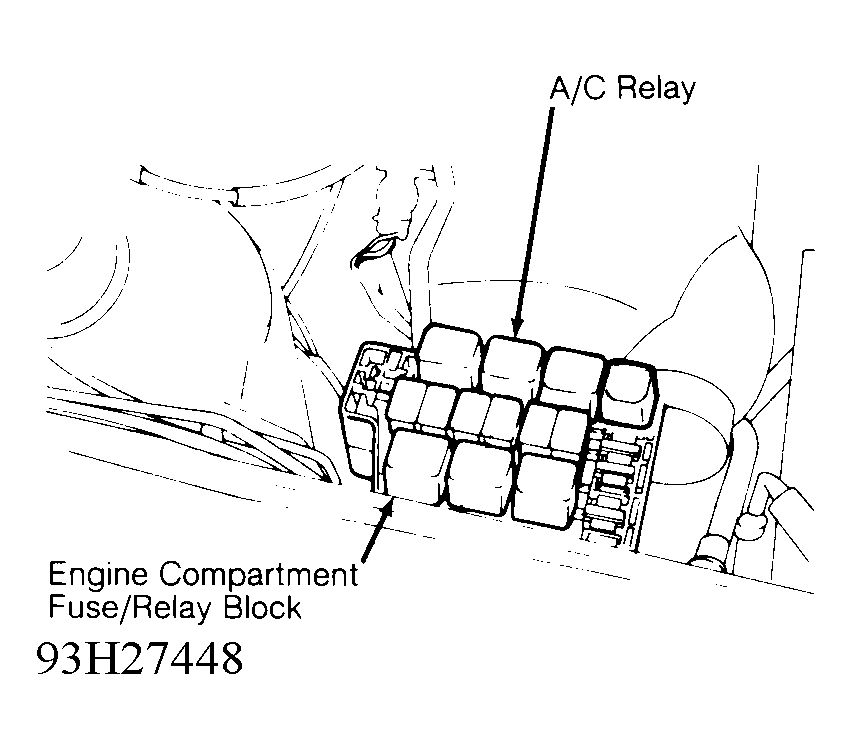

Fig 1: Locating Engine Compartment Fuse/Relay Block
G93H27448

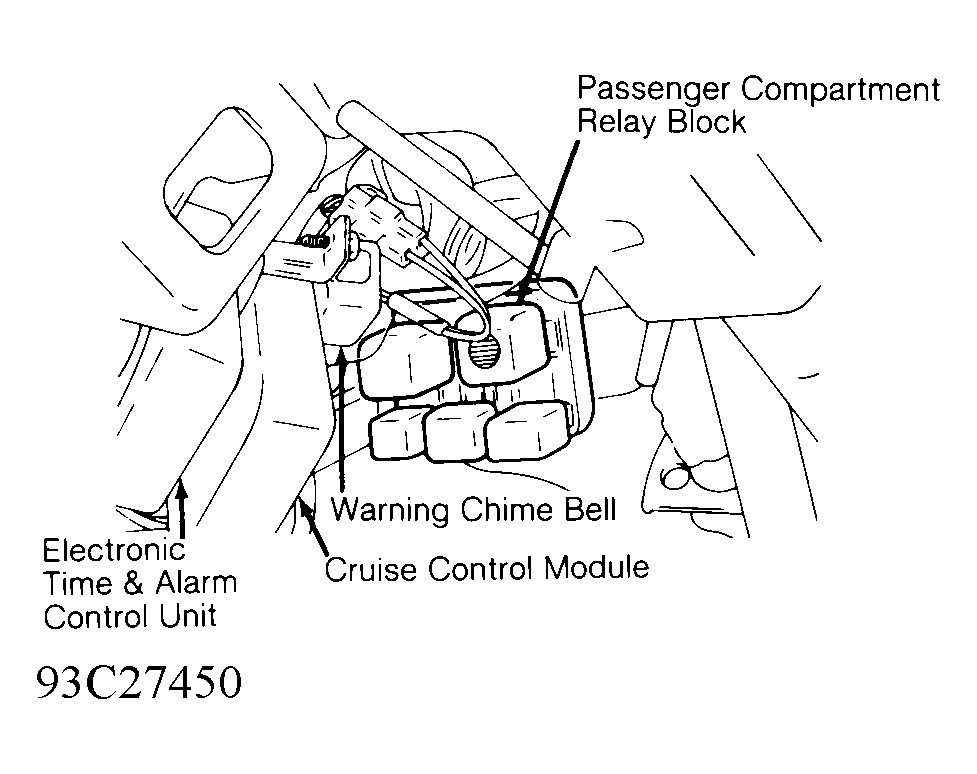

Fig 2: Locating Passenger Compartment Relay Block
G93C27450

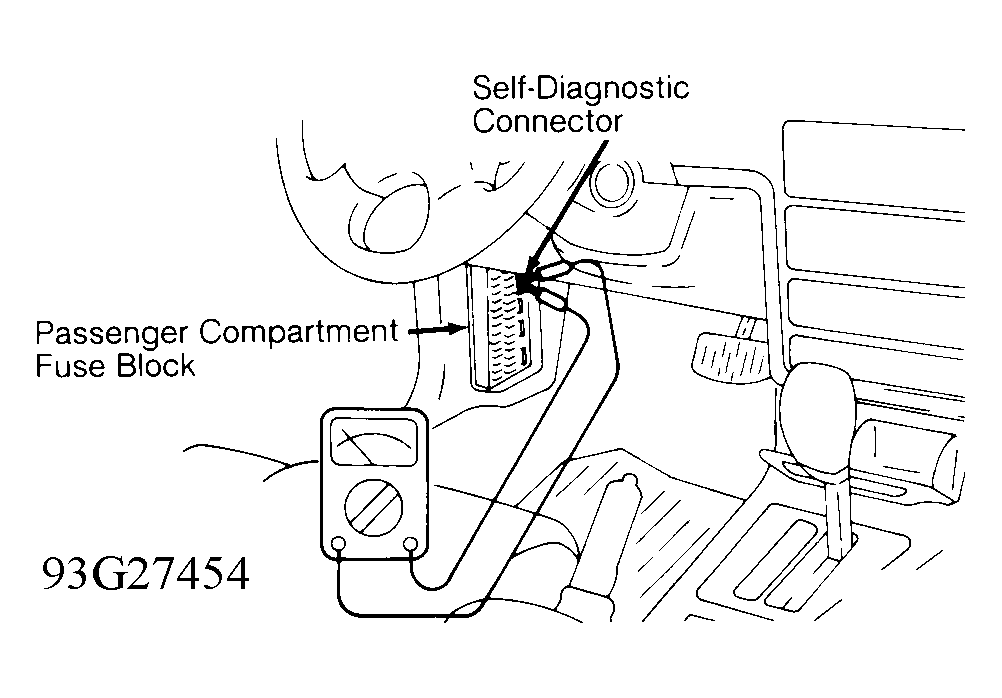

Fig 3: Locating Passenger Compartment Fuse Block
G93G27454
