Neutral Safety Switch

Place manual control lever in "N" position. Turn neutral safety switch body until .472" (12 mm) wide end of manual control lever overlaps switch body flange. See Fig 1 . Tighten 2 attaching bolts to 88-102 INCH lbs. (10-11.5 N.m)

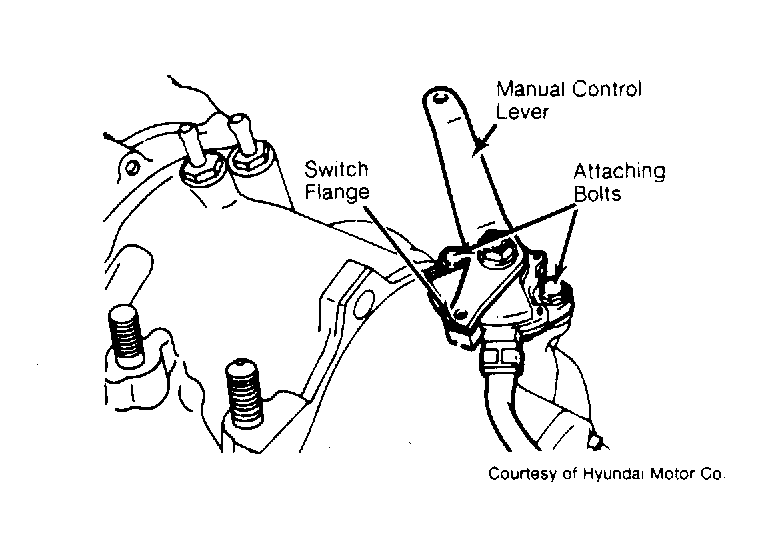

Fig 1: Adjusting Neutral Safety Switch
G82811Courtesy of HYUNDAI MOTOR CO.
