Temperature Lever

This lever sets position of blend-air door to direct flow of air through heater core (HOT position), around heater core (COLD position), or mixture of both (modulated temperature between full HOT and full COLD).

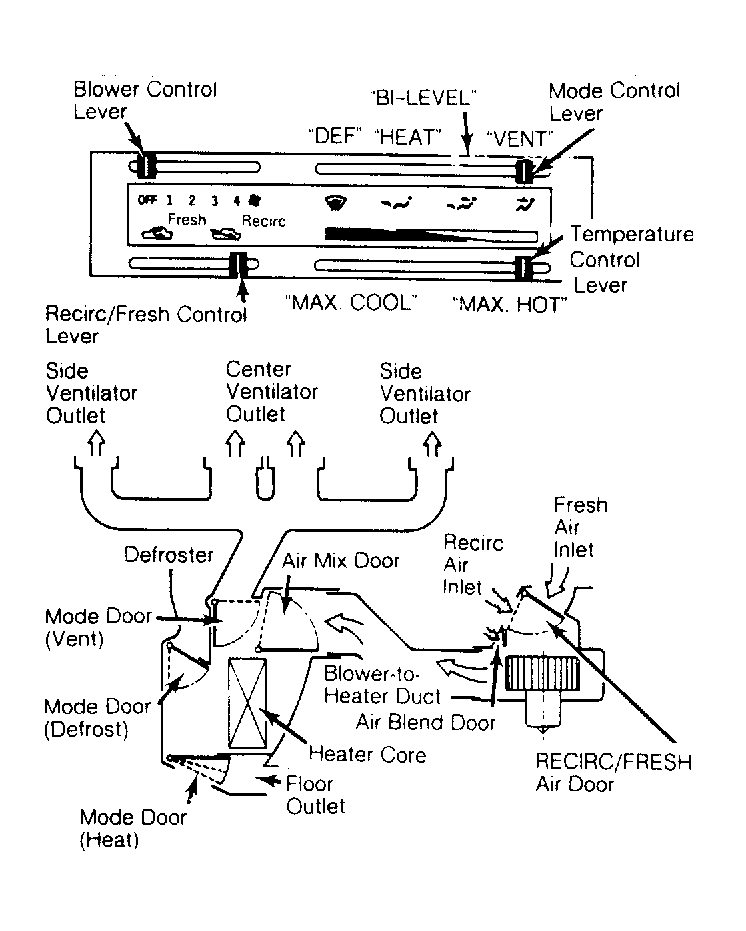

Fig 1: System Operation Schematic

Fig 2: Mode Control Cable Adjustment

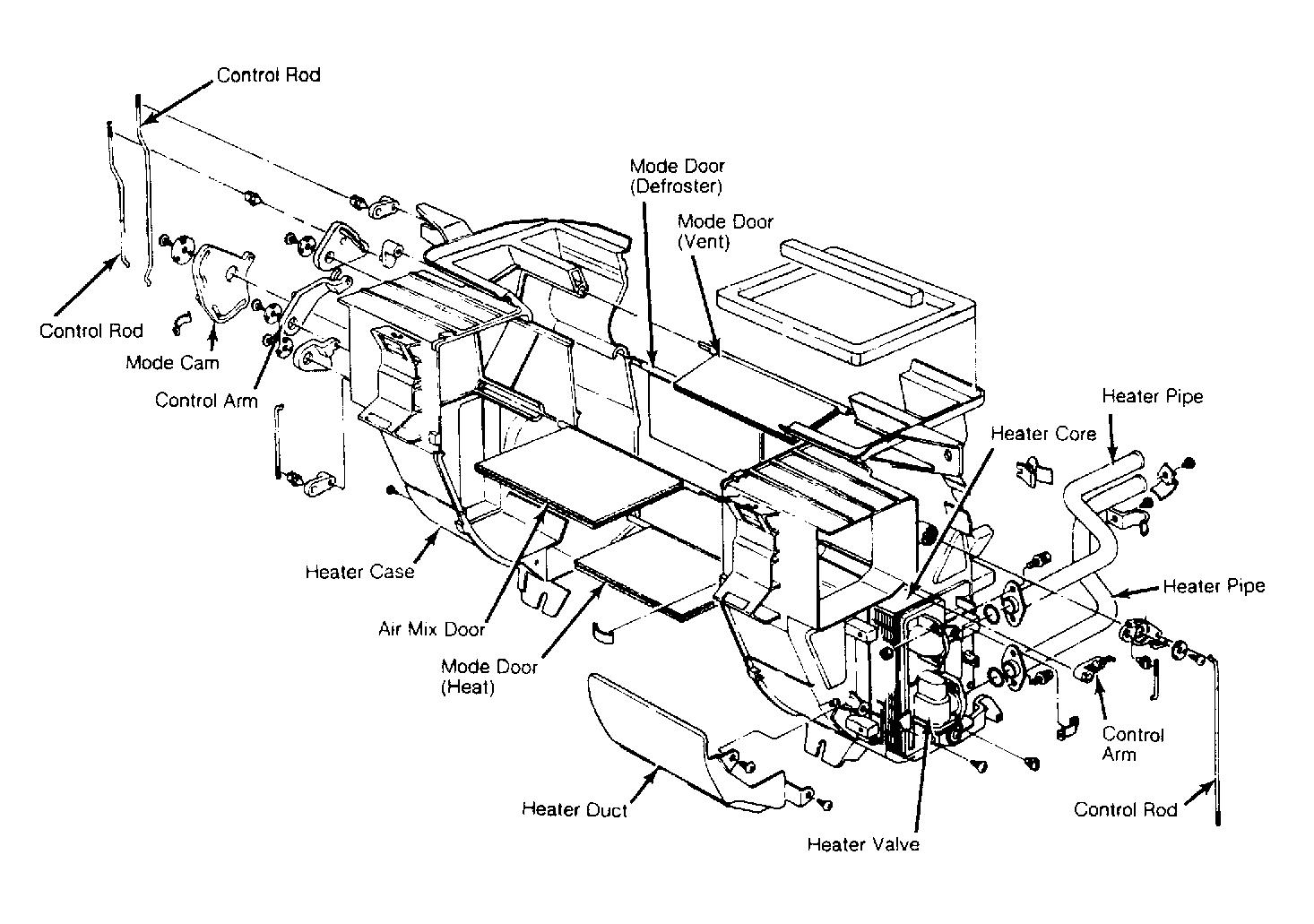

Fig 3: Exploded View of Heater Unit
