Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Water Outlet
    GM637653Courtesy of GENERAL MOTORS CORP.
  1. Position the water outlet housing to the cylinder head.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the water outlet housing bolts and tighten to 10 N.m (89 lb in).
  3. Install the power steering pump bracket. Refer to Power Steering Pump Bracket Replacement .

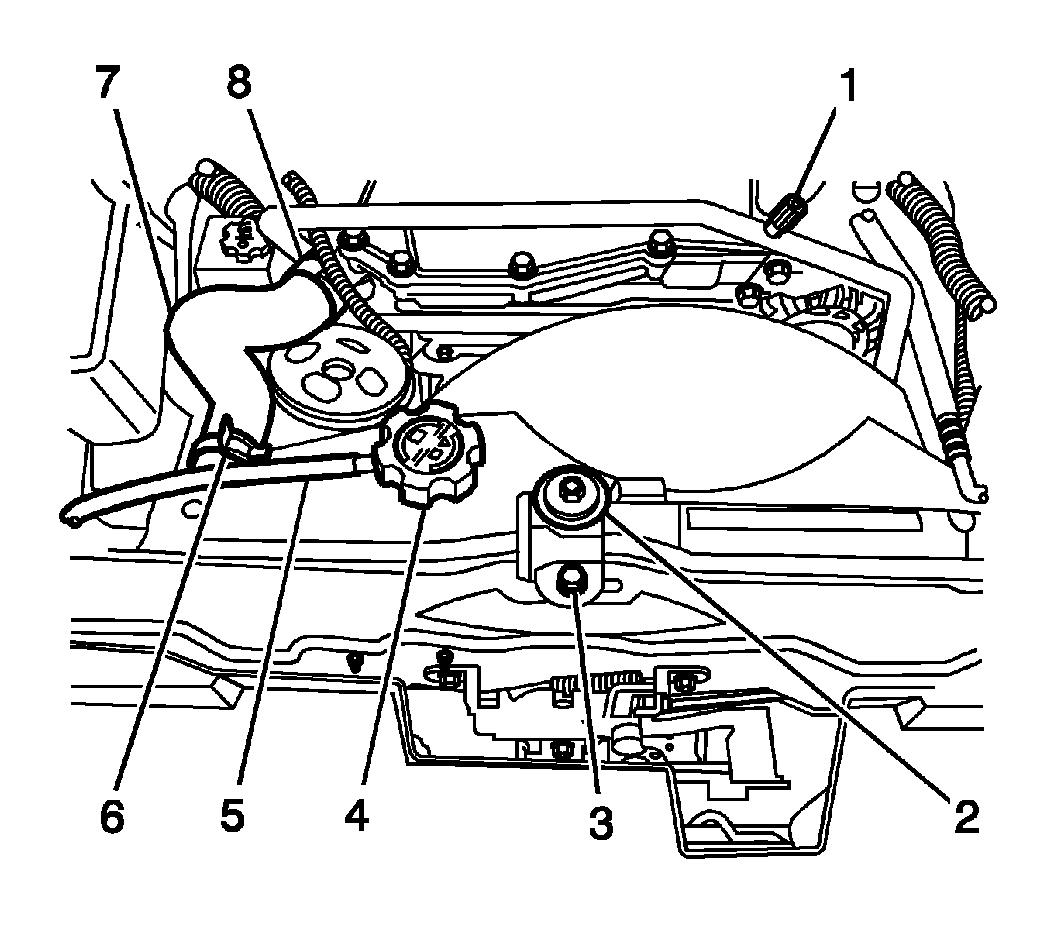

    4. Fig 2: Locating Radiator Outlet Hose To Water Outlet Housing Clamp
    GM1222591Courtesy of GENERAL MOTORS CORP.
  4. Position the J 38185  to the clamp (8) in order to connect the radiator outlet hose (7) to the water outlet housing. See Special Tools .
  5. Fill the cooling system. Refer to Cooling System Draining and Filling (Static Fill)  or Cooling System Draining and Filling (Vac N Fill) .
  6. Inspect all sealing surfaces for leaks after starting the engine.
