Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

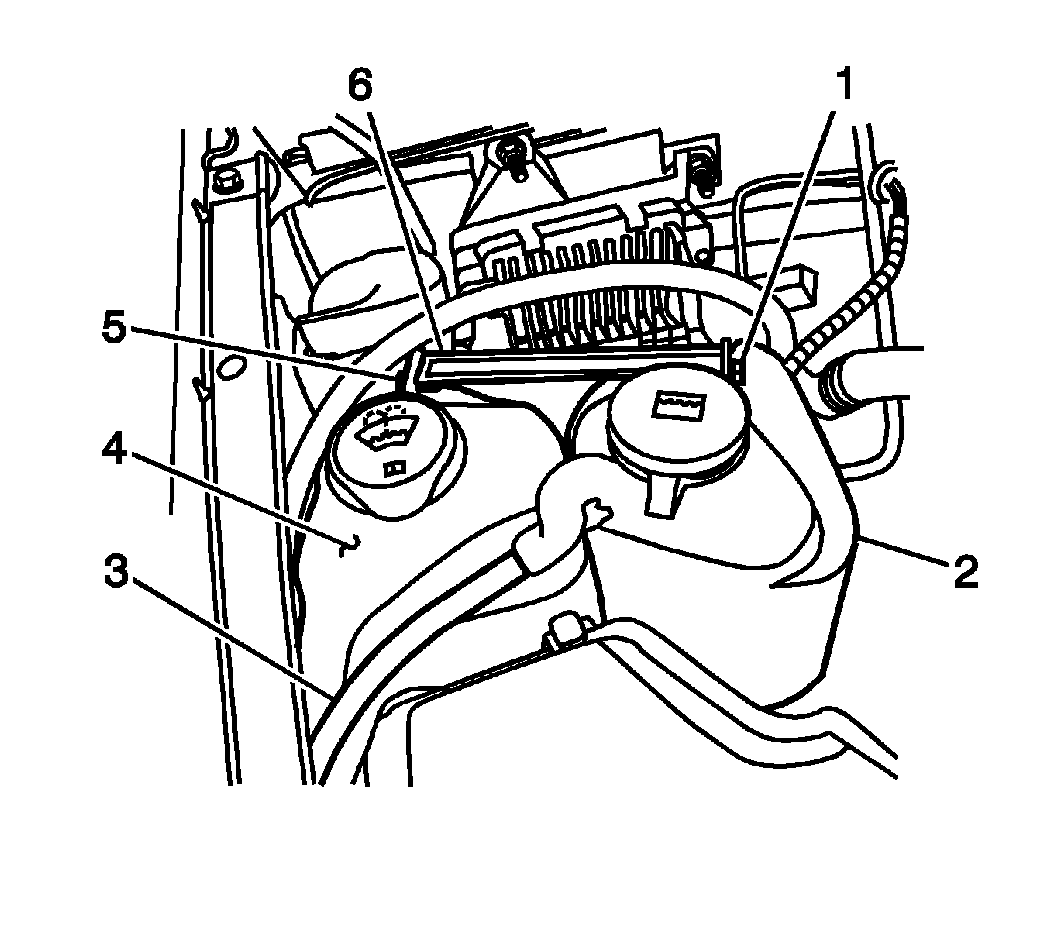

    Fig 1: Locating Radiator Vent Inlet Hose
    GM1222584Courtesy of GENERAL MOTORS CORP.
  1. Install the radiator vent inlet hose (3) to the coolant recovery reservoir (2).
  2. Install the retaining clips to the radiator vent inlet hose.
  3. Install the radiator vent inlet hose to the radiator.
  4. Fill the cooling system. Refer to Cooling System Draining and Filling (Static Fill)  or Cooling System Draining and Filling (Vac N Fill) .
