Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

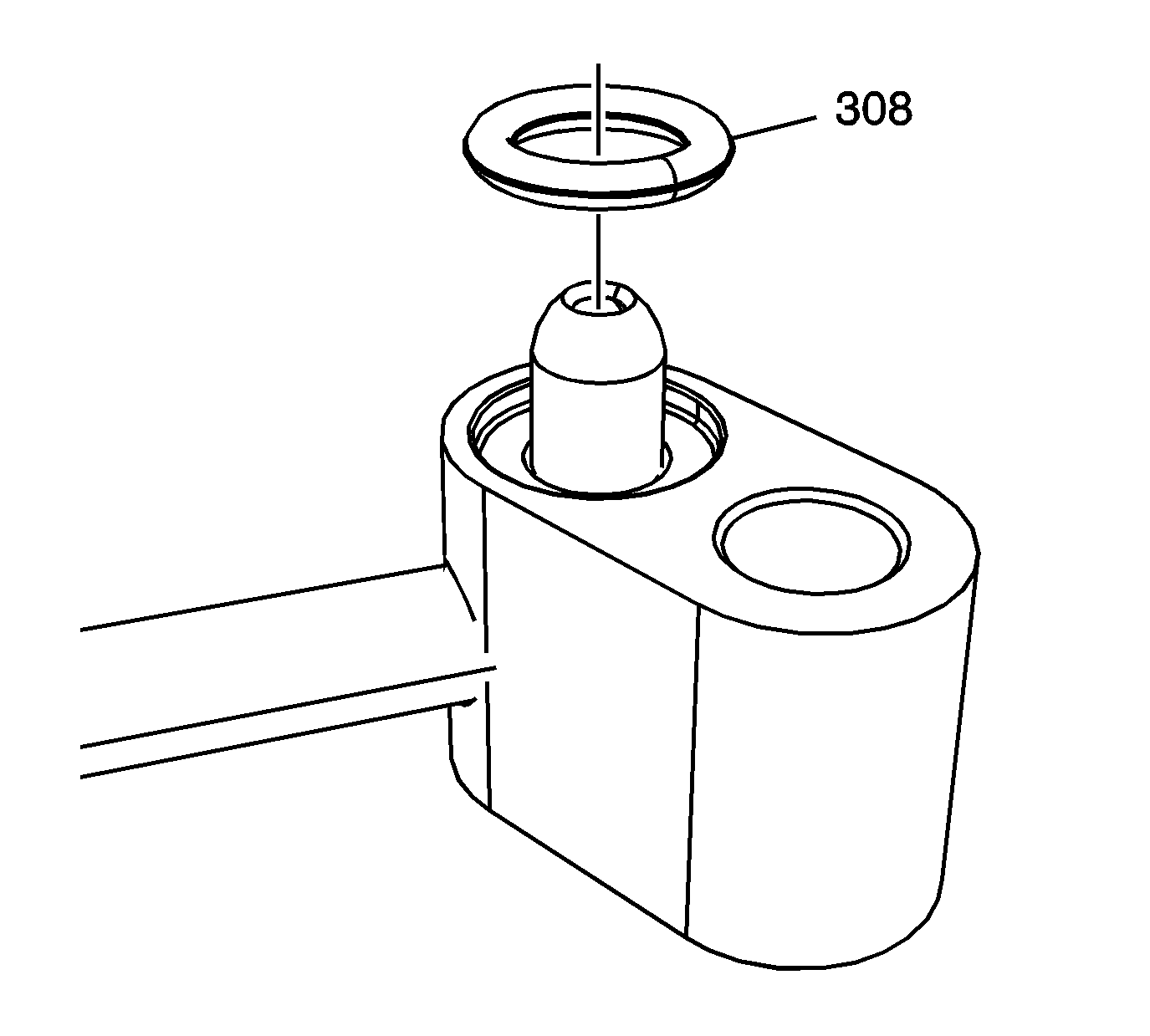

    Fig 1: View Of Coolant Air Bleed Pipe Seal
    GM1552485Courtesy of GENERAL MOTORS CORP.
    NOTE: Position the O-ring seal (308) onto the nipple portion of the pipe.
  1. Install the seals onto the coolant air bleed pipe and/or covers.

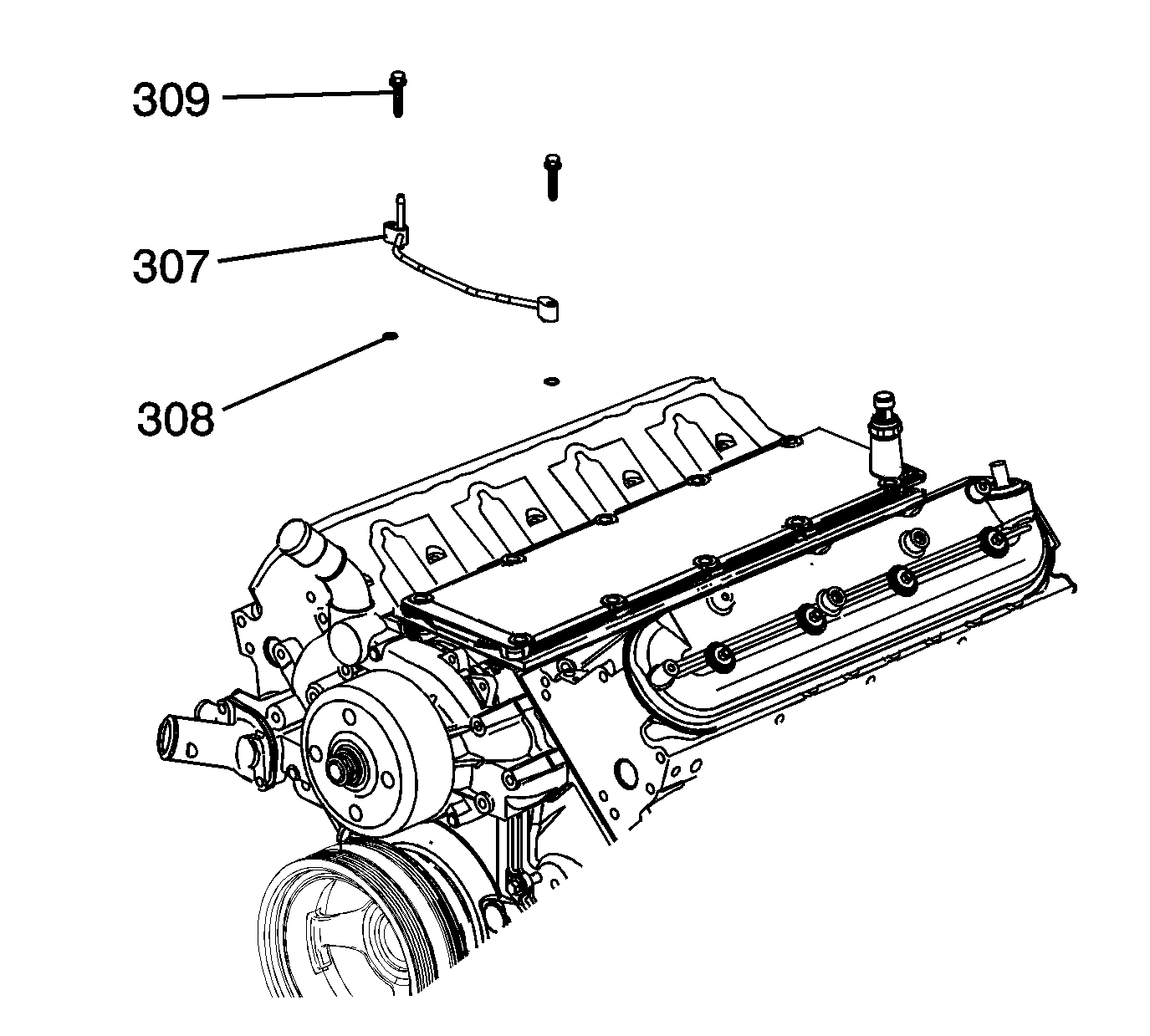

    2. Fig 2: Removing/Installing Engine Coolant Air Bleed Pipe
    GM1403313Courtesy of GENERAL MOTORS CORP.
  2. Install the coolant air bleed pipe (307) and seals (308) onto the cylinder heads.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the coolant air bleed pipe bolts (309) and tighten to 12 N.m (106 lb in).

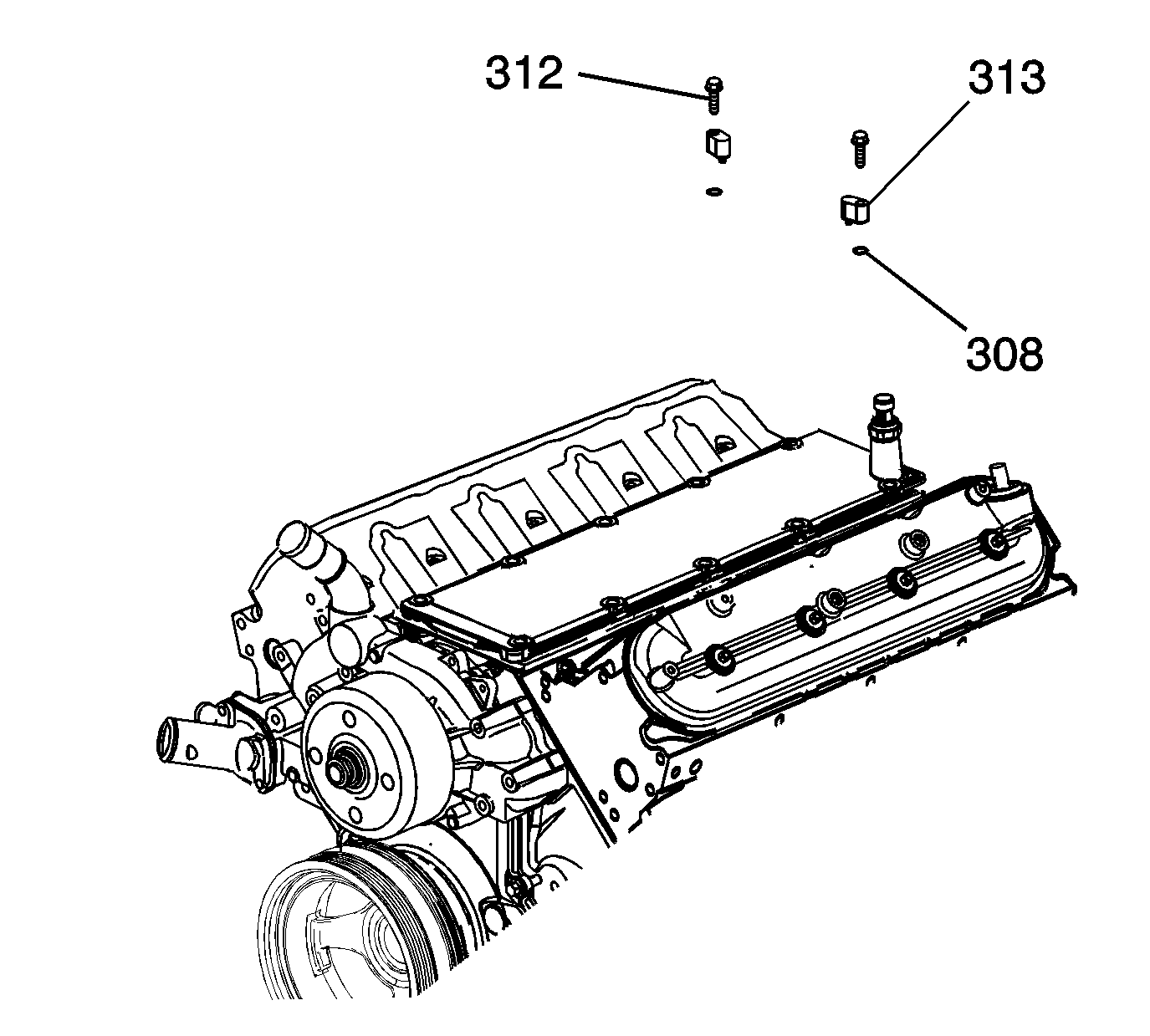

    4. Fig 3: Removing/Installing Coolant Air Bleed Cover Bolts
    GM1403314Courtesy of GENERAL MOTORS CORP.
  4. Install the coolant air bleed covers (313) and seals (308), if required.
  5. Install the coolant air bleed cover bolts (312), if required and tighten to 12 N.m (106 lb in).
    6. Fig 4: View Of Radiator Vent Inlet Hose & Clamps
    GM1699347Courtesy of GENERAL MOTORS CORP.
  6. Install the radiator vent inlet hose (2) to the coolant air bleed pipe fitting.
  7. Position the radiator vent inlet hose clamp (1) at the coolant air bleed pipe fitting.
  8. Install the air cleaner outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .
  9. Fill the cooling system. Refer to Cooling System Draining and Filling (Static Fill)  or Cooling System Draining and Filling (Vac N Fill) .
