Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

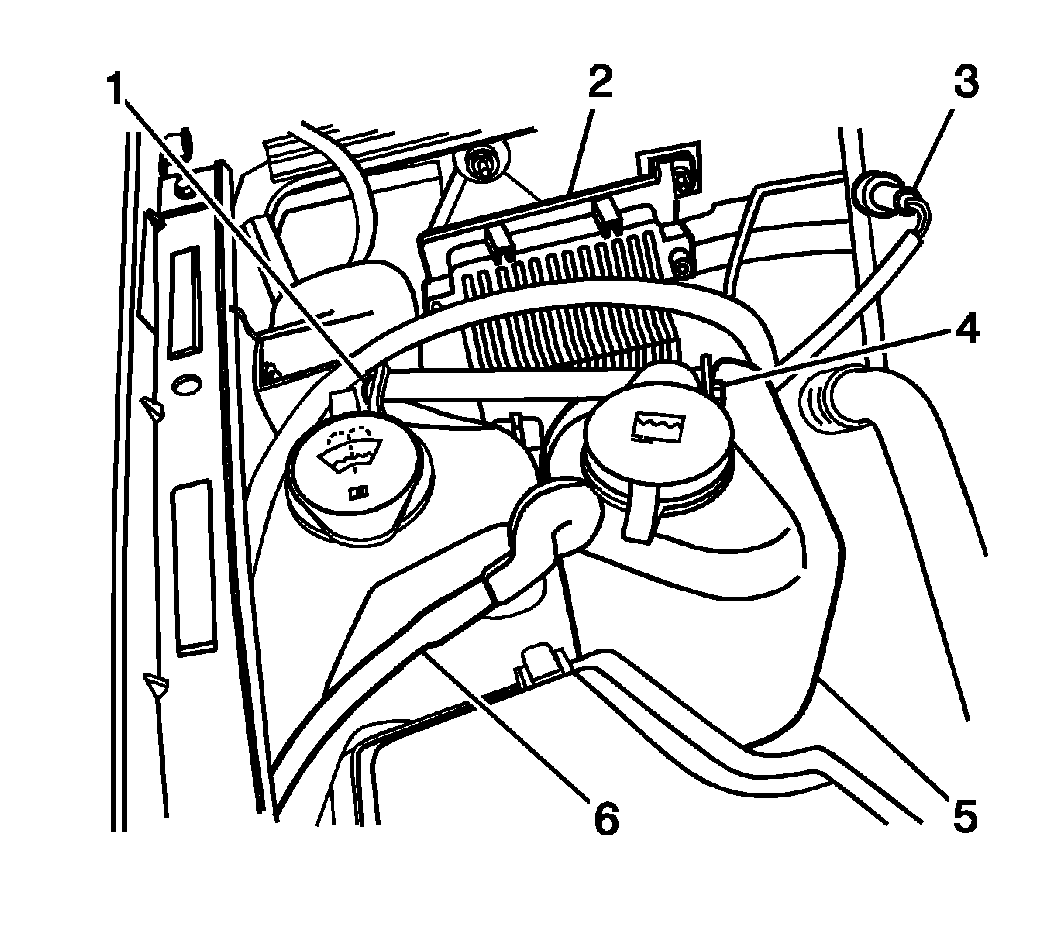

    Fig 1: View Of Coolant Recovery Reservoir & Components
    GM1273252Courtesy of GENERAL MOTORS CORP.
  1. Install the coolant recovery reservoir.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the retaining bolt to the front wheelhouse panel and tighten the bolt to 12 N.m (106 lb in).
  3. Install the radiator vent hose to the coolant recovery reservoir.
  4. Install the bolt (4) securing the coolant recovery reservoir (5) to the coolant recovery reservoir bracket.

    Tighten the nut to 10 N.m (88 lb in).

  5. Install the overflow hose (6) to the coolant recovery reservoir (5).
  6. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement or Air Cleaner Assembly Replacement .
  7. Fill the cooling system. Refer to Cooling System Draining and Filling (Static Fill)  or Cooling System Draining and Filling (Vac N Fill) .
