Removal Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

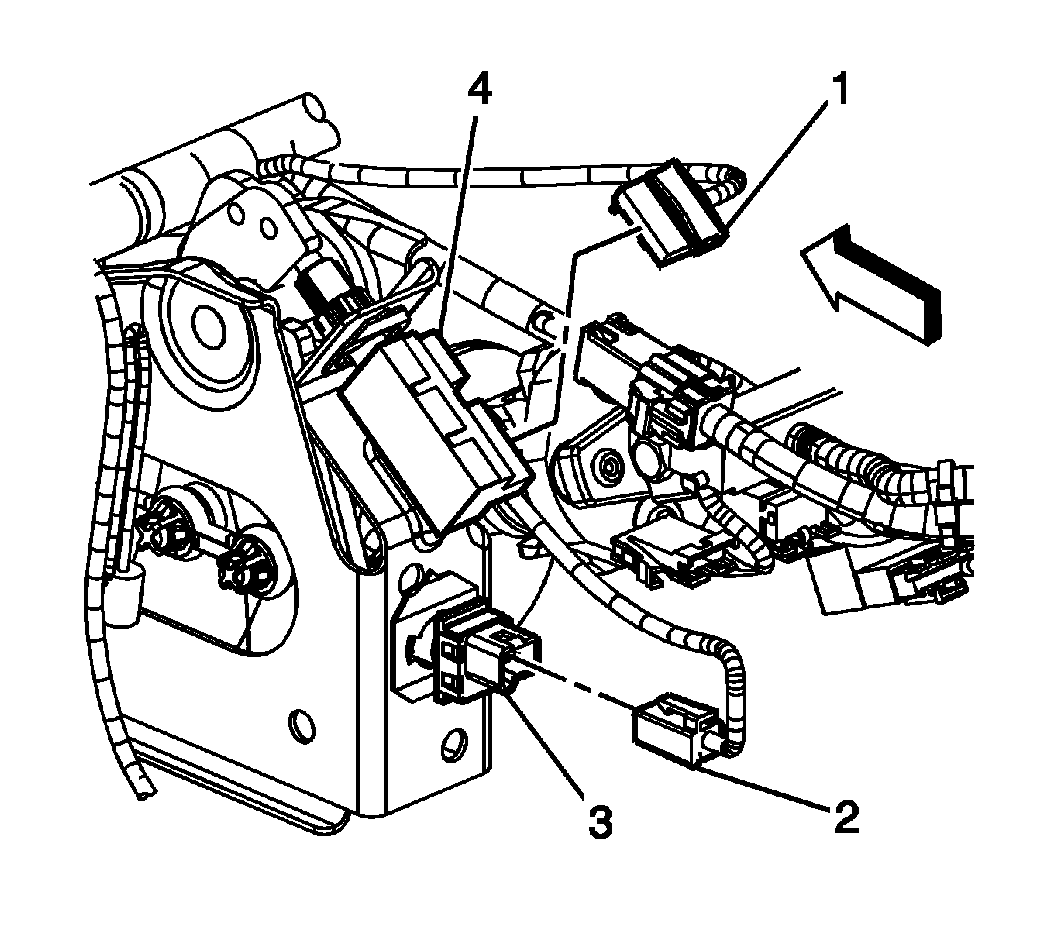

    Fig 1: Identifying Clutch Pedal Cruise Control Release Switch
    GM1560130Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the clutch release switch electrical connector (2).
    2. Fig 2: Exploded View Of Clutch Release Switch
    GM1302120Courtesy of GENERAL MOTORS CORP.
  2. Complete the following in order to remove the clutch release switch (4) from the clutch pedal bracket (1):
    1. Rotate the switch (4) counterclockwise.
    2. Pull the switch (4) from the retainer (5).
    3. Push the locking tabs inward to release the retainer (5).
