Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the switch near the bracket.
  2. Ensure the switch key-way is properly indexed to the plastic retainer.
  3. Install and adjust the switch. Refer to Stop Lamp Switch Adjustment .

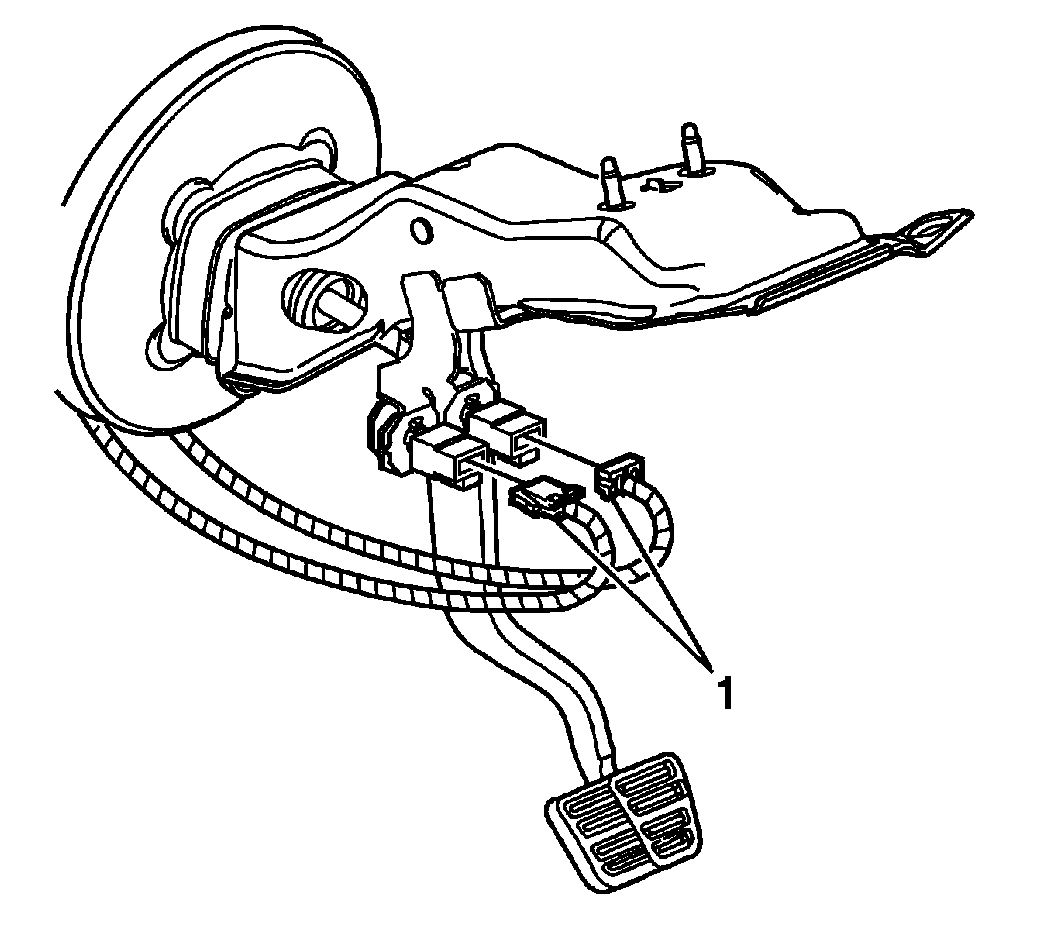

    4. Fig 1: View Of Stop Lamp Electrical Connectors
    GM1607450Courtesy of GENERAL MOTORS CORP.
  4. Connect the stop lamp switch electrical connectors (1).
  5. Check the switch for proper operation.
