Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

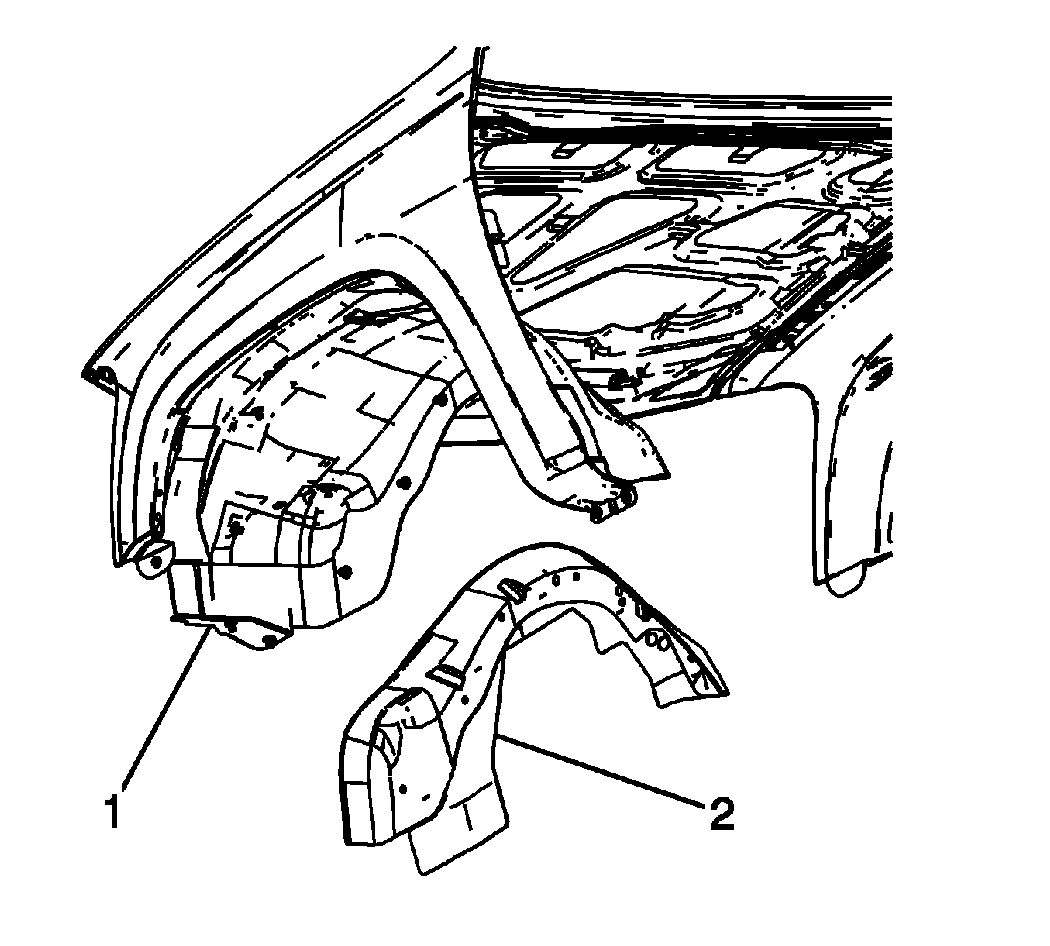

    Fig 1: View Of Wheelhouse Liner
    GM1386412Courtesy of GENERAL MOTORS CORP.
  1. Install the outer wheelhouse liner (2) to the vehicle.
  2. Install the rearward push-pin into the outer wheelhouse liner.
  3. Install the remaining push-pins into the outer wheelhouse liner.
  4. Install the inner wheelhouse liner to the vehicle.
  5. Install the push-pins into the inner wheelhouse liner.
  6. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  7. Lower the vehicle.
