Antilock Brake System Schematics

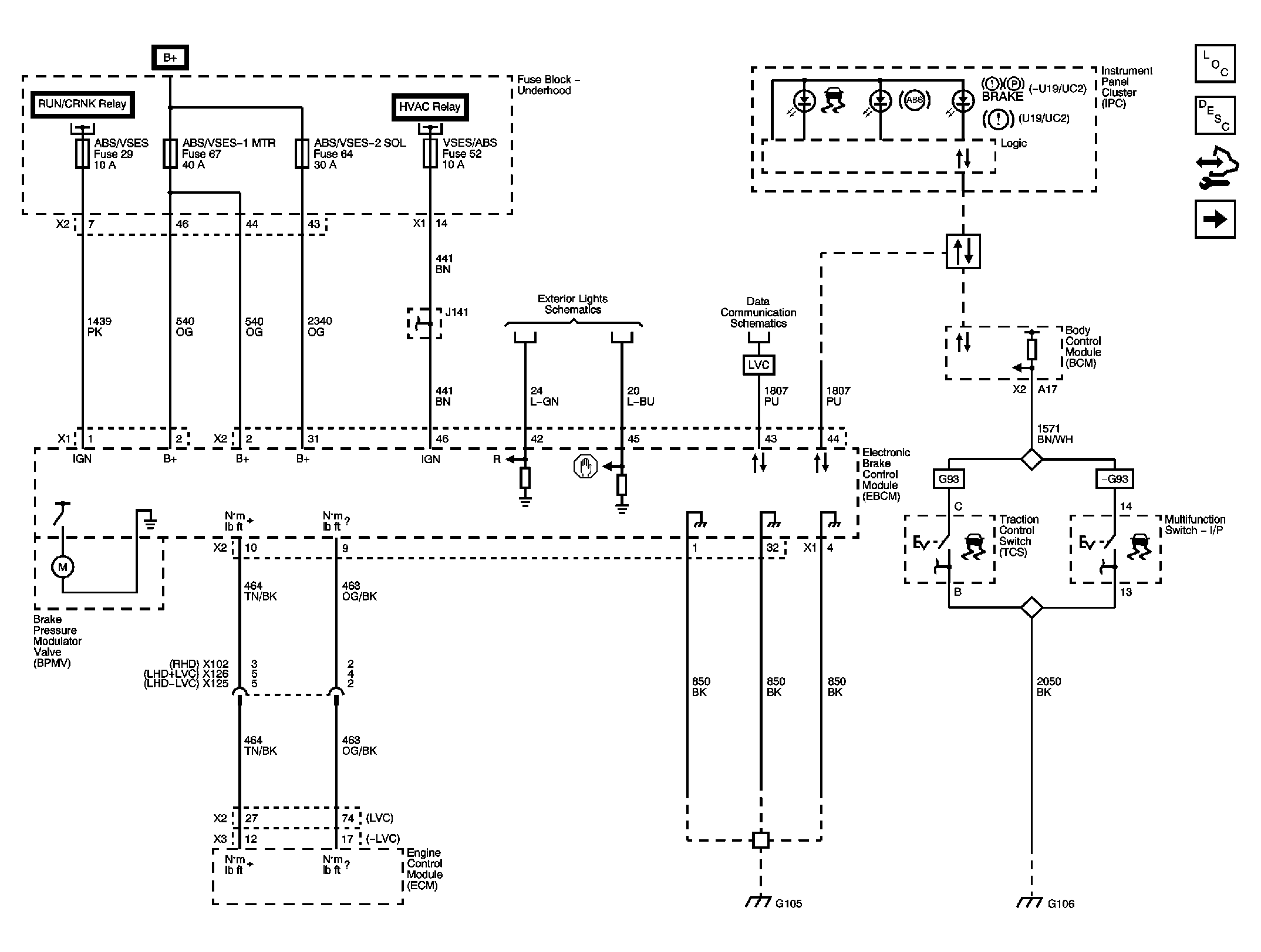

Fig 1: Power, Ground, Serial Data, and Traction Controls
GM2243941Courtesy of GENERAL MOTORS CORP.

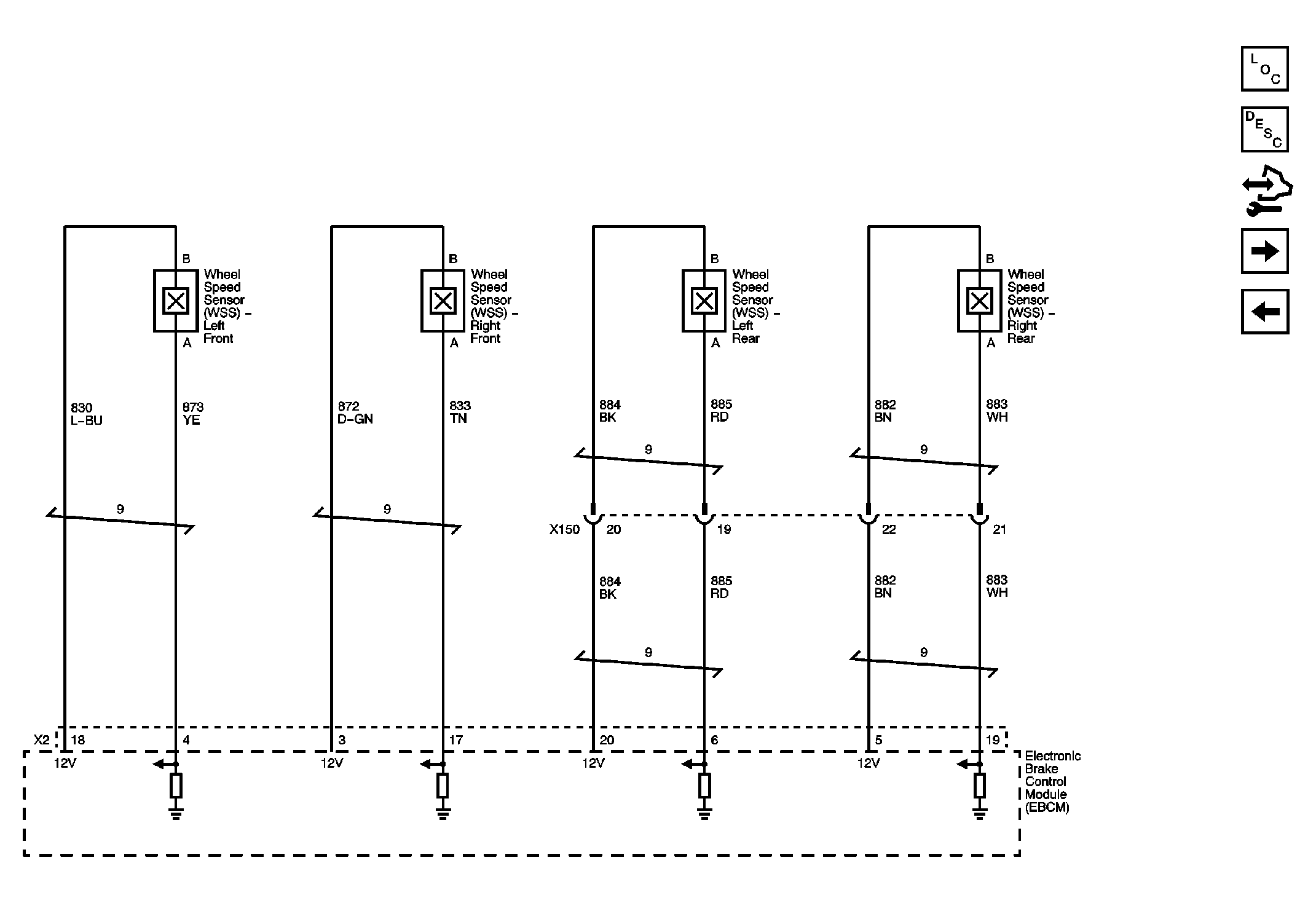

Fig 2: Wheel Speed Signals
GM2243947Courtesy of GENERAL MOTORS CORP.

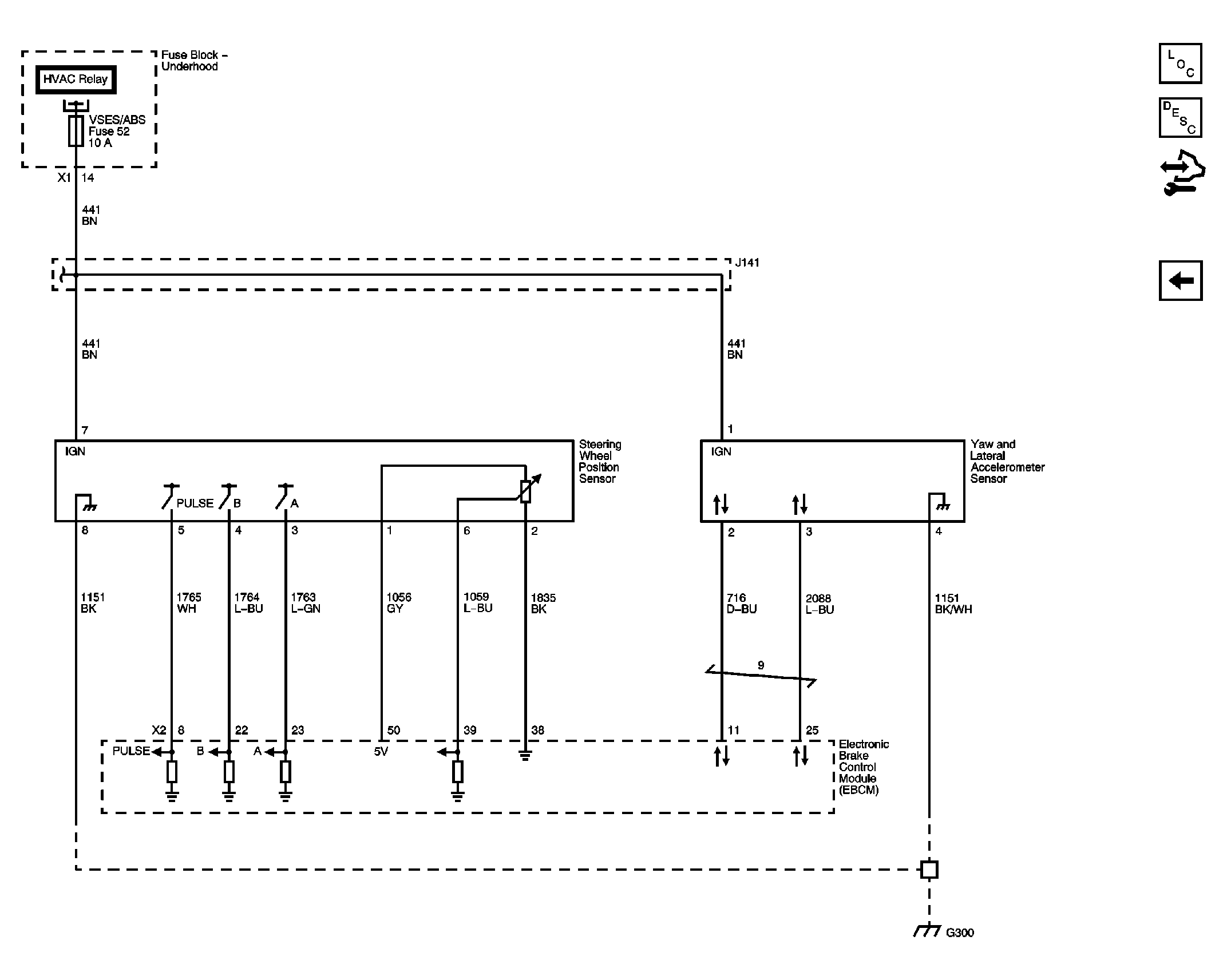

Fig 3: Vehicle Stability
GM2243949Courtesy of GENERAL MOTORS CORP.
