Driveline Disassembled Views

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

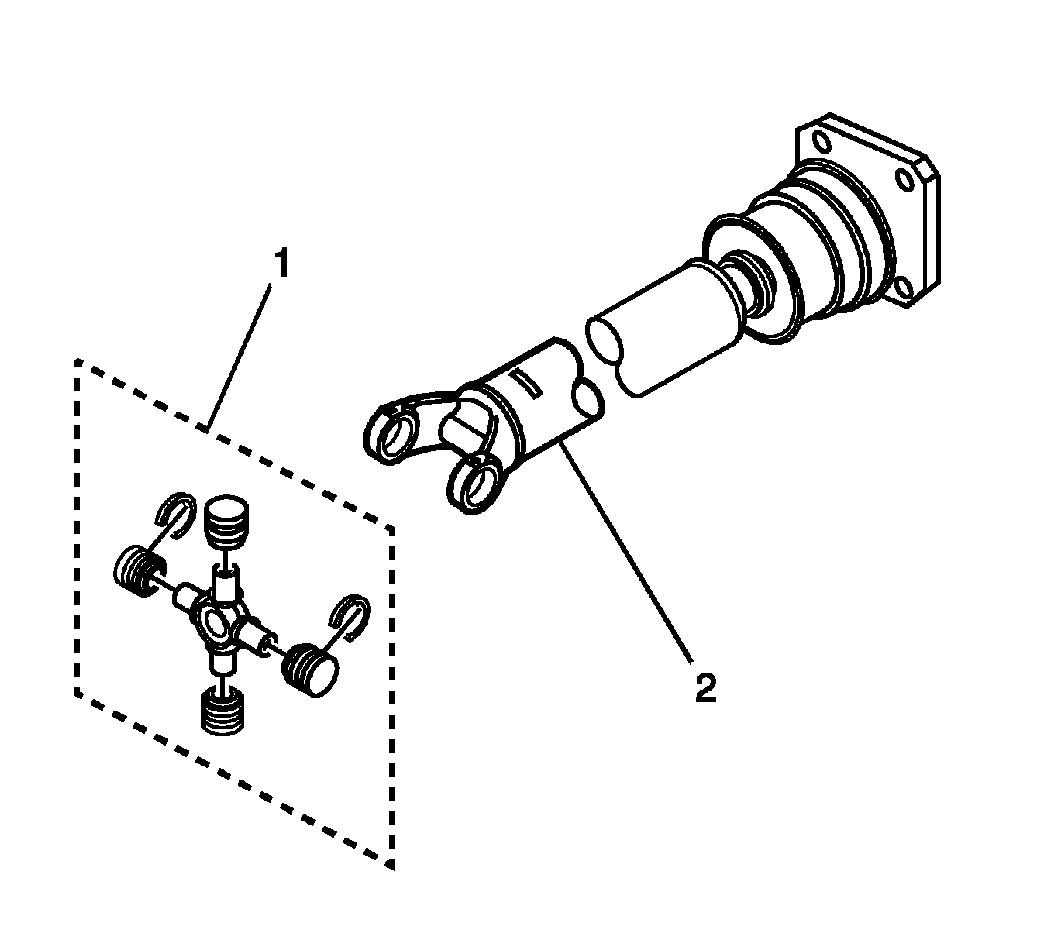

Fig 1: Front Drive Propeller Shaft

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Universal Joint Spider Assembly
2	Propeller Shaft Tube Assembly

Fig 2: One-Piece Propeller Shaft

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Propeller Shaft Slip Yoke
2	Propeller Shaft Universal Joint Spider Bearing Retainer Ring
3	Propeller Shaft Universal Joint
4	Propeller Shaft Tube
5	Propeller Shaft Universal Joint Spider Bearing Retainer Ring
6	Propeller Shaft Universal Joint
7	Propeller Shaft Bearing Retainer
8	Propeller Shaft Bearing Retainer Bolt

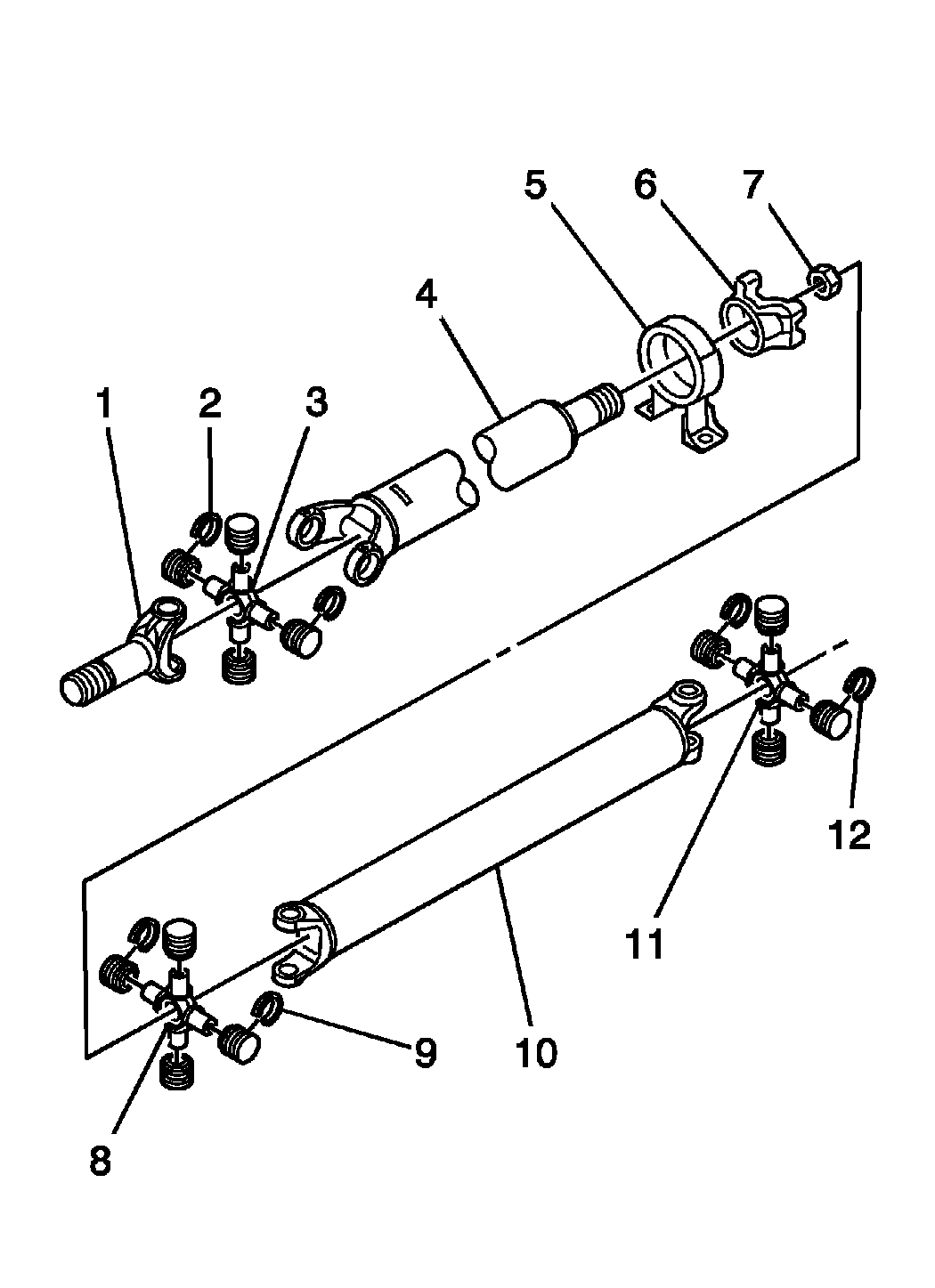

Fig 3: Two-Piece Propeller Shaft

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Propeller Shaft Slip Yoke
2	Propeller Shaft Universal Joint Spider Bearing Retainer Ring
3	Propeller Shaft Universal Joint and Bearing
4	Propeller Shaft Tube
5	Propeller Shaft Center Bearing
6	Propeller Shaft Yoke
7	Propeller Shaft Yoke Retaining Nut
8	Propeller Shaft Universal Joint and Bearing
9	Propeller Shaft Universal Joint Bearing Retaining Ring
10	Propeller Shaft Tube
11	Propeller Shaft Universal Joint and Bearing
12	Propeller Shaft Universal Joint Bearing Retaining Ring
