Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

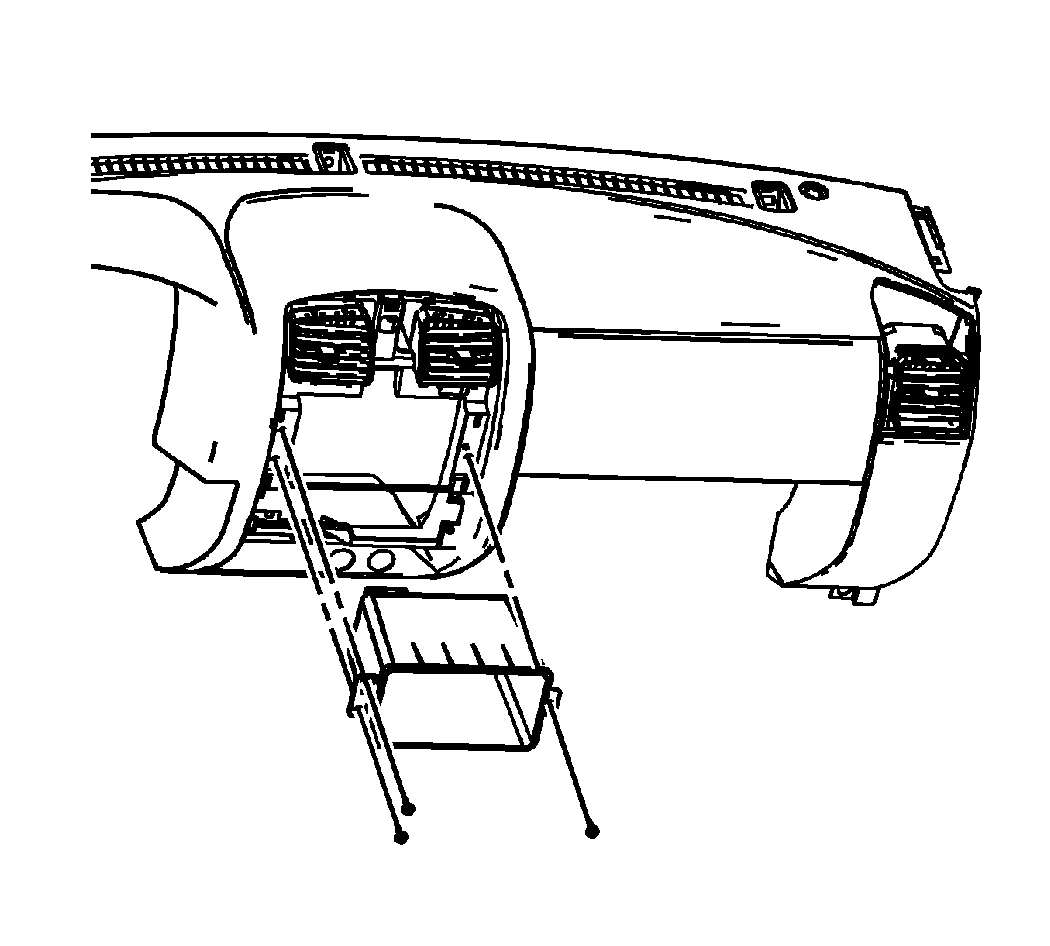

    Fig 1: View Of Radio Box
    GM1251727Courtesy of GENERAL MOTORS CORP.
  1. Install the box to the I/P.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the 3 screws that retain the box to the I/P. Tighten the screws to 2 N.m (18 lb in).
  3. Install the accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement .
