Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

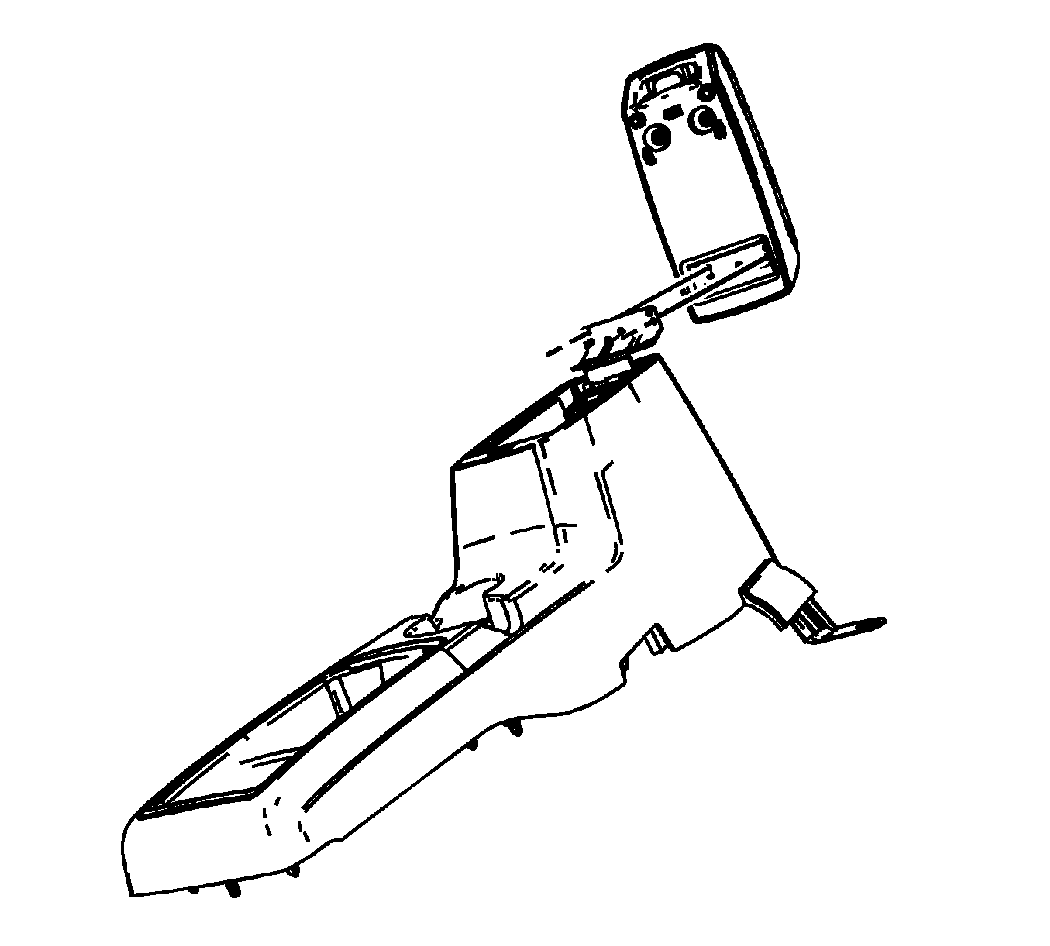

    Fig 1: View Of Armrest
    GM1333511Courtesy of GENERAL MOTORS CORP.
  1. Position the armrest to the console.

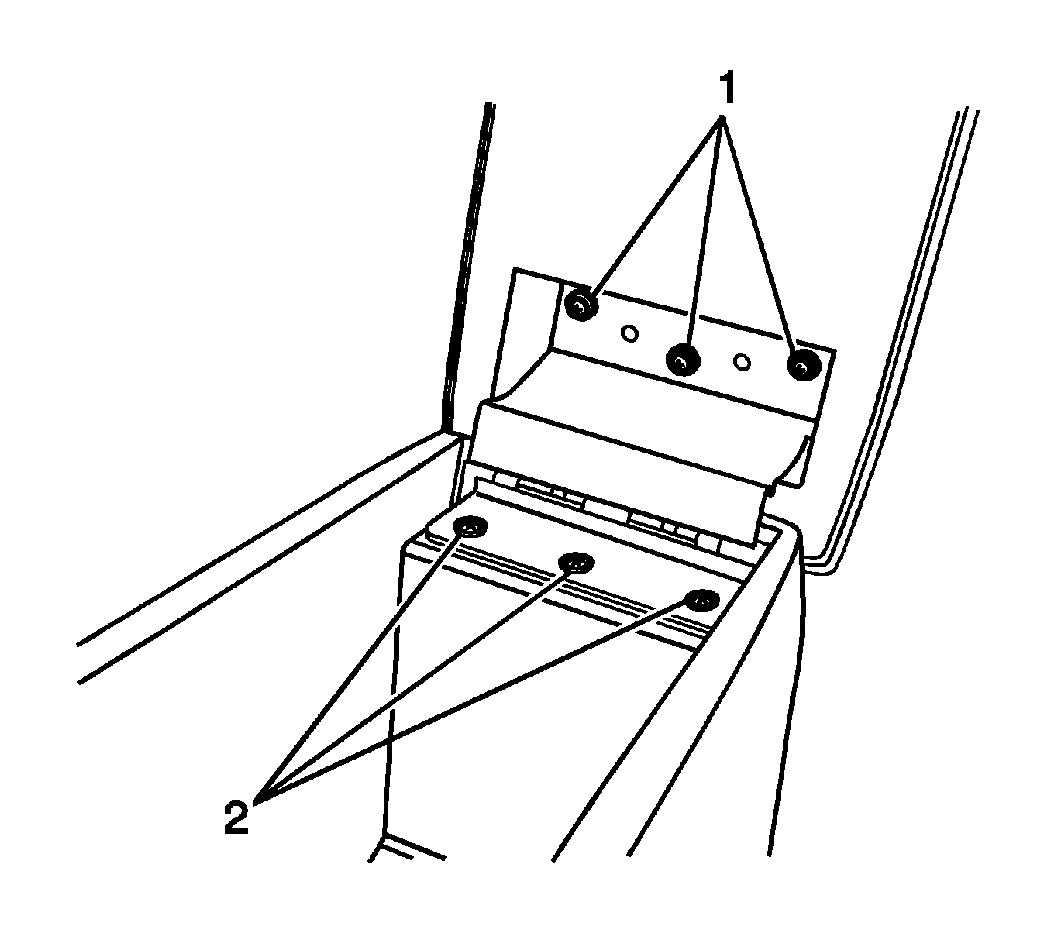

    2. Fig 2: View Of Lower Hinge
    GM1333512Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  2. Install the 3 screws (1) retaining the armrest to the upper hinge. Tighten the screws to 1.5 N.m (15 lb in).
  3. Close the armrest.
